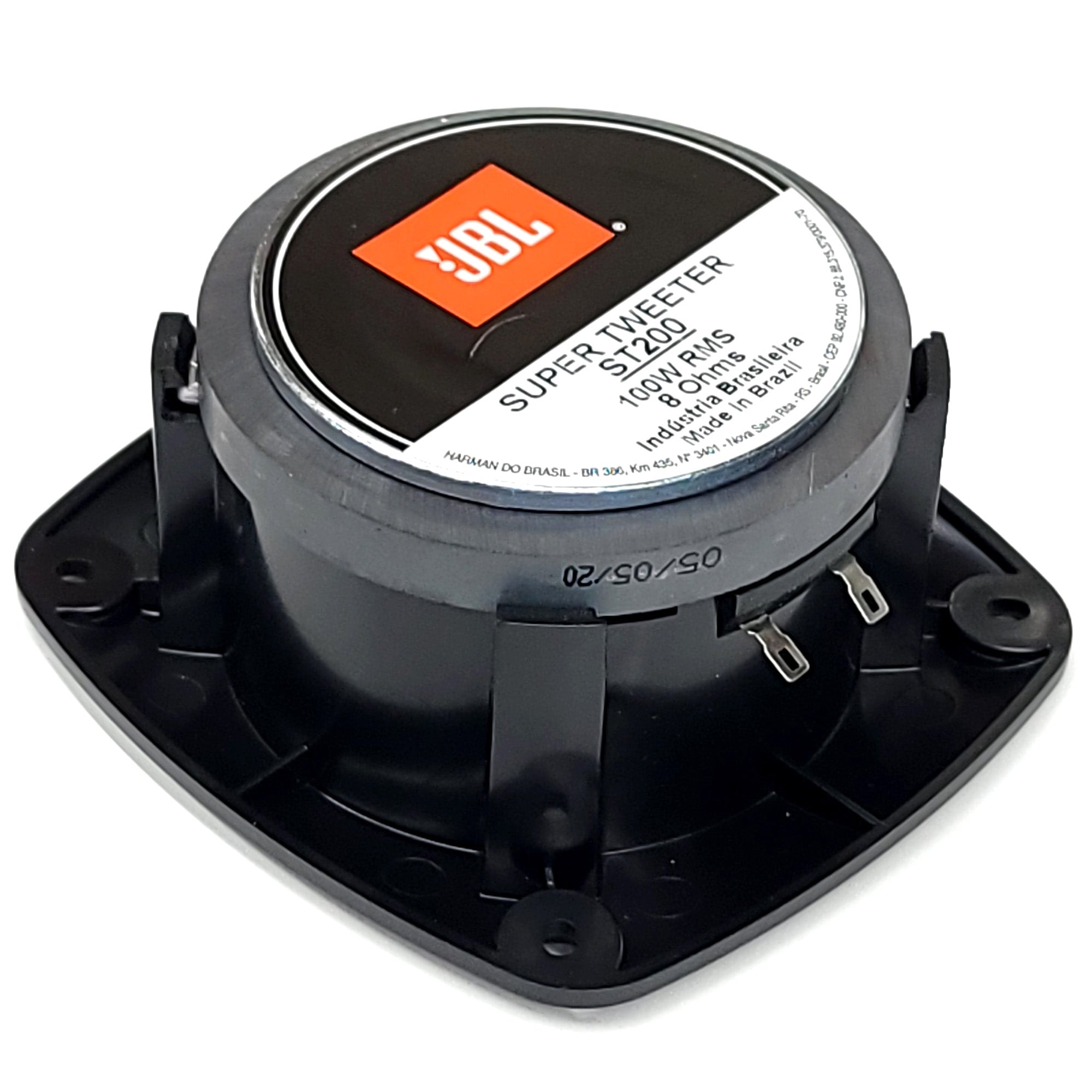

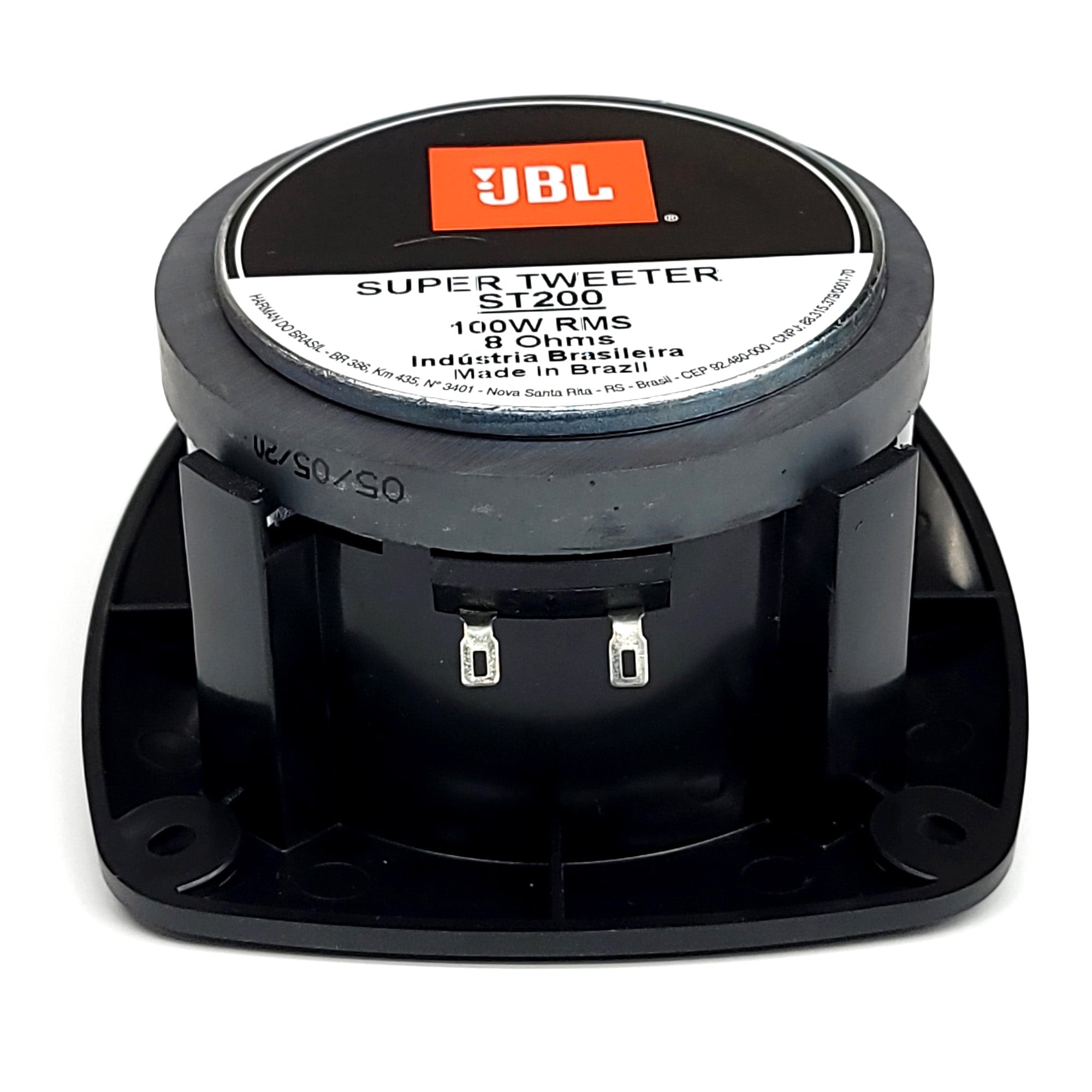

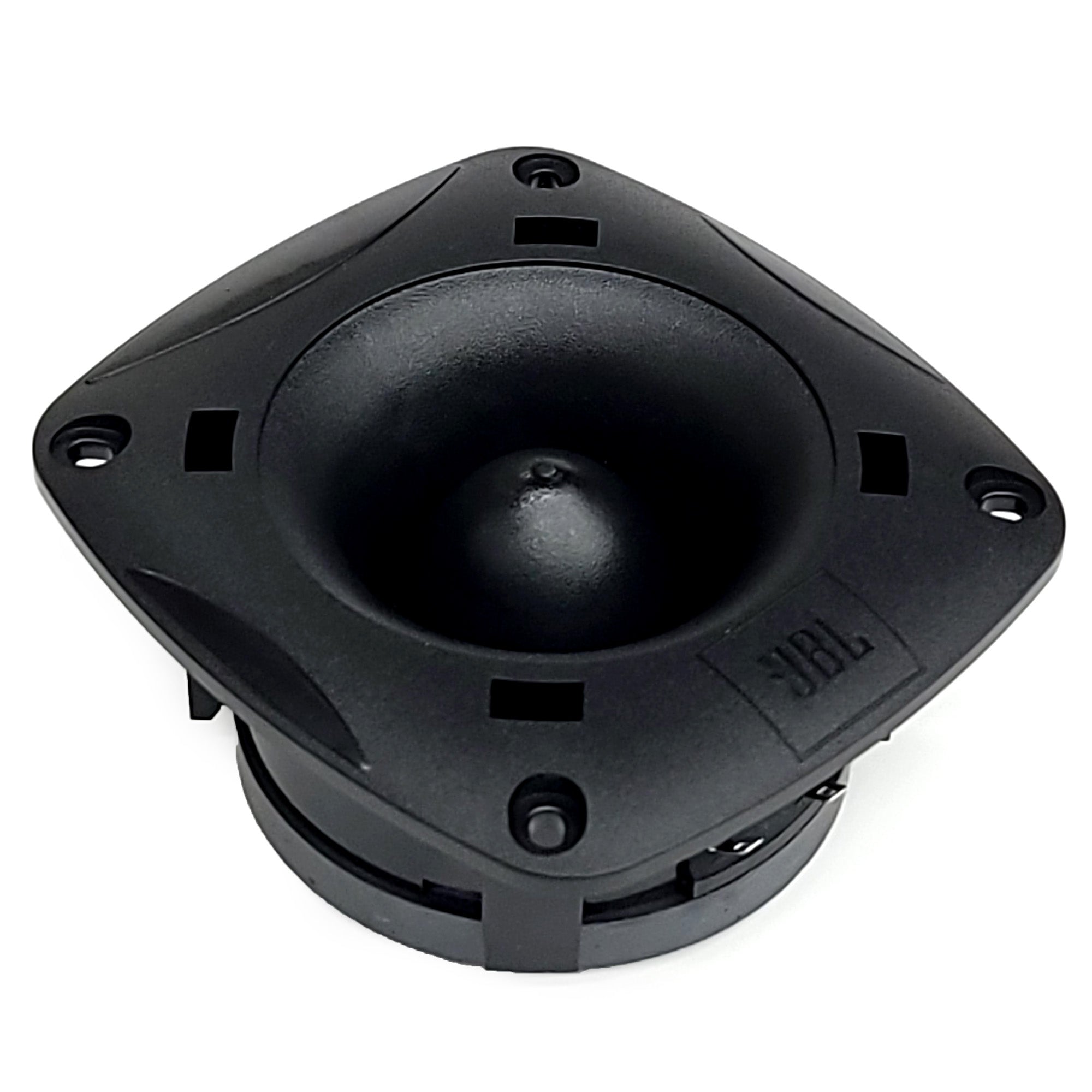

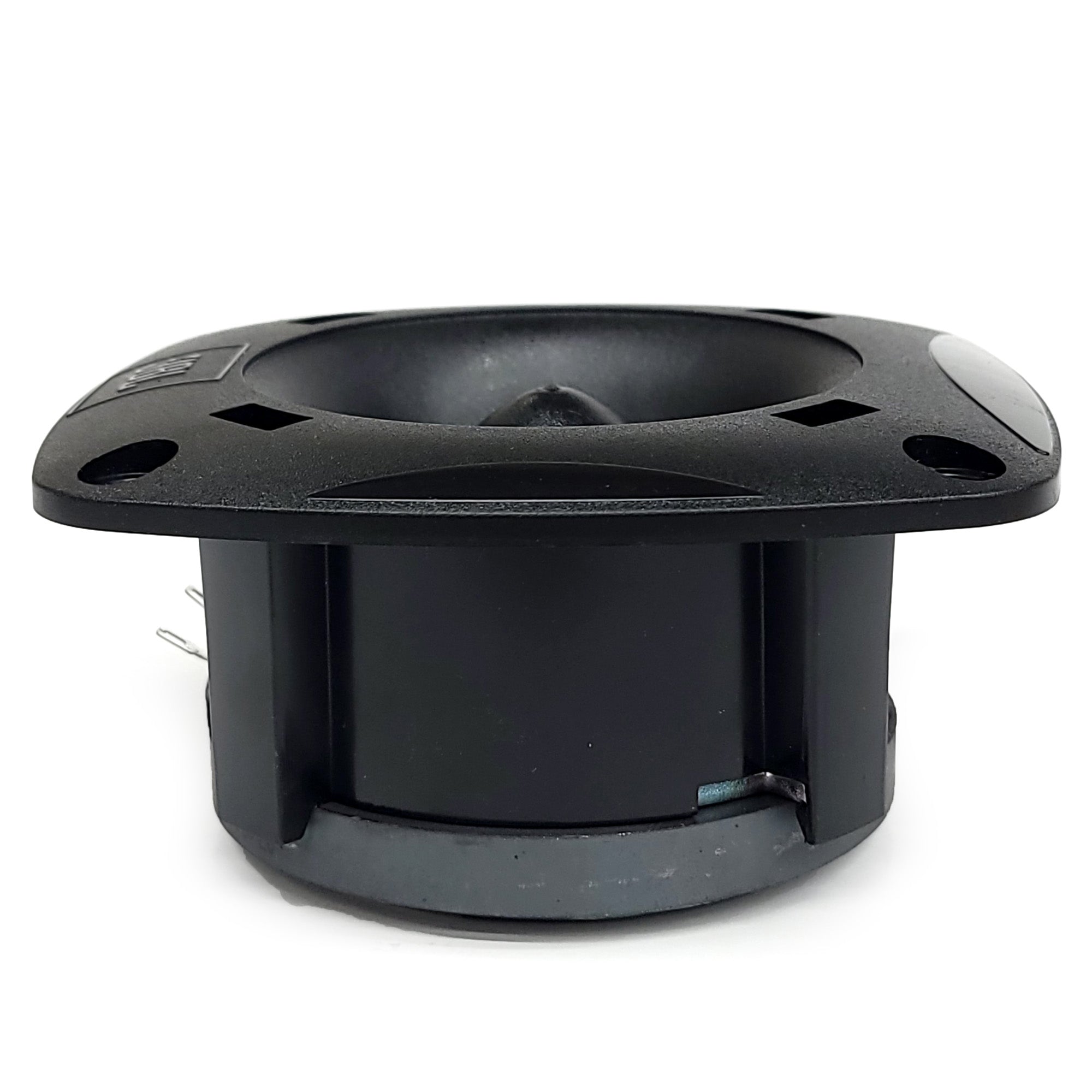

JBL ST200 super tweeter offers outstanding detail and clarity at the highest frequencies, without harshness. The ST200 may be used individually in lower power systems, or arrayed for increased coverage and SPL in higher power systems. Thanks to its bullet-shaped horn design, the ST200 offers a longer throw 40° x 40° dispersion, and the plastic injected housing is stable and durable. The phenolic annular diaphragm is long-lasting, cost-effective, and more natural-sounding than metallic diaphragms. The use of high-temperature materials and adhesives improves power handling and produces exceptionally high acoustic output.
Product Features
Perfect for large rooms, clubs, auditorium, and theaters
High output/long throw
ABS housing
Durable phenolic diaphragm
Well-controlled 40° conical dispersion
High temperature adhesives and materials for increased power handling
Specifications: • Power handling: 100 watts RMS• Dispersion: 40° H x 40° V • VCdia: 1.75" • Impedance: 8 ohms • Frequency response: 2,000-20,000 Hz • SPL: 105 dB 1W/1m • Magnet weight: 7.72 oz. • Dimensions: 4.88" H x 4.53" W x 2.4" D. • Baffle cutout diameter (front mount): 4" • Weight: 1.65 lbs.
