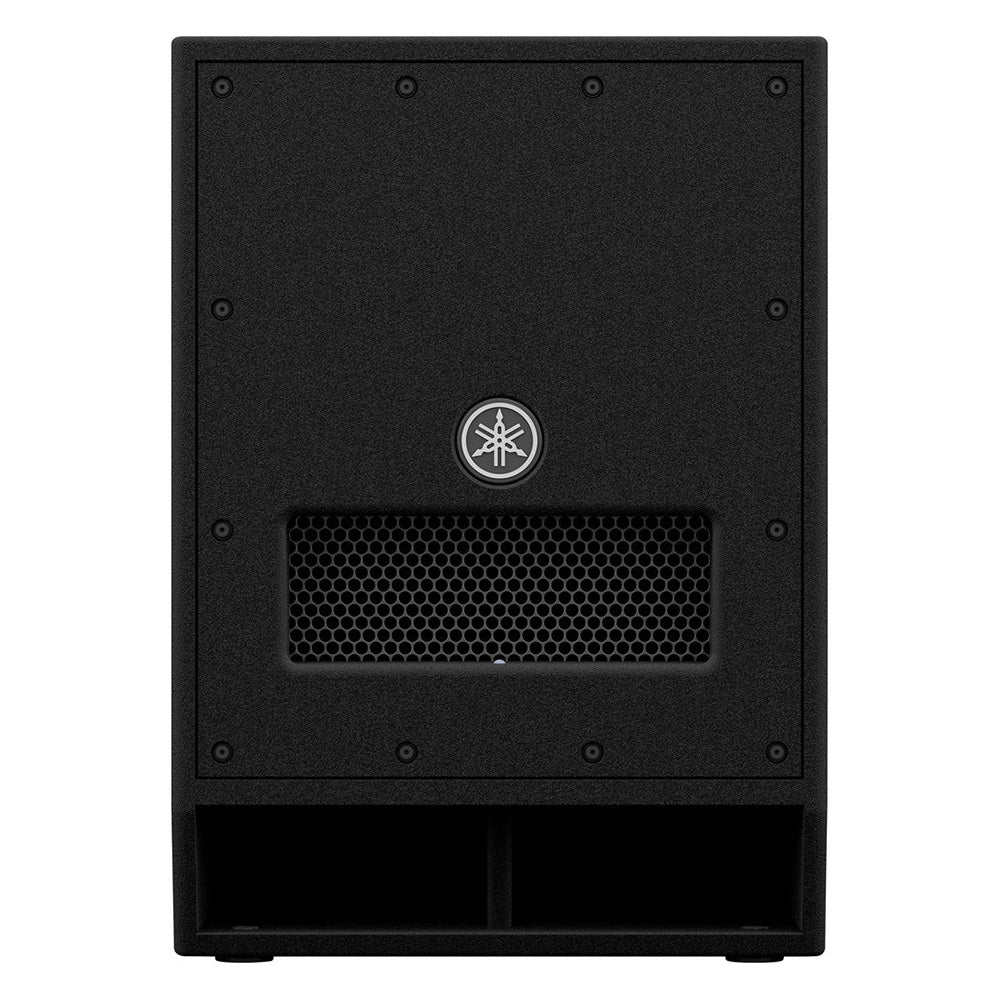

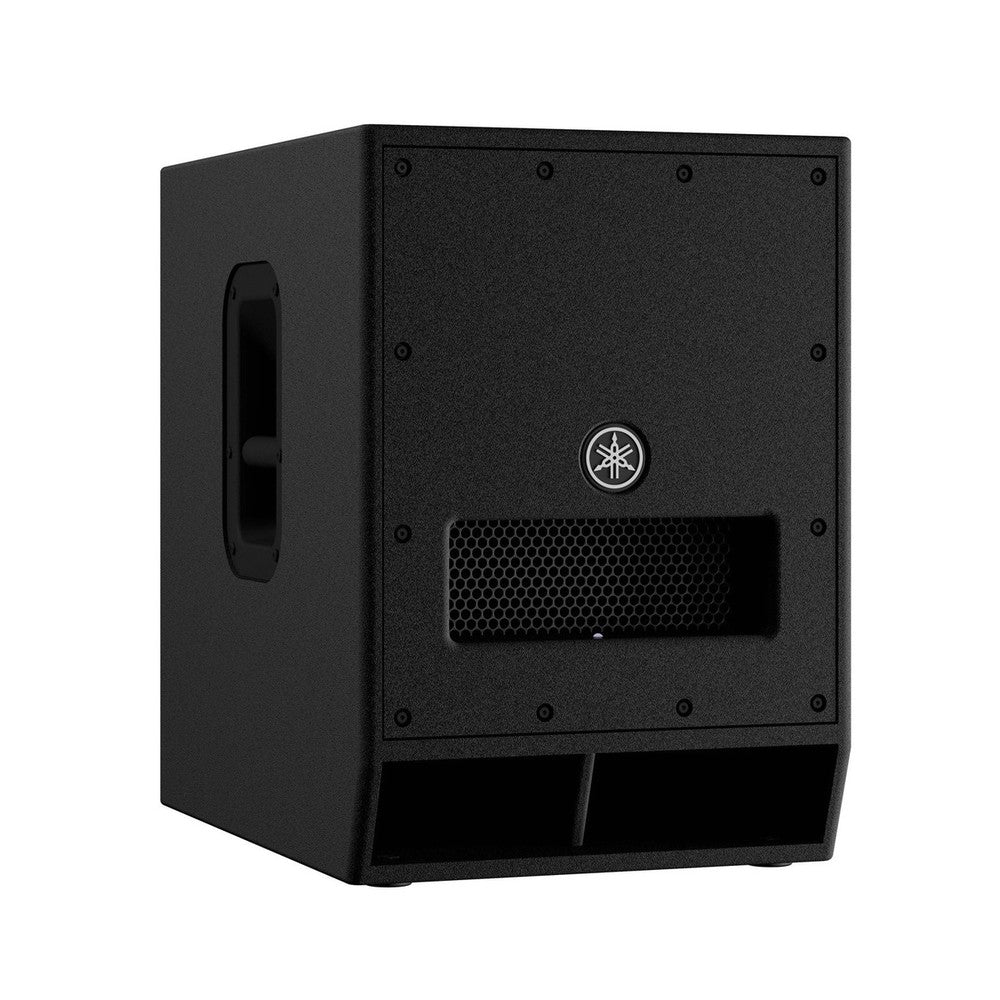

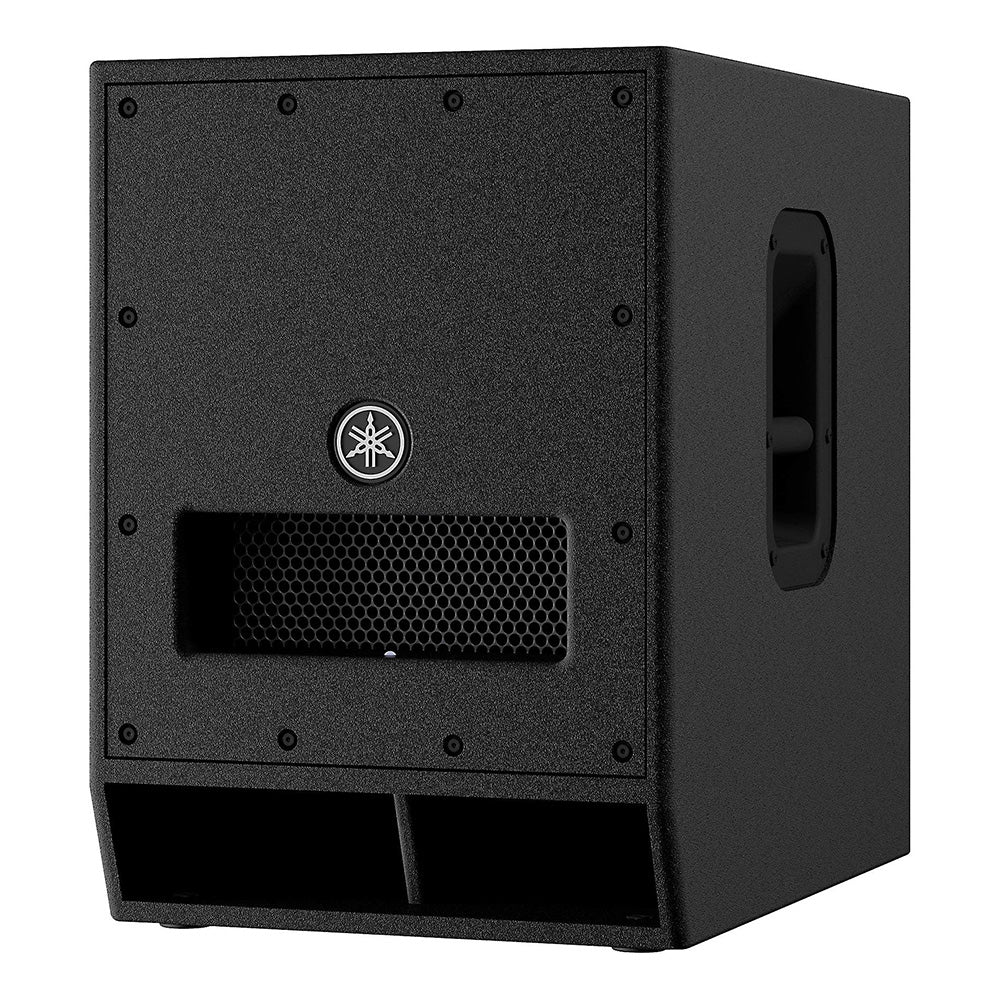

DXS12mkII Powered Subwoofer from Yamaha features a high-efficiency Class-D amplifier and a woofer housed in a sturdy plywood band-pass type enclosure. It can deliver up to 1020W of distortion-free power with natural clarity. It can be used for reliable bottom-end management for bass performance in sound reinforcement applications.
The powered subwoofer features Yamaha's state-of-the-art DSP, protection functions, and flexible crossover control allowing for seamless compatibility with a vast lineup of full-range speakers. Built with two 3-pin XLR inputs and two thru 3-pin XLR connectors, this DXS12mkII Powered Subwoofer delivers a tight, impressive bass with outstanding depth and high-power output.
The DXS high-performance Class-D amplifier produces up to 1020W of power.
The DXS12mkII features a 2.5" voice coil magnet.
All DXS series enclosures incorporate a band-pass design that reduces unwanted vibration and noise that could otherwise sabotage your sound.
Enclosure exteriors are covered with a durable polyurea coating for high-damage resistance. They protect the cabinet from scratches, bumps, or severe weather conditions, maintaining a professional appearance for years to come.
Just as impressive as the high-output power is the compact portability and lightweight construction that houses the DXS series subwoofer.
For additional flexibility configuring your speakers, the DXS series comes equipped with a dual pole socket that accommodates both 35mm diameter speaker poles and M20 screws.
Product Specifcations
PA Speaker
Configuration Active Subwoofer
Total Power Capacity 1020 W Peak
800 W RMS
Drivers
LF Driver 1 x 12" / 30 cm Woofer
LF Voice Coil 2.5" / 6.35 cm
Performance
Frequency Range 42 Hz to 150 Hz
Maximum SPL 134 dB
Connectivity

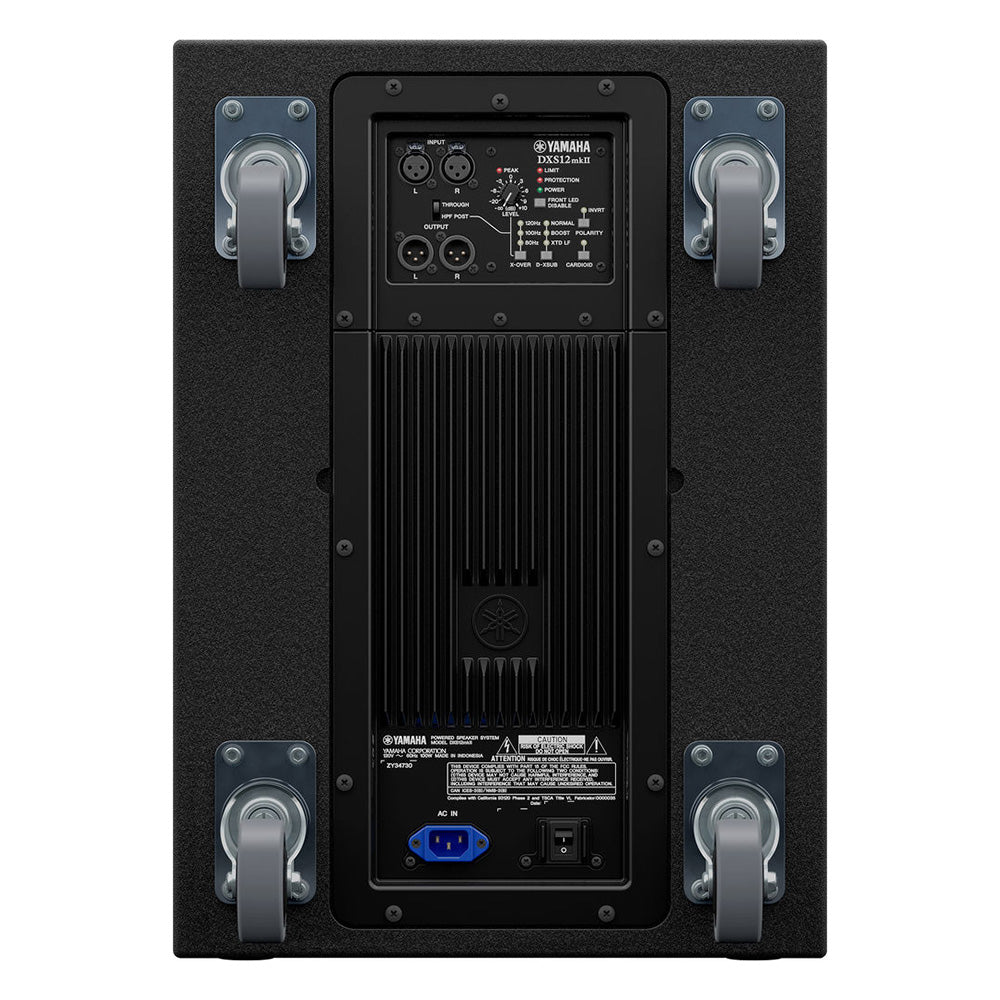

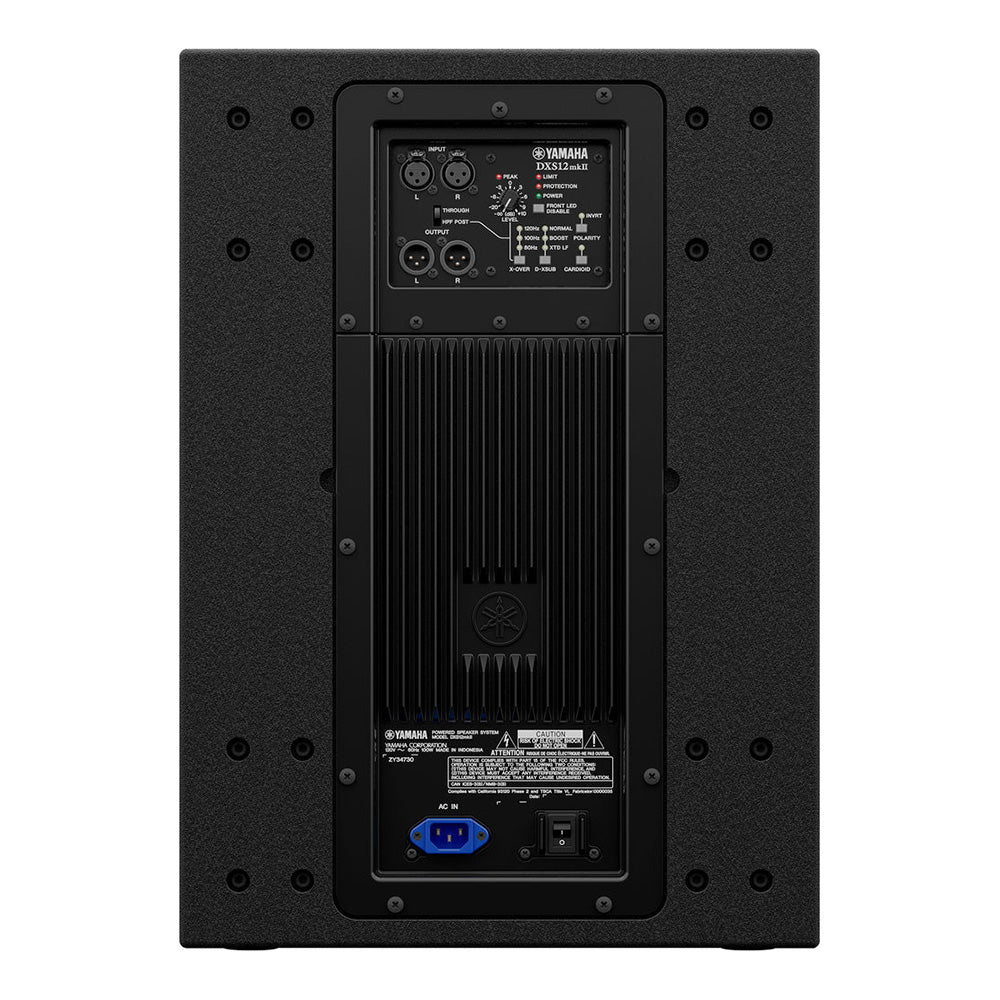

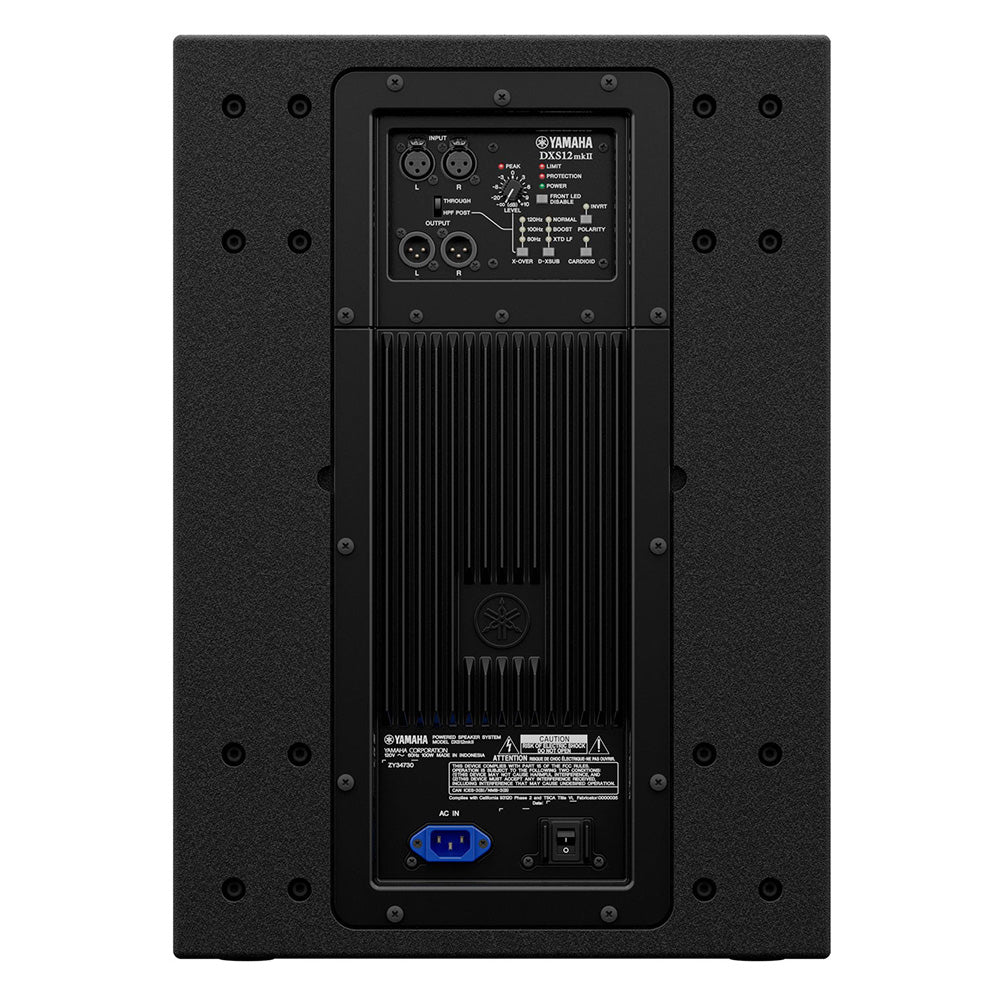

Audio I/O 2 x XLR 3-Pin Female Input
2 x XLR 3-Pin Male Thru
Power
AC Input Power 100 to 240 VAC, 50 / 60 Hz
Power Consumption 100 W
Physical
Mounting 1 x 1.4" / 35 mm Pole Socket
1 x M20
Cooling Convection
Construction Material Plywood
Dimensions 15.8 x 22.3 x 22.4" / 400 x 567 x 570 mm
Weight 66.1 lb / 30 kg
Packaging Info
Package Weight 74.6 lb
Box Dimensions (LxWxH) 28 x 26 x 19"
