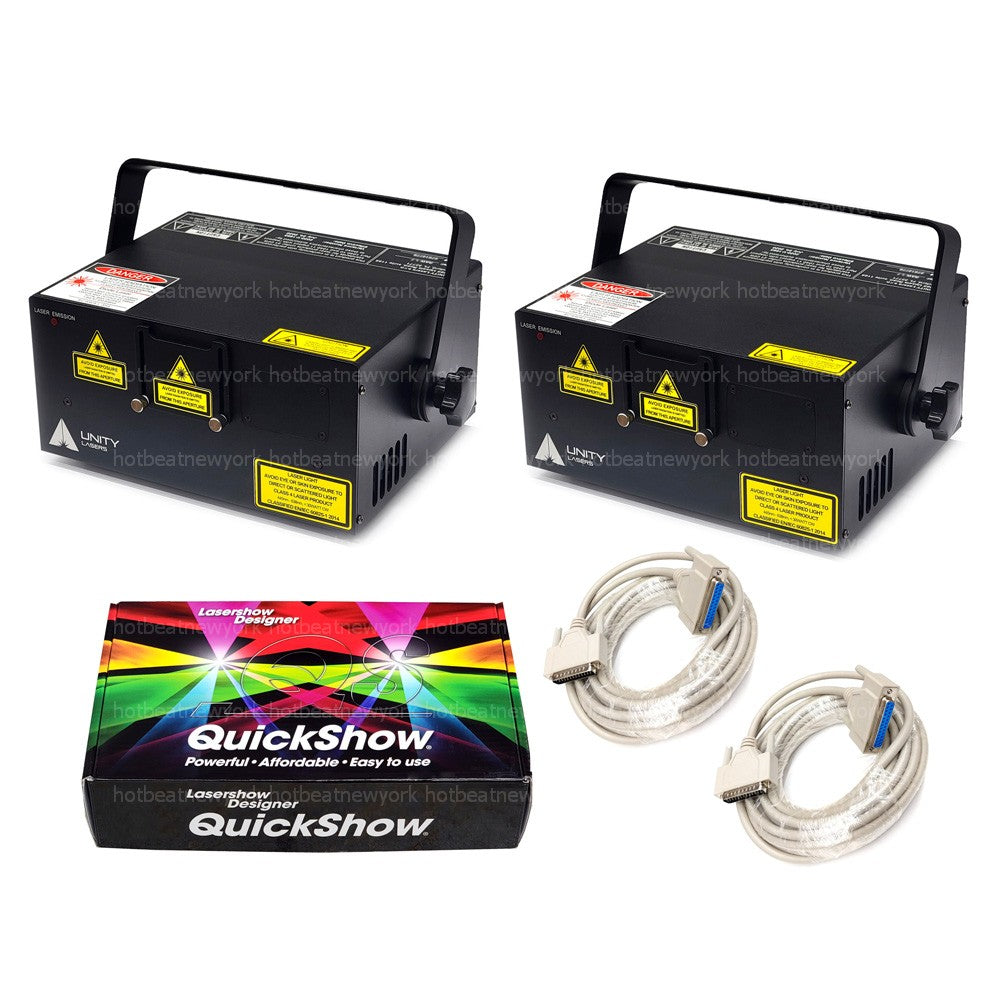

2 x Pangolin Unity RAW 1.7 Watt RGB Laser Show + 1 x QuickShow + 2 x 25ft ILDA

2 x Pangolin Unity RAW 1.7 Watt RGB Laser Show + 1 x QuickShow + 2 x 25ft ILDA

Regular price
$ 3,229.97
Sale price
$ 3,099.98
Unit price

The Unity RAW 1.7 is a full-color RGB, diode-based laser systems, designed for clients who need impactful aerial beam effects, with the ability to also produce laser graphics, logos, and text.

Applications: The RAW Series is perfect for DJs, nightclubs and entertainment venues, where you need an impactful and easy to use laser system, at an economical price point. It is suitable for venues up to 2,000 people in capacity.

Control: Raw Series lasers are incredibly easy to setup and use. And can easily be controlled via ILDA, or via DMX / ArtNET (with Pangolin software). The Raw1.7 RGB Laser fixture required to us a Laser Software to operate and We recommend using the Pangolin FB3QS or FB4 control hardware, with QuickShow software.
Try a FREE demo, and see it in action here: http://www.pangolin.com/quickshow.

What’s in the box: The RAW 1.7 includes all of the accessories you'll need right out of the box.

RAW 1.7 Laser Projector
ILDA cable
E-stop safety system and E-stop cables
Safety Interlocks
Safety Keys

Product Features

Product Name: RAW 1.7
Type: full-colour, semiconductor diode laser system
Guaranteed optical output: >1700mw
Suitable for: indoor/small outdoor laser shows and laser graphic displays
Control signal: ILDA
Scanning system: 25kpps @ 8°
Safety: fully complies with the latest EN 60825-1, and FDA regulations
Weight: 7kg
Package includes: power cord, 10M ILDA signal cable, E-STOP box with 10M cable, set of 4 safety keys, 5-pin interlock bypass plug, user guide.
R | G | B [mW]: 400 | 600 | 1000
Beam size [mm]: 5 x 3
Beam divergence: <1.1mrad [full angle]
Modulation: analog, up to 50kHz
Power requirements: 100-230V/50Hz
Consumption: max. 90W
Operation temperature: 10-40 °C
Ingress protection rating: IP54
System features: All the adjustments such as power output of each colour, X & Y axes invert, X & Y size and position, etc. Scanning system protection, daisy chain of emergency STOP signal for multiple system "one-hit" operation.
Laser safety features: Keyed interlock, emission delay, magnetic interlock, scan-fail safety, mechanical shutter, adjustable aperture masking plate.
*Due to Advanced Optical Correction technology used in our laser systems the optical power output of each laser colour within the system may slightly differ from the specification of respective laser module(s) installed. This does not affect the total guaranteed power output.
Dimensions: Length: 238
Width: 192
Height: 114

Pangolin QuickShow is the best beginner-to-intermediate software ever created for laser control. By experience programming under this software to control green, multicolor and full spectrum RGB lasers.

QuickShow comes from Pangolin, makers of the top selling and most awarded laser software. It is based on Pangolin’s over 20 years of programming experience. QuickShow makes it easier than ever to do high-quality laser shows. QuickShow is especially designed for first-time an part-time laserists but powerful enough to satisfy experienced professionals.

QuickShow is a complete laser system. It is capable of graphics as well as beam and atmospherics effects. It has everything you need for a modern laser light show with both live and pre-programmed elements. You can start your lasershow right out of the box, QuickShow comes with nearly 2000 pre-loaded graphics, animations, beam effects and abstracts.

The QuickShow system comes with one Pangolin Flashback QS laser controller. This small, palm-sized box connects between a USB port on your PC and the ILDA input connector on your laser projector. To control additional projectors, you can add up to five more Flashback 3 laser controllers.

Pangolin is proud to announce the latest update to the QuickShow software, version 4.0!
This QuickShow Package will be shipped with QuickShow 4.0 which has some unique new features.
Existing clients can upgrade for free, please take a look at the Pangolin website.
