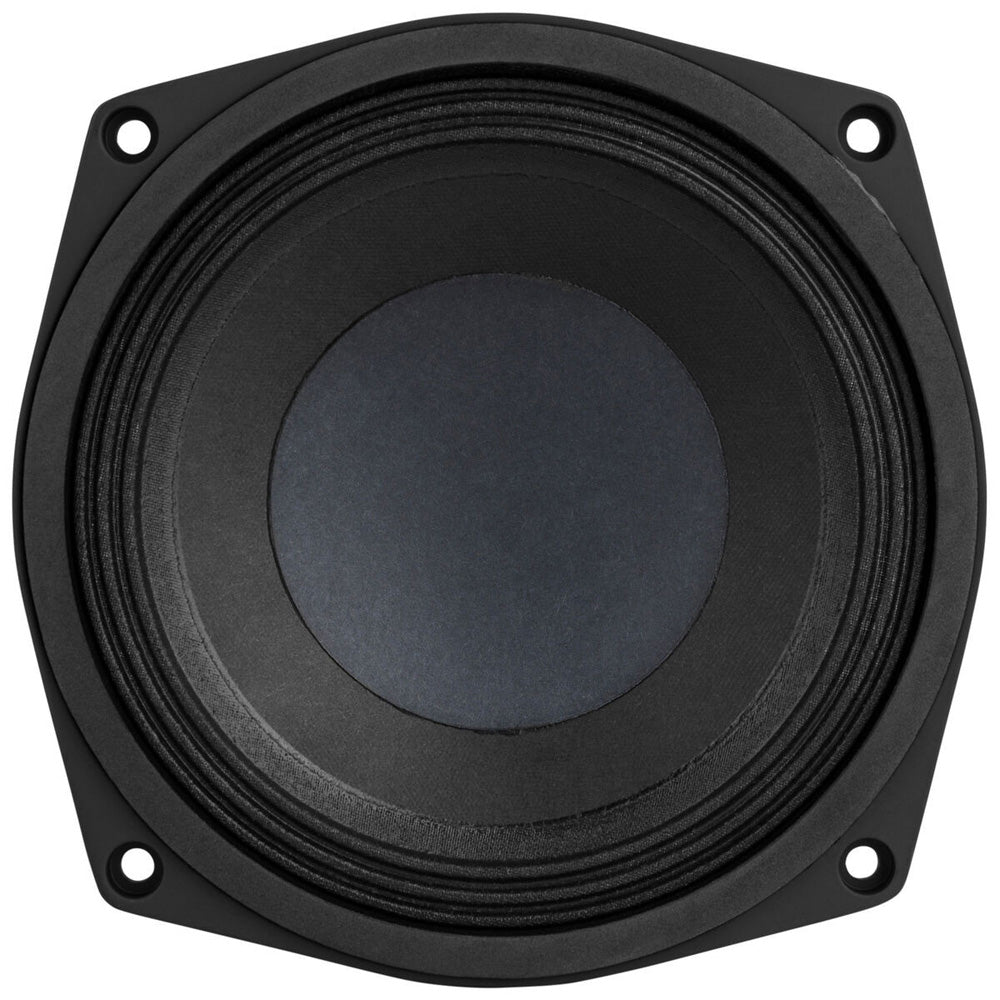

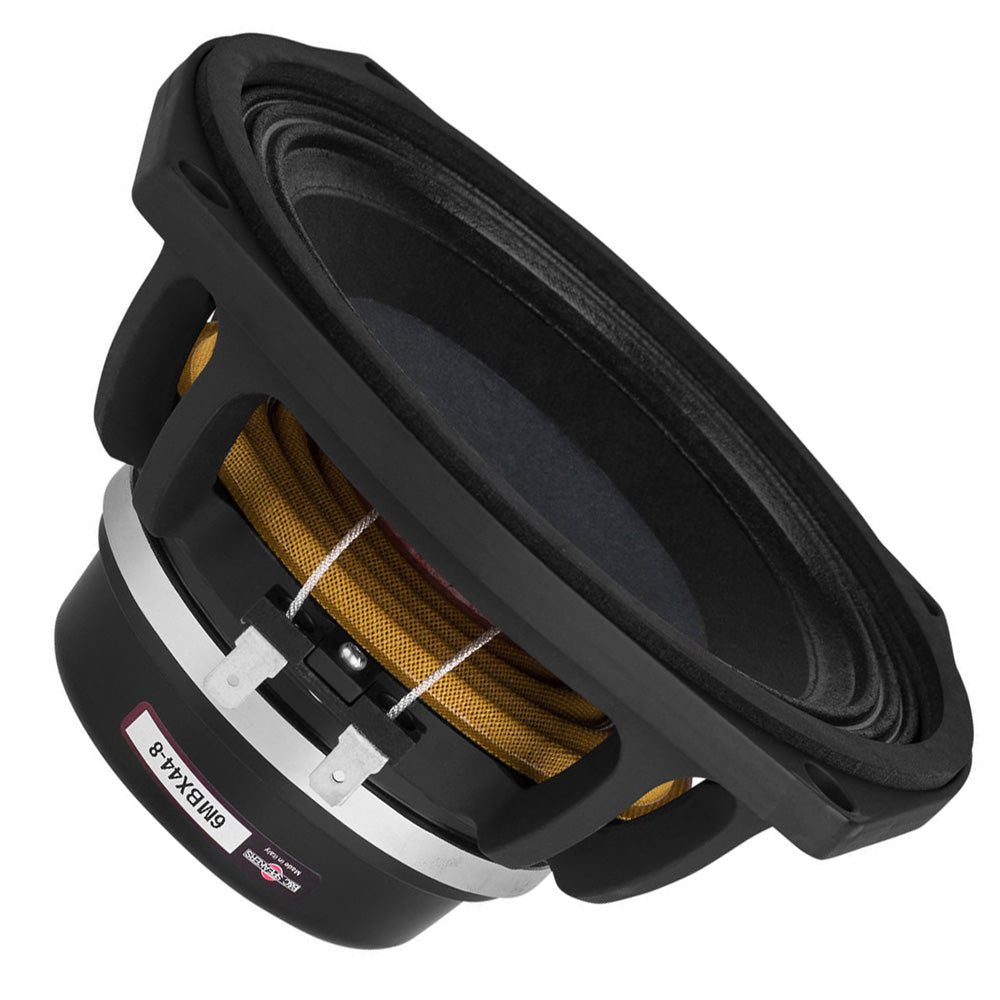

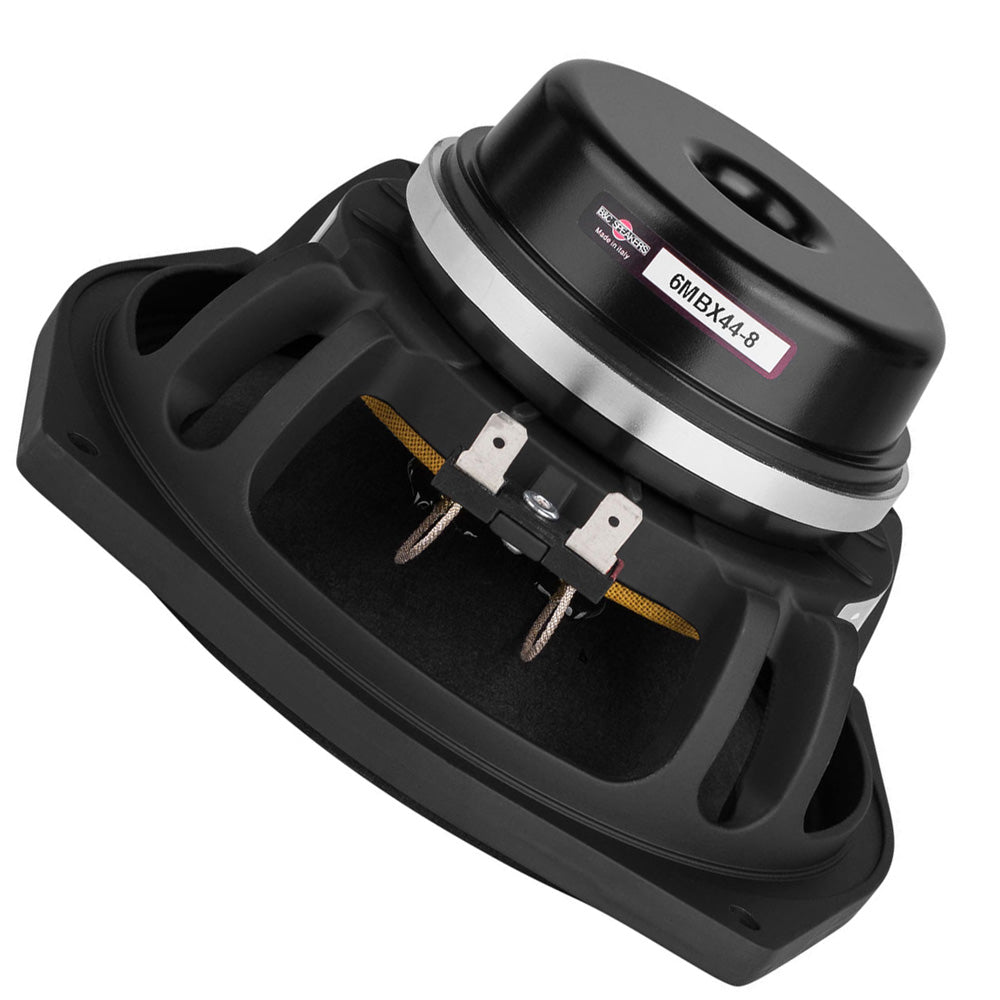

The 6MBX44 6" mid-bass woofer from B&C Speakers offers acoustic designers a high efficiency, wide bandwidth driver capable of surprising output levels. This full-featured transducer incorporates a lightweight neodymium motor, inside/outside wound copper clad aluminum wire voice coil, weatherproof hydrophobic paper cone, and a symmetrical inductance profile. Everything about this driver has been designed for reliable and consistent low distortion output even when driven to its limit. All MBX Series drivers are especially well suited for 2-way loudspeaker designs.
Key Features
400 W continuous program power capacity
44 mm (1.7 in) aluminum voice coil
115 - 5000 Hz response
98 dB sensitivity
Neodymium magnet allows a very light yet powerful motor assembly
Aluminum ring allows a very low distortion figure
Specifications
Nominal Diameter170 mm (6.5 in)
Nominal Impedance8 Ohm
Minimum Impedance6.0 Ohm
Nominal Power Handling200 W
Continuous Power Handling400 W
Sensitivity 98.0 dB
Frequency Range115 - 5000 Hz
Voice Coil Diameter44 mm (1.7 in)
Winding MaterialAluminium
Former MaterialGlass Fibre
Winding Depth10.0 mm (0.37 in)
Magnetic Gap Depth6.0 mm (0.25 in)
Flux Density1.55 T
Design
Surround Shape Triple Roll
Cone Shape Exponential
Magnet Material Neodymium Ring
Spider Single
Pole Design T-Pole
Woofer Cone Treatment Waterproof Impregnated Cone
Recommended Enclosure3.0 dm3 (0.11 ft3)
Recommended Tuning120 Hz
Parameters
Resonance Frequency113 Hz
Re5.4
Qes0.34
Qms3.9
Qts0.31
Vas4.1 dm3 (0.14 ft3)
Sd132.0 cm2 (20.46 in2)
1.4 %
Xmax3.5 mm
Xvar3.0 mm
Mms12.0 g
Bl11.7 Txm
Le0.2 mH
EBP332 Hz
Mounting And Shipping Info
Overall Diameter187 mm (7.36 in)
Bolt Circle Diameter172 mm (6.7 in)
Baffle Cutout Diameter145.0 mm (5.7 in)
Depth87 mm (3.43 in)
Flange and Gasket Thickness11 mm (0.4 in)
Air Volume Occupied by Driver0.6 dm3 (0.02 ft3)
Net Weight1.5 kg (3.31 lb)
Shipping Units1
Shipping Weight1.7 kg (3.75 lb)
Shipping Box210x210x125 mm (8.27x8.27x4.92 in)
