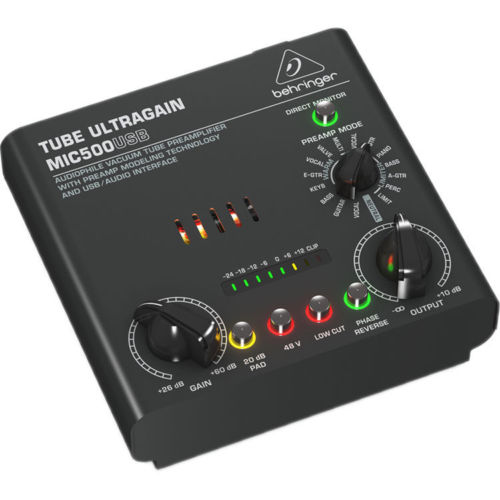

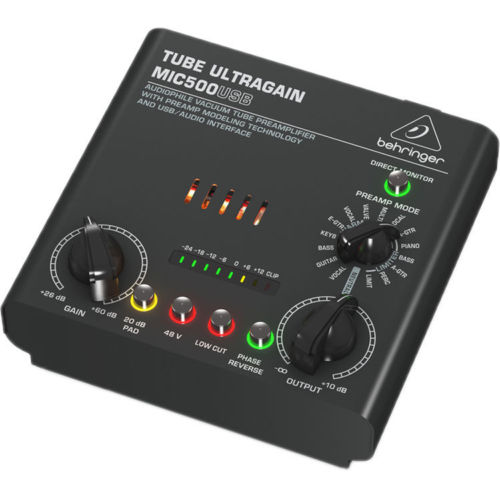

Behringer TUBE ULTRAGAIN MIC500USB Vacuum Tube Preamplifier

Regular price $ 69.99

The TUBE ULTRAGAIN MIC500USB Vacuum Tube Preamplifier from Behringer gives you the sound quality of a vintage tube preamp and a high-end DI box all-in-one, plus a built-in USB audio interface that lets you record straight to your computer. The hand-selected 12AX7 tube and preamplifier can be used to warm up a signal fast, giving it depth and character in applications for recordings, live sound, podcasts, voice-overs, and more.

Featuring XLR and 1/4" TRS connectors, the preamplifier has +48V phantom power so you can use high-quality condenser mics. There is a rotary switch with 16-preamp voicings, which covers a wide range of applications for vocals, acoustic and electric guitars, bass, keyboards, and more. Other features include a powerful headphone output with level control knob and direct monitor select switch.

Additionally, you can connect directly to your Windows or Mac computer via a single USB cable. Now any signal source you connect to the MIC500USB can be recorded directly to your hard drive. Furthermore, Tracktion DAW software for composing, recording, editing, mixing, and sharing your music with the world is also included via a download link.

The TUBE ULTRAGAIN MIC500USB's hand-selected 12AX7 vacuum tube gives everything from microphones to acoustic guitars, or bass guitars a vintage tube vibe in a dependable and ultra-affordable package.

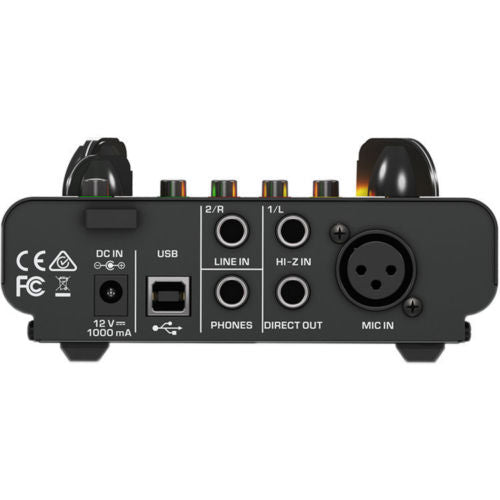

For studio and live applications, the balanced XLR and 1/4" TRS inputs give you the maximum flexibility in either environment. The MIC500USB's controls consists of: switches for +48V phantom power, 20 dB pad, phase reverse and limiter, plus vintage-style gain and output knobs.
There are 16 unique preamp voicings that cover a wide-range of applications including vocals, acoustic and electric guitars, bass, keyboards, and more.
The built-in audio interface can connect directly to your Mac or Windows computer via a single USB cable.
Tracktion software is included that lets you compose, record, edit, mix and share your music with the world. It is a single-screen interface that gives you all the tools of an entire professional-grade recording studio.

Behringer MIC500USB Specifications

Number of Channels Single
Inputs 1 x XLR microphone
1 x 1/4" (6.3 mm) TRS instrument / line
1 x 1/4" (6.3 mm) TRS Hi-Z
2 x channels from USB
Input Impedance Mic IN: 3 kOhms balanced / 1.5 kOhms unbalanced
Instrument In: 800 kOhms
Maximum Input Level Mic: +1 dBu
line: +22 dBu
Hi-Z: +12 dBu with pad
Output 1 x 1/4" (6.3 mm) TRS direct output
1 x 1/4" (6.3 mm) TRS stereo, headphone output
2 x channels to USB
Output Impedance Direct Out: 480 Ohms balanced, 240 Ohms unbalanced
Headphone Out: 24 Ohms minimum
Maximum Output Level +22 dBu direct output
+22 dBu headphone output
Controls Gain: Variable (+26 dB to +60 dB)
Output: Variable (∞ to +20 dB)
Preamp Mode Control: Selection of various preamp models for mic and instruments
Pads 20 dB level attenuation
Phantom Power -48 V
Low Cut Filters High-pass filter (cut-off frequency 90 Hz)
Phase Reverse 180°
Headphones Mono mix of mic/Hi-Z preamp out and line in
Display Input Level LEDs: -24, -18, -12, -6, 0, +6, +12, clip (dB)
Signal to Noise Ratio 90 dB, A-weighted @ -20 dBu input level
Frequency Response 10 Hz to 71 kHz (+0/-3 dB) mic / Hi-Z
Direct Out Monitor: 10 Hz to 65 kHz (+0 / -3 dB) line input
USB Port USB 2.0, type B
Power Supply 12 VDC, 1000 mA power adapter (110-240V)
Power Consumption 7 W
Dimensions (H x W x D) 2.4 x 5.3 x 5.2" (62 x 135 x 132 mm)
Weight 1.54 lb (0.7 kg)

Packaging Info

Package Weight 2.15 lb
Box Dimensions (LxWxH) 9.1 x 5.9 x 3.2"
