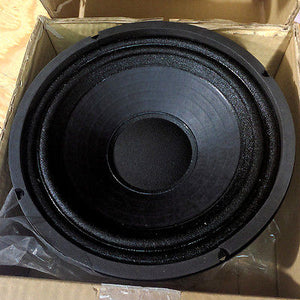

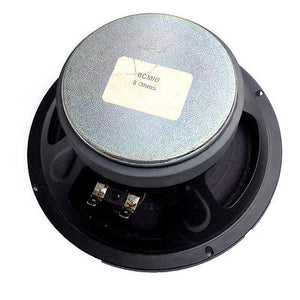

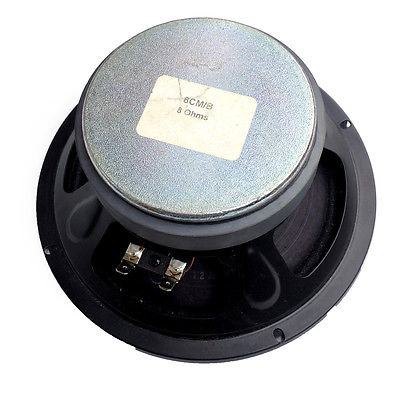

TECHNICAL SPECIFICATIONS
| Nominal diameter | 200 mm 8 in |
| Nominal impedance | 8 Ohm |
| Minimum impedance | 7.7 ohm |
| Power capacity | 100 W RMS |
| Program power | 200 W |
| Sensitivity | 92.4 dB 1 W @ 1m @ 2Î |
| Frequency range | 40-5000 Hz |
| Recommended enclosure volume | 20 / 60 l 0.7 / 2.12 ft.³ |
| Voice coil diameter | 38.1 mm 1.5 in |
| BL factor | 9.8 N /A |
| Moving mass | 0.022 kg |
| Winding length | 16 mm |
| Air gap height | 6 mm |
| Xdamage pp | 25 mm |
THIELE SMALL PARAMETERS
| Fs | 73 Hz |
| Re | 6.2 ohm |
| Qms | 13.46 |
| Qes | 0.65 |
| Qts | 0.62 |
| Vas | 14.6 l |
| Cms | 216 µm / N |
| Rms | 0.75 kg / s |
| Efficiency % | 0.84 |
| Sd | 0.022 m² |
| Xmax | 6.7 mm |
| Vd | 124 cm³ |
| Le @1 kHz | 1.2 mH |
CONSTRUCTIVE DETAILS
| Net weight | 2.18 kg 4.81 lb |
| Total weight | 2.34 kg 5.16 lb |
| Magnet | Ferrite |
