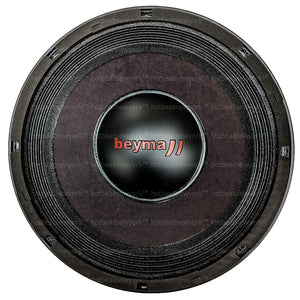

PRO10MI is a high power 10" car mid-bass speaker from the Beyma Competition Series delivers a very strong bass for the highest quality applications with superb clarity. It handles 350 Watts-RMS and features a large 3" voice coil.
Product Specifications
Nominal Basket Diameter: 10" / 250mm
Impedance: 4 ohms
AES Power Rating: 350 Watts
Program Power: 700 Watts
Frequency Response: 70Hz - 4.0kHz
Sensitivity (1W/1m): 101dB
Voice Coil Diameter: 3" / 77mm
BL Factor: 15.8 N/A
Mounting Information
Overall Diameter: 10.24" / 260mm
Bolt Circle Diameter: 9.6" / 244mm
Front Mount: 8.98" / 228mm
No. Of Mounting Holes: 8
Overall Depth: 4.9" / 124mm
Materials
Basket: Die Cast Aluminum
Cone: Paper
Magnet: Ferrite
Thiele-Small Parameters
Resonant Frequency (fs): 46 Hz
Impedance (Re): 3.7 ohms
Coil Inductance (Le): 1.3 mH
Mechanical Q (Qms): 7.24
Electrical Factor (Qes): .17
Total Q (Qts): .17
Comp. Equivelant Vol. (Vas) 2.19 ft3 / 62 Liters
Surface Area of Cone (Sd)m2: 0.038
Reference Efficiency: 3.5%
