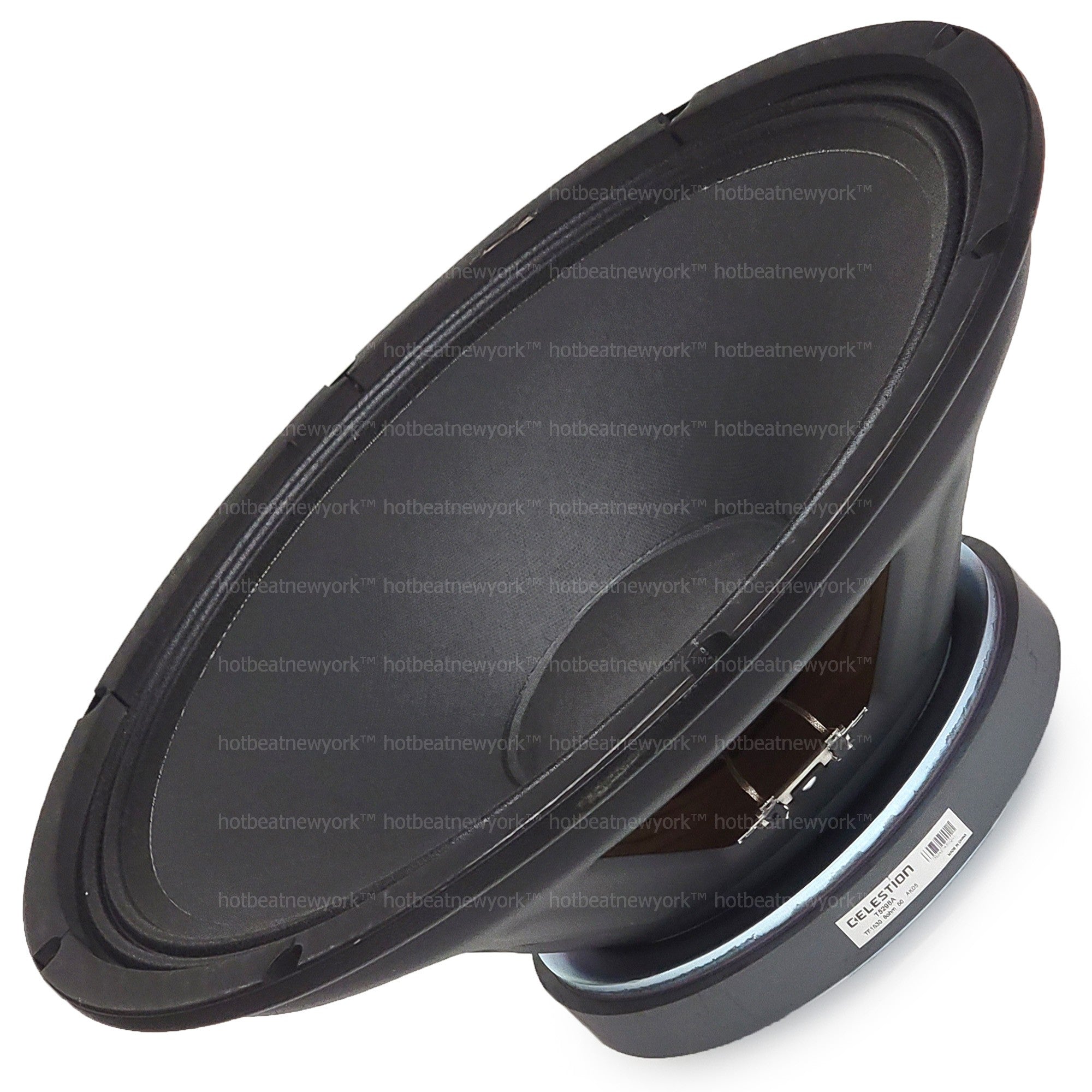

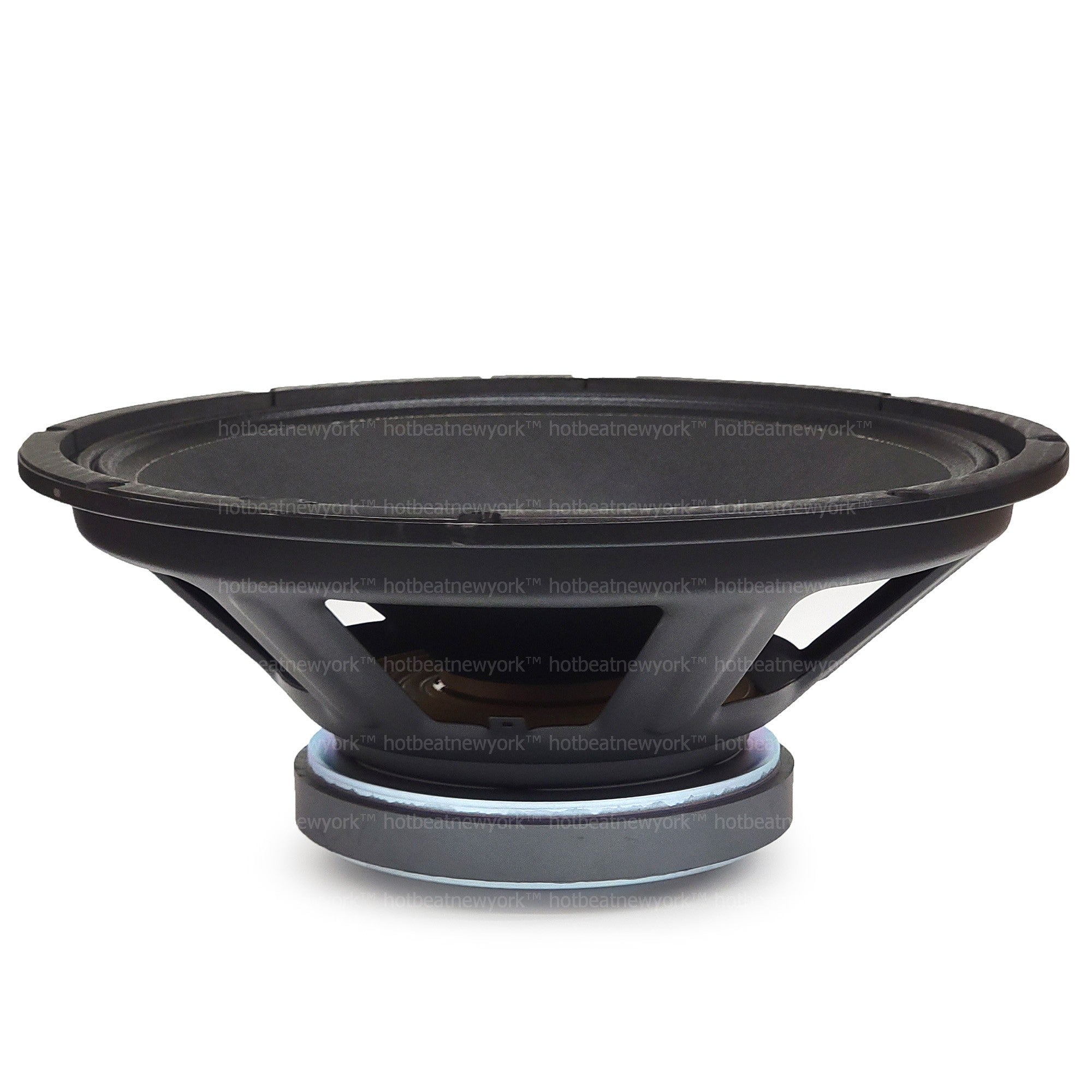

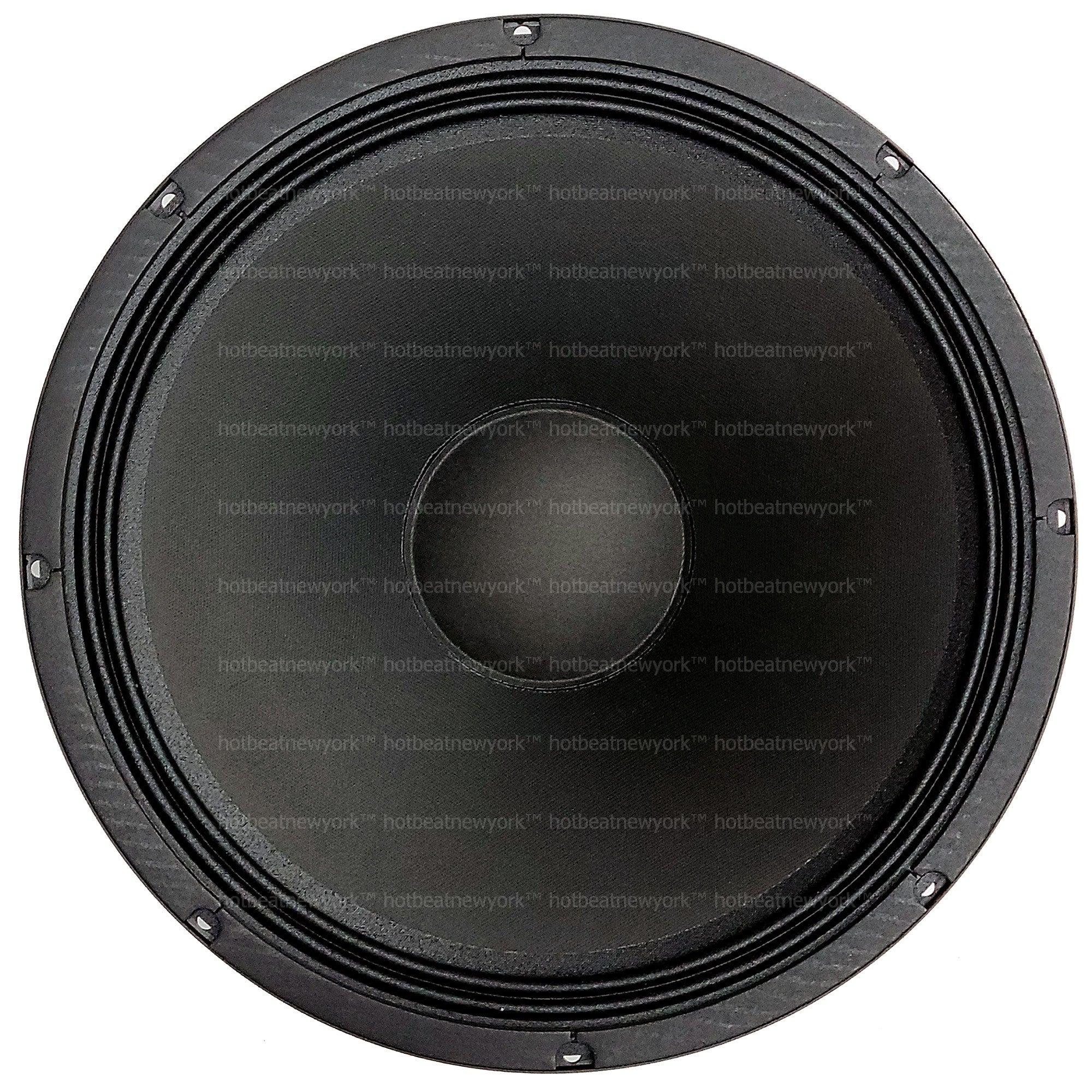

Celestion TF1530 15" Professional Speaker 400 Watt-RMS 8-ohm T5298A
15-inch pressed steel chassis, ferrite magnet bass/mid driver
PRODUCT SPECIFICATIONS
Nominal diameter 381mm / 15in
Power rating 400W
Continuous power rating 800W
EIA power rating 550W
Rated impedance 8Ω
Sensitivity 99dB
Frequency range 40-3000Hz

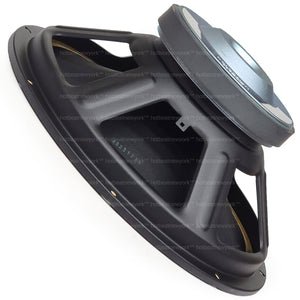

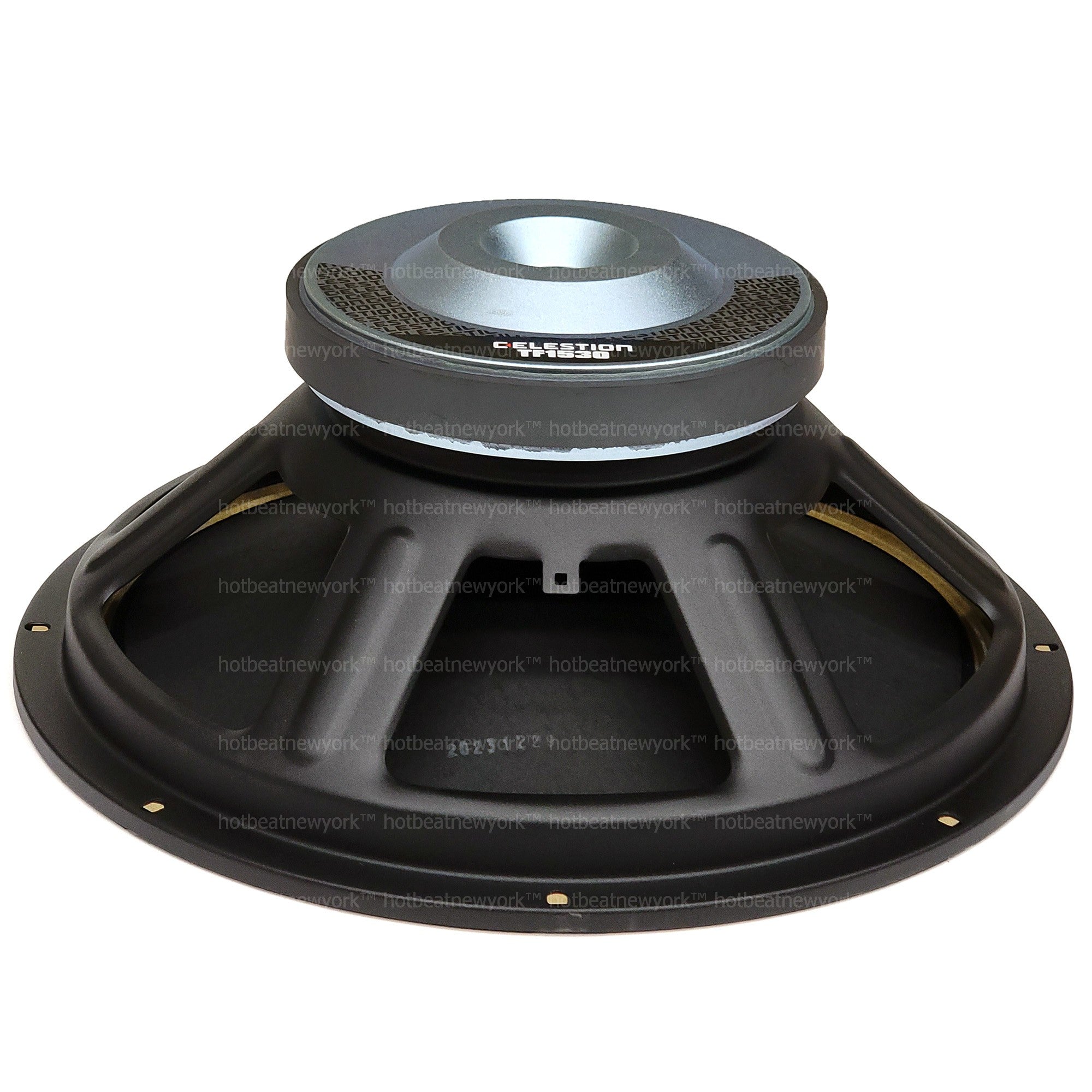

Chassis type Pressed steel

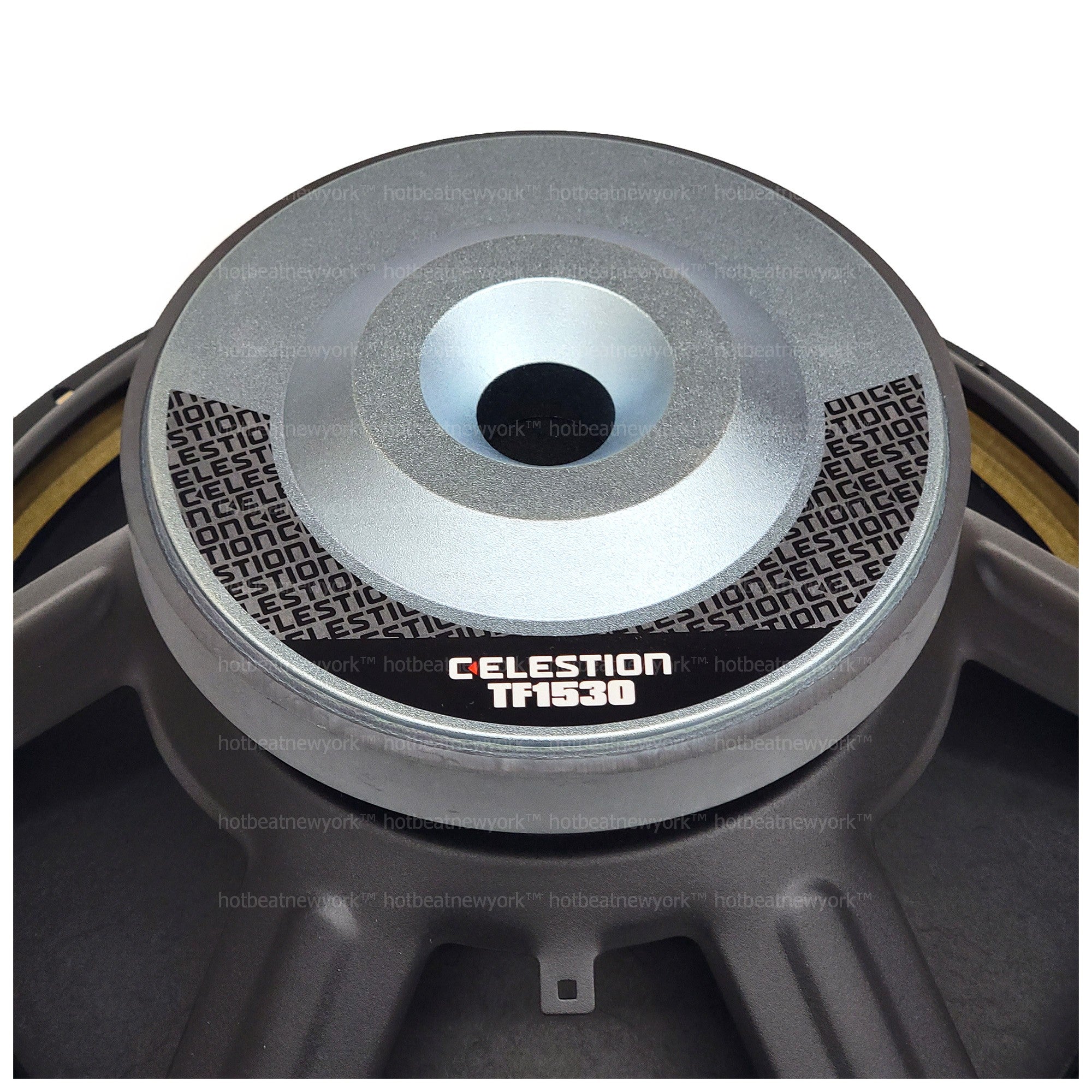

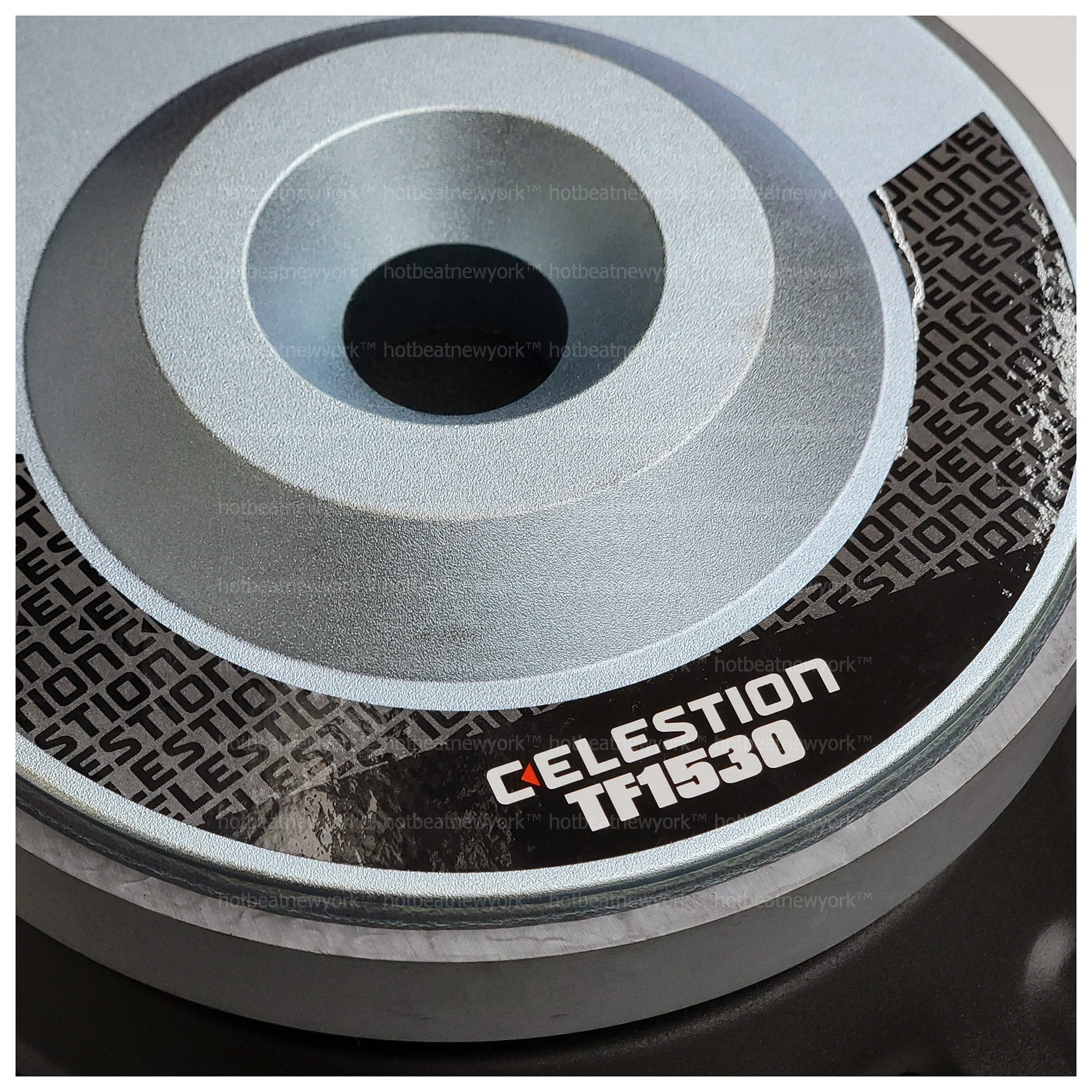

Magnet type Ferrite
Magnet weight 2.44kg / 86oz
Voice coil diameter 75mm / 3in
Voice coil material Round copper
Former material Polyimide

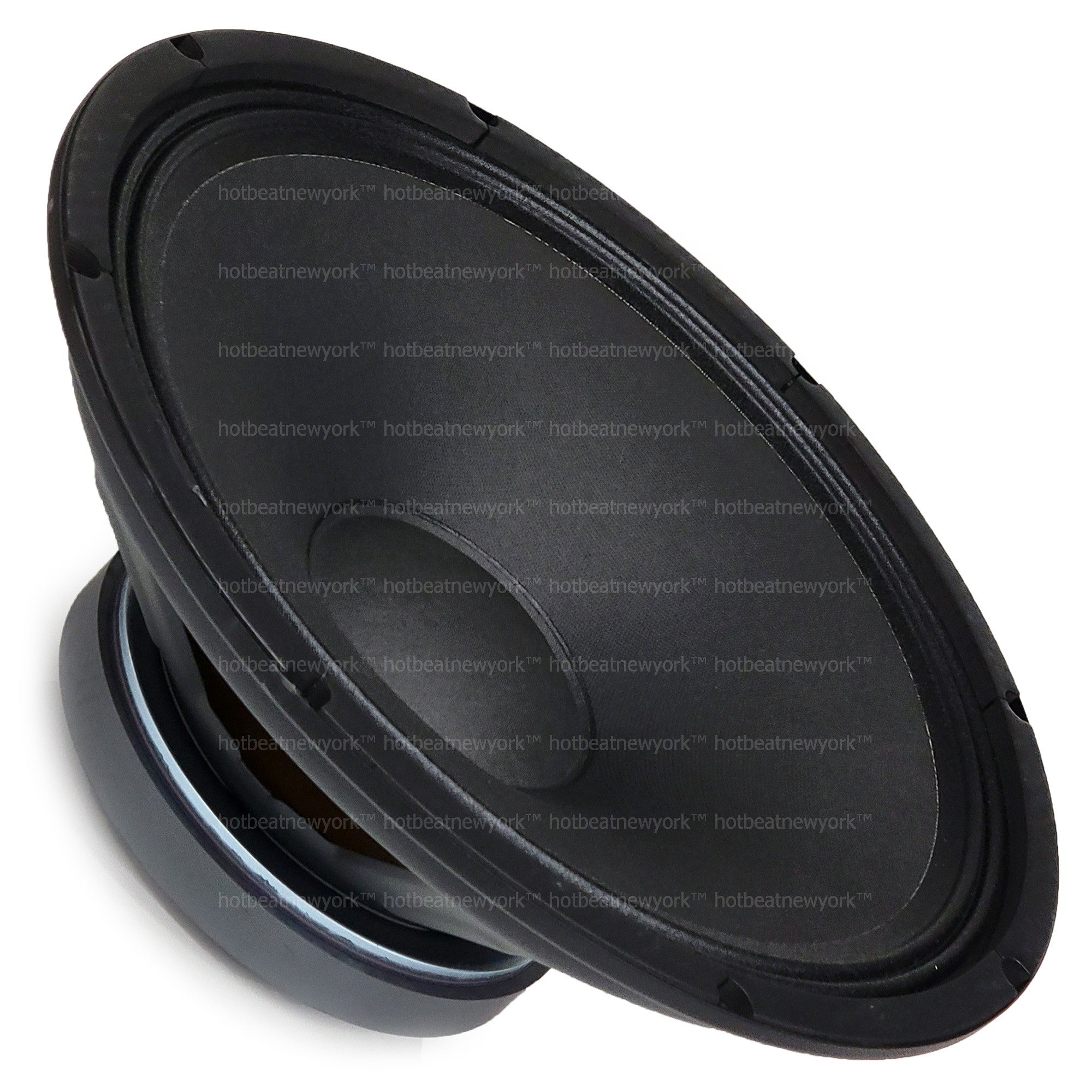

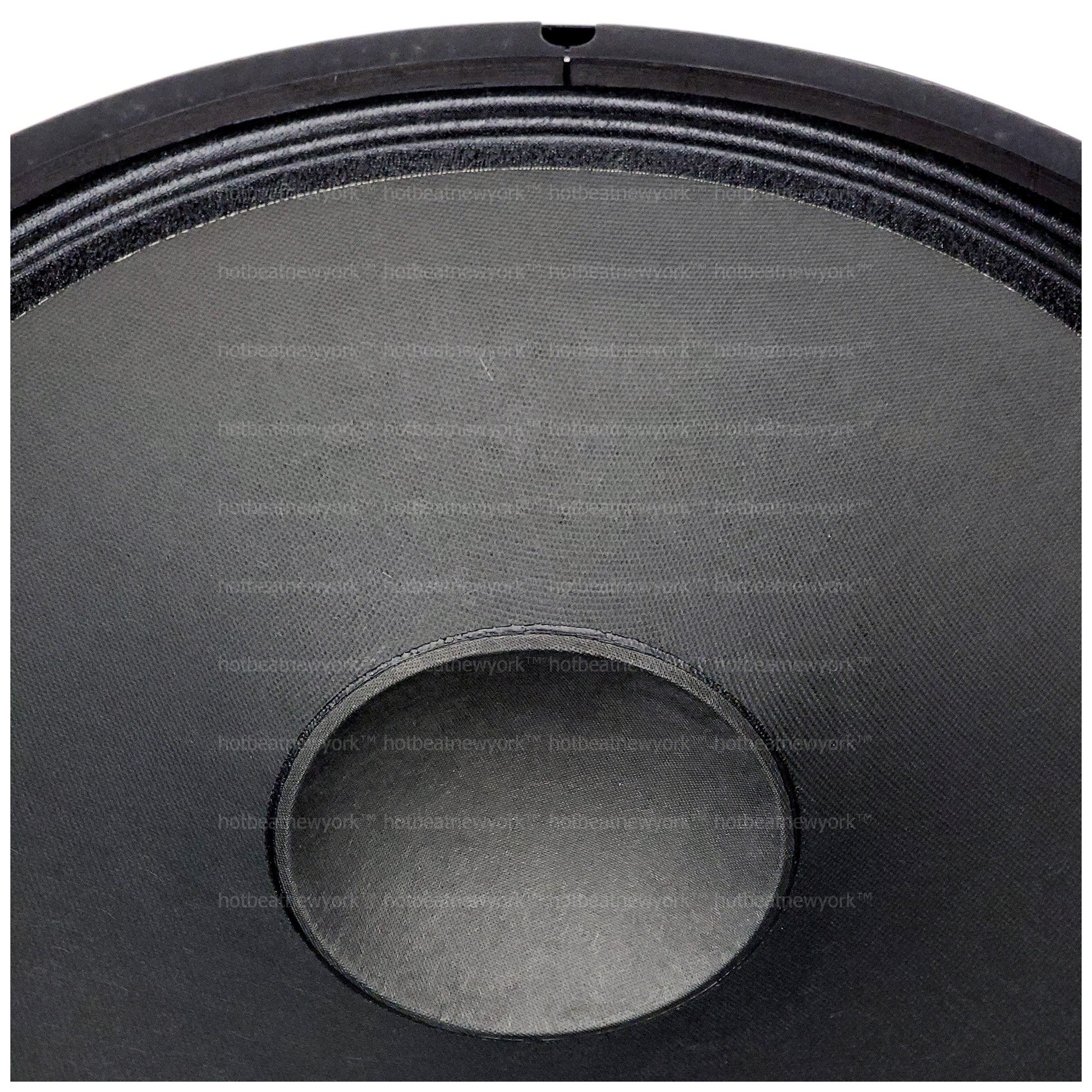

Cone material Kevlar loaded paper
Surround material Cloth-sealed
Suspension Single
Gap height (Hg)8mm / 0.31in
VC winding height (Hvc)12mm / 0.47in
PARAMETERS
Sd 855.30cm2 / 132.57in2
Fs 42.00Hz
Mms 91.65g / 3.23oz
Qms 2.728
Qes 0.313
Qts 0.281
Re 5.82Ω
Vas 162.20l / 5.73ft3
BI 21.22Tm
Cms 0.16mm/N
Rms 8.87kg/s
Le (at 1kHz) 0.96mH
Xmax 4mm / 0.16in
MOUNTING INFORMATION
Overall diameter 385mm / 15.16in
Overall depth 163mm / 6.4in
Cut-out diameter 352mm / 13.86in
Mounting hole dimensions 9.2x6.2mm / 0.36x0.24in
Number of mounting holes 8
Mounting hole PCD 369mm / 14.56in
Unit weight 6.9kg / 15.2lb
