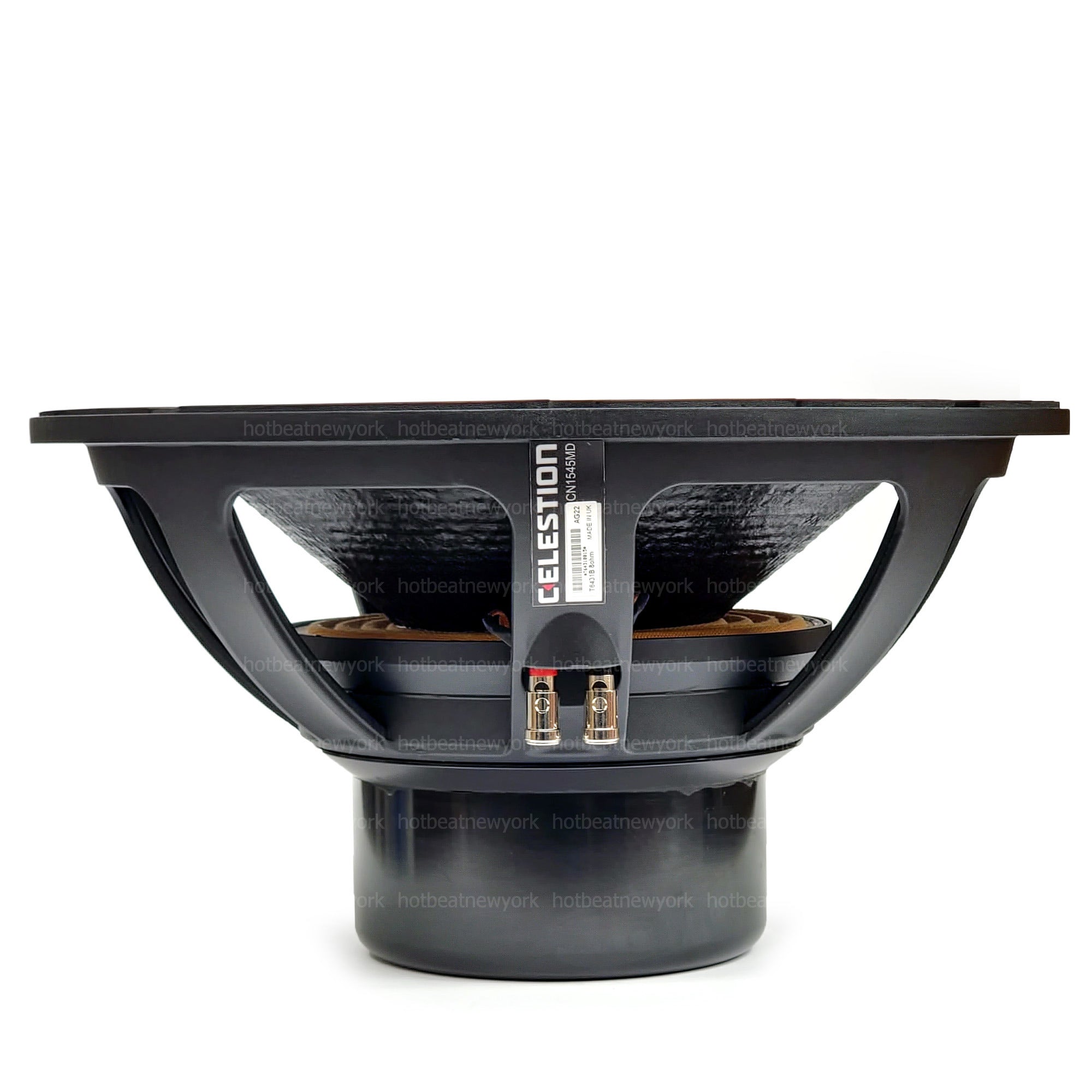

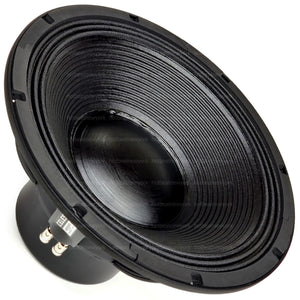

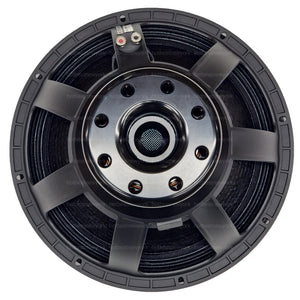

Celestion TSQ1545 15" Neodymium Subwoofer Driver CN1545MD T6431B
15-inch cast aluminum chassis neodymium magnet low frequency loudspeaker
Advanced temperature control using 3-channel tuned venting system provides highly efficient cooling across the frequency band
Voice coil typically operates at up to 80°C lower temperature than other leading drivers in this class
Polysiloxane laminated double suspension provides much greater stability and improved cone displacement symmetry
Lead-out wires precision woven into suspension minimizes excess motion and reduces fatigue
Weather resistant cone coating enhances durability
Specifications
Nominal diameter 381mm / 15in
Power rating 1800W
Continuous power rating 3600W
Rated impedance 8Ω
Sensitivity 94dB
Frequency range 30Hz-1500Hz
Chassis type Cast aluminum
Magnet type Neodymium
Voice coil diameter 115mm / 4.5in
Voice coil material Round copper
Former material Glass fibre
Cone material Glass loaded paper (weather-resistant)
Surround material Triple roll, cloth sealed
Suspension Dual, polysiloxane-laminated
Gap height (Hg)12mm / 0.47in
VC winding height (Hvc) 38mm / 1.49in
Parameters
Sd 855.3cm2 / 132.6in2
Fs 34.5Hz
Mms 260g / 9.17oz
Qms 5.0
Qes 0.305
Qts 0.287
Re 5.16Ω
Vas 84.6l / 2.99ft3
BI 30.9Tm
Cms 0.082mm/N
Rms11.32kg/s
Le (at 1kHz)3.3mH
Xmax 16mm / 0.63in
Mounting Information
Overall diameter 393mm / 15.46in
Overall depth 290mm / 8.23in
Cut-out diameter 354mm / 13.94in
Mounting hole dimensions 10mmx7mm / 0.39inx0.27in
Number of mounting holes 8
Mounting hole PCD 374-354mm / 14.7-14.06in
Unit weight 11.3kg / 24.9lb
