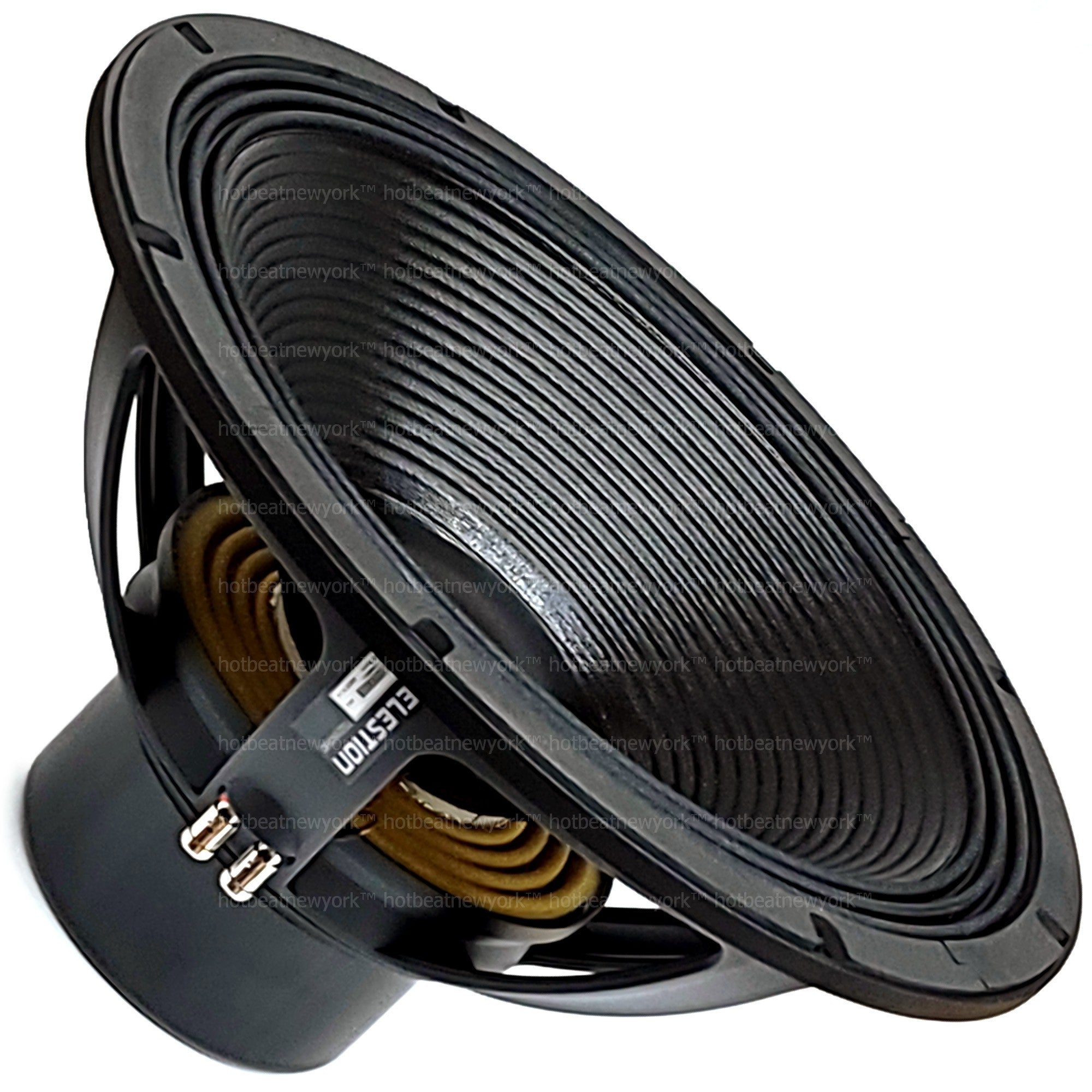

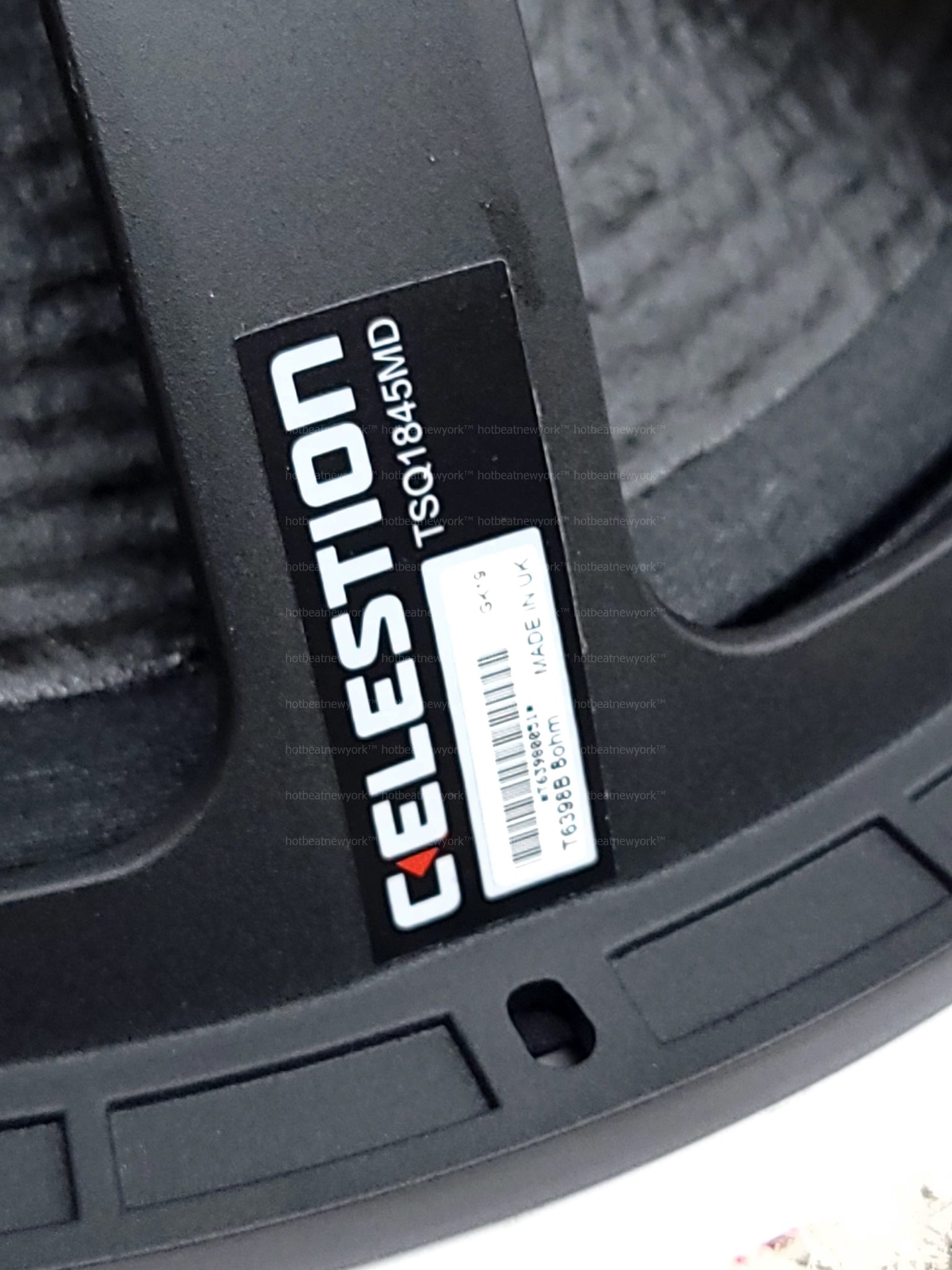

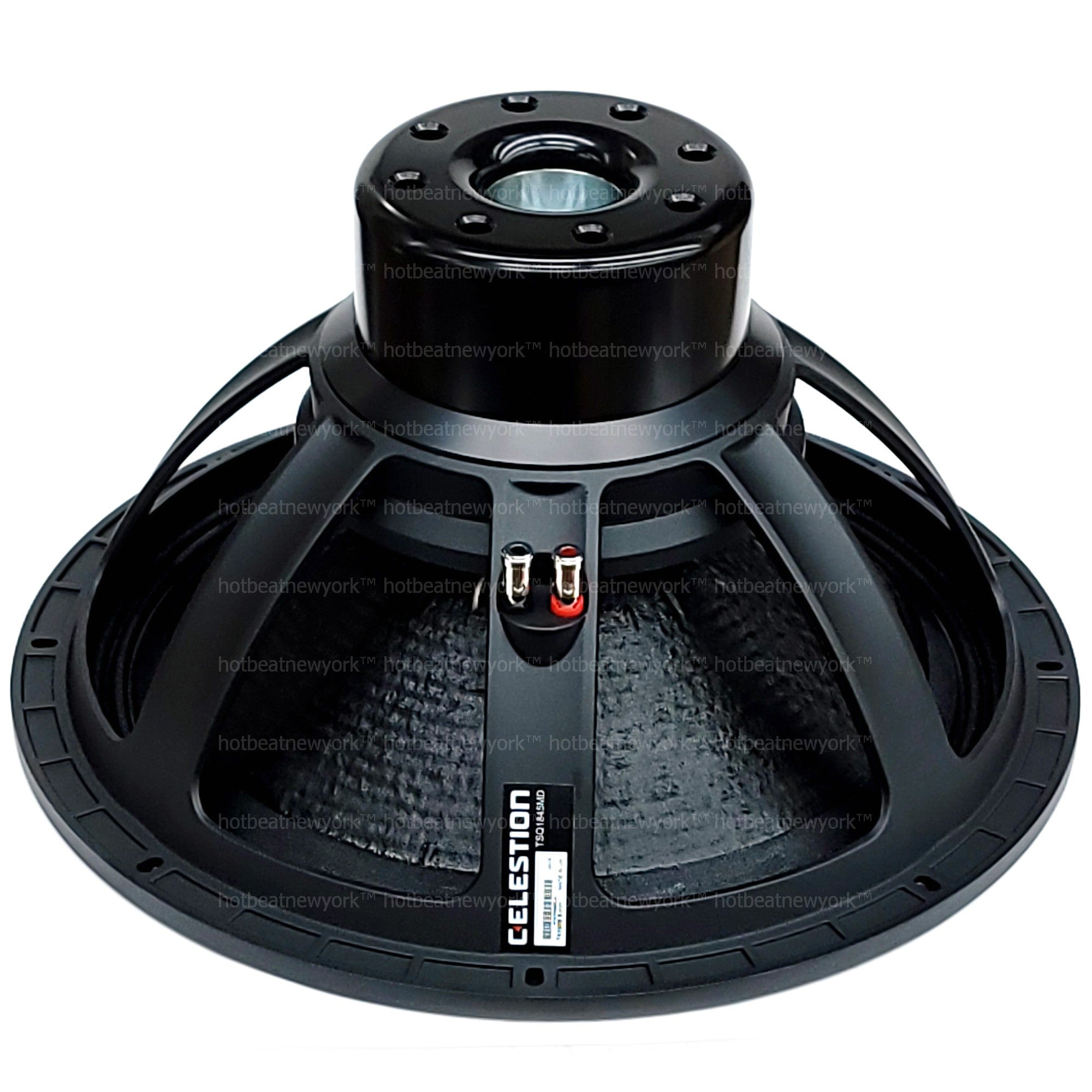

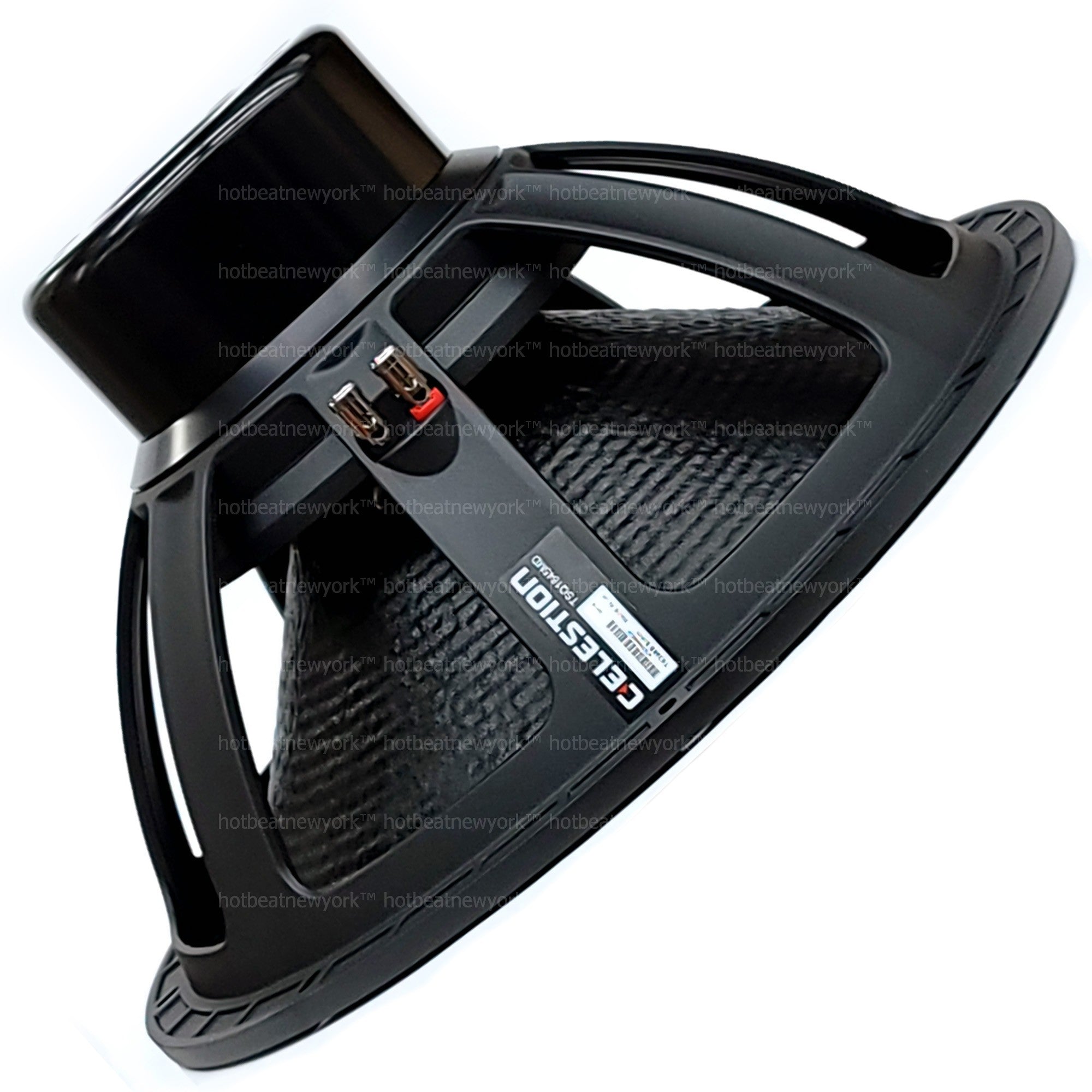

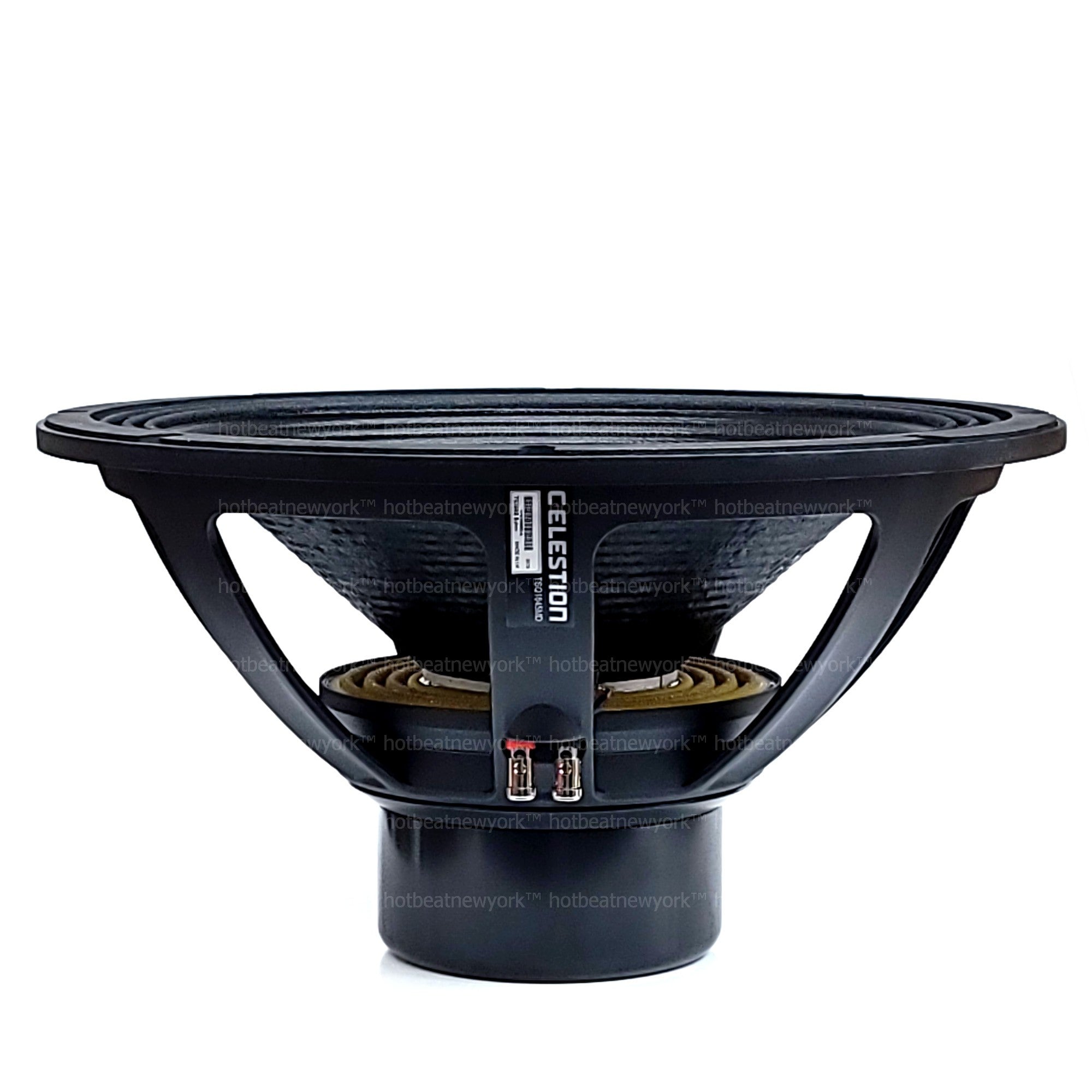

Celestion TSQ1845 18" Subwoofer Speaker
Neodymium Driver 1800 Watt RMS | 8-ohm
Product Specifications
Power rating: Tested for two hours using a continuous, band-limited pink noise signal as per AES standard. Power calculated on minimum impedance. Loudspeaker tested in free air.
Continuous power rating: Defined as 3dB greater than the AES rating.
Sensitivity: Measured on axis at 1W, 1m in 2π anechoic environment.
Parameters: Measured after unit subjected to pre-conditioning signal.
Xmax: 0.5*(Hvc-Hg) + 0.25*Hg
Xmech: Maximum peak-to-peak excursion before damage.

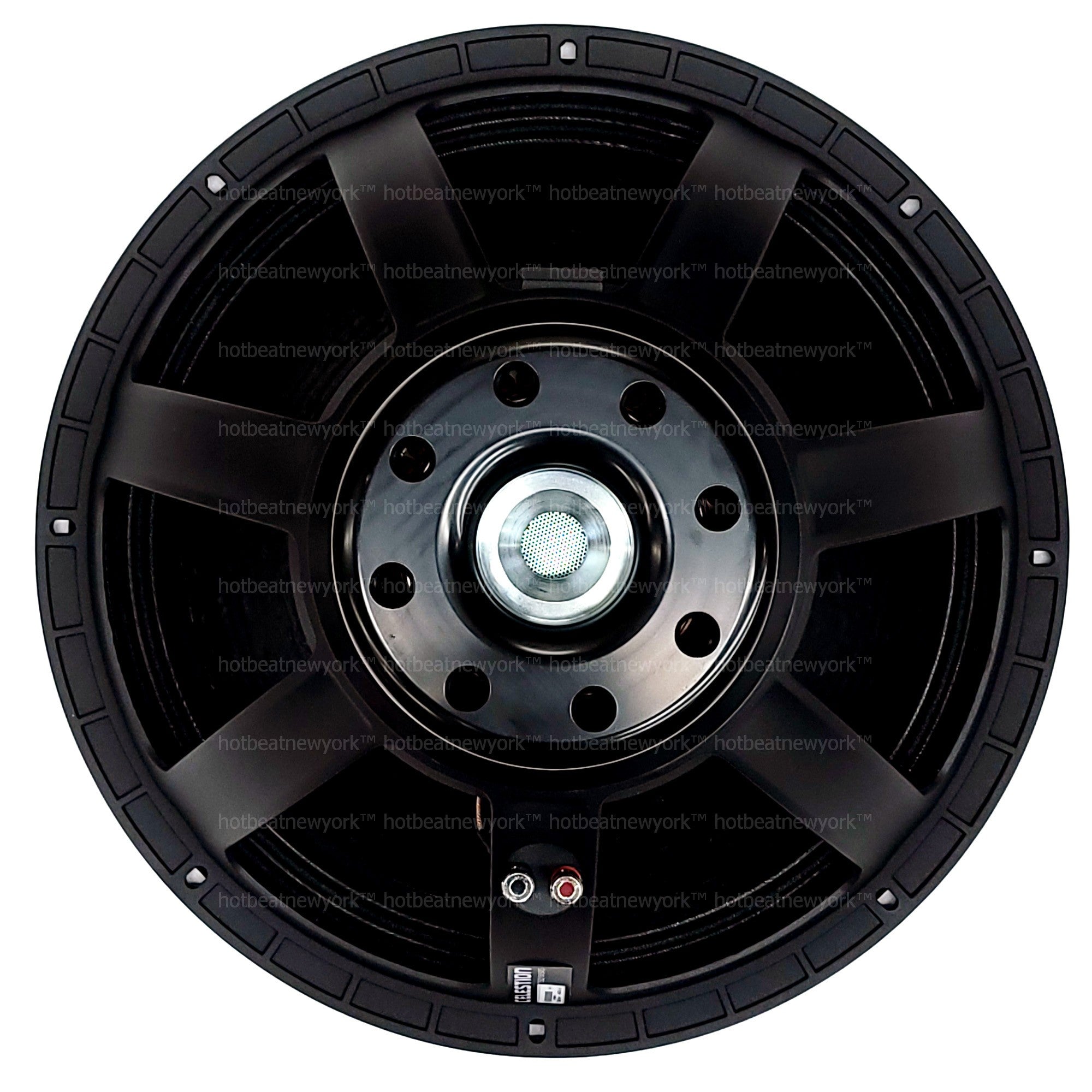

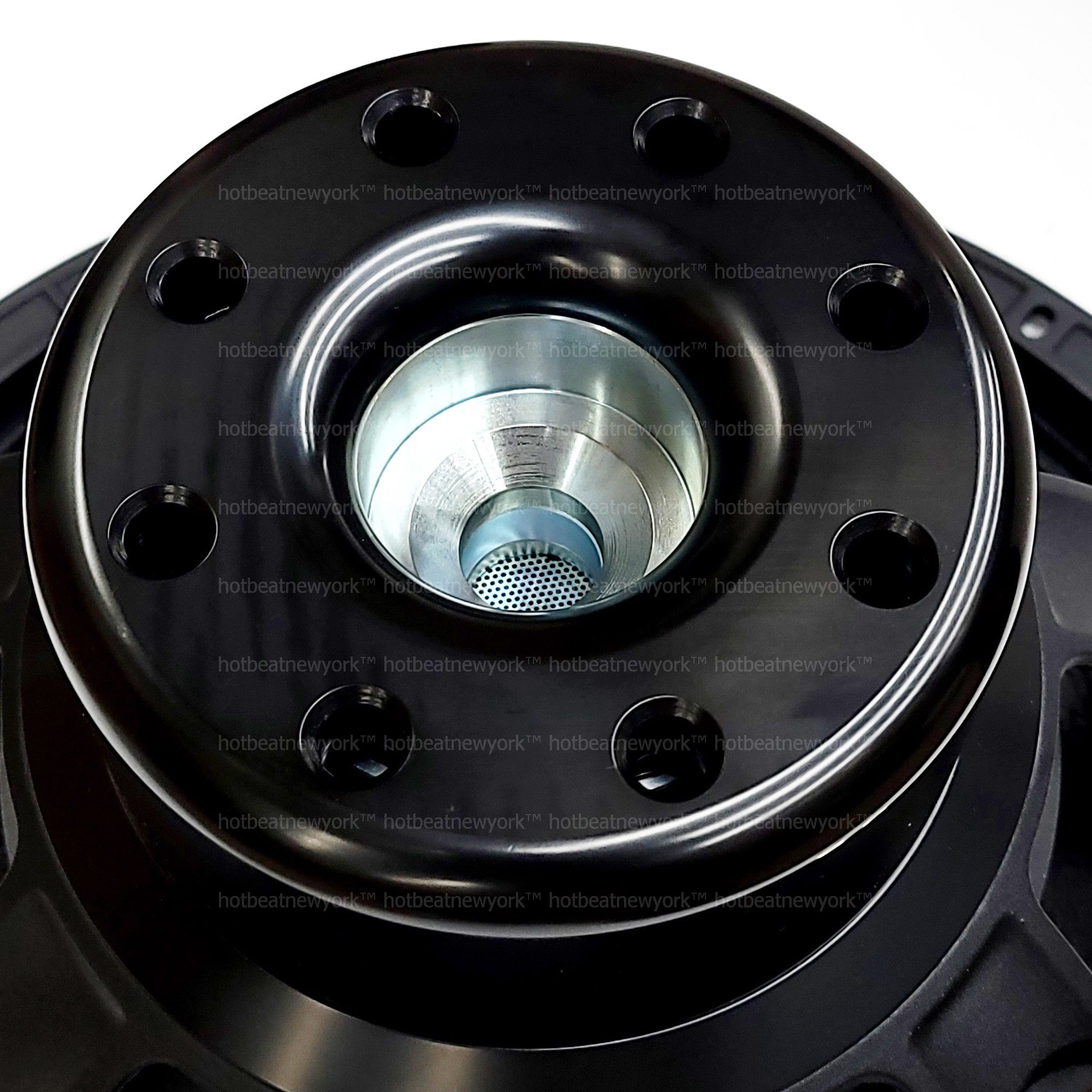

Advanced temperature control using 3-channel tuned venting system provides highly efficient cooling across the frequency band
Voice coil typically operates at 30°C lower temperature than other leading drivers in this class
Polysiloxane laminated double suspension provides much greater stability and improved cone displacement symmetry

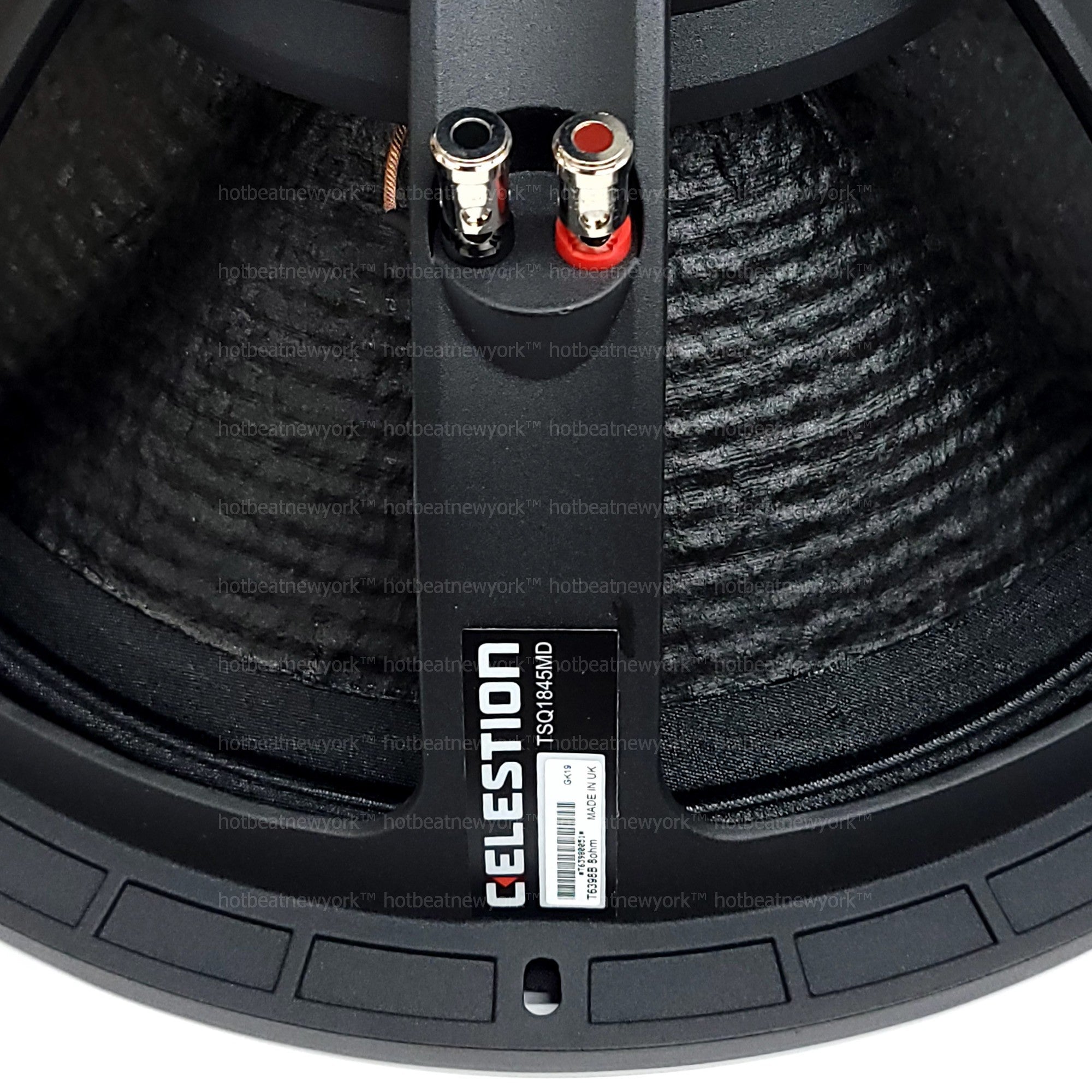

Lead-out wires precision woven into suspension minimizes excess motion and reduces fatigue
Double-sided, weatherproof cone coating enhances durability
Nominal diameter : 457mm/18in
Power rating : 1800W
Continuous power rating : 3600W
Rated impedance : 8Ω
Sensitivity : 96.5dB
Frequency range : 30-1,000Hz

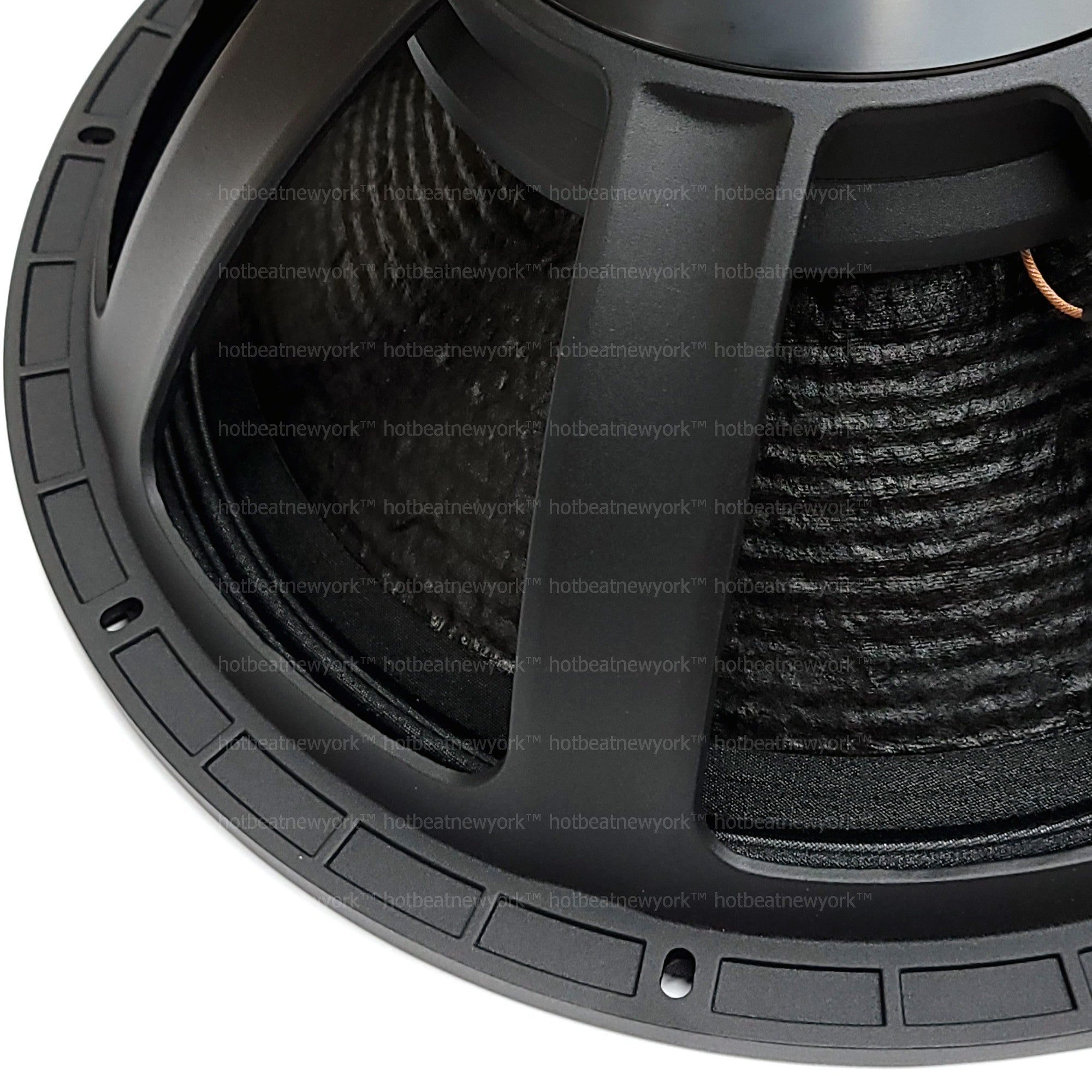

Chassis type : Cast aluminum
Magnet type : Neodymium
Voice coil diameter : 115mm/4.5in
Voice coil material : Round copper
Former material : Glass Fibre

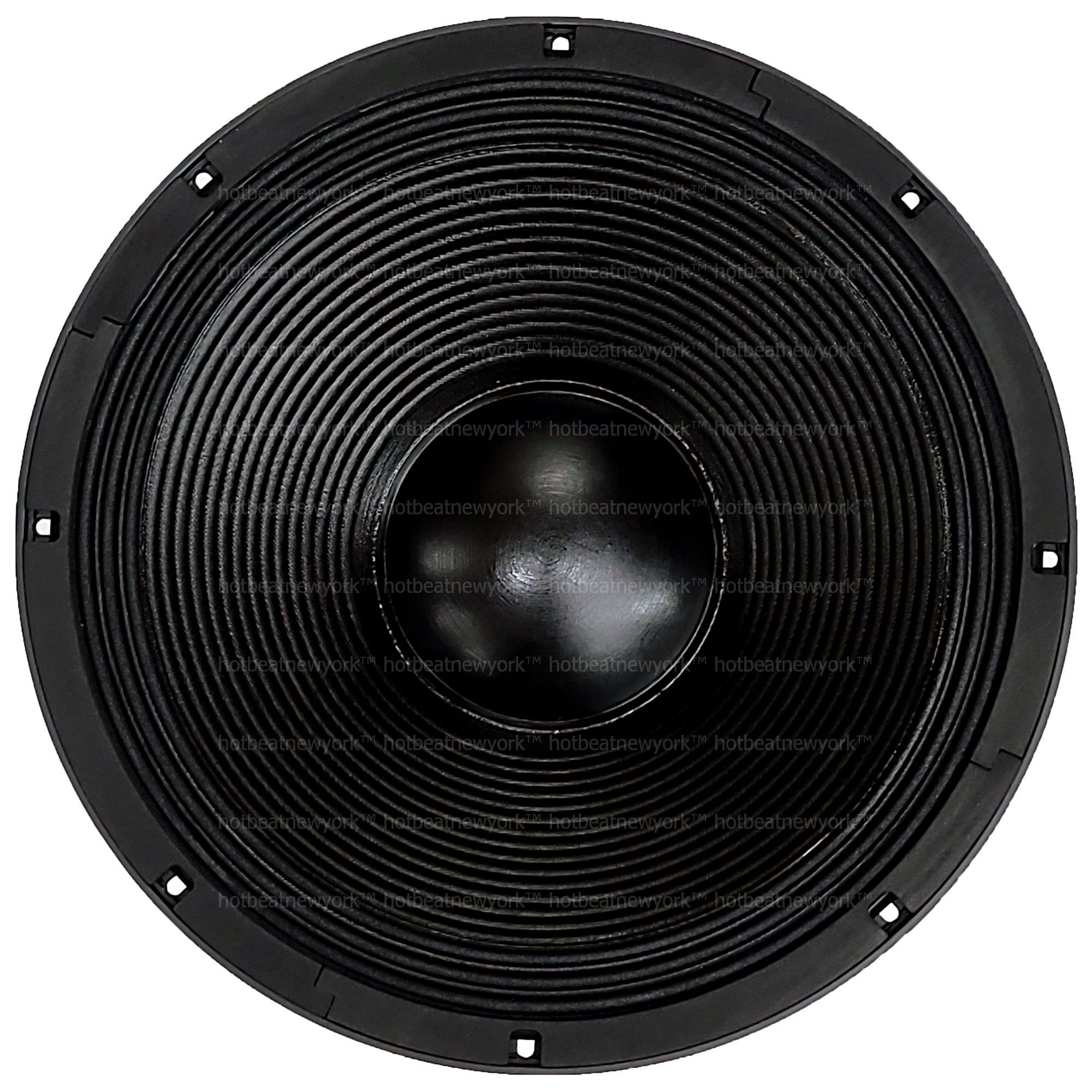

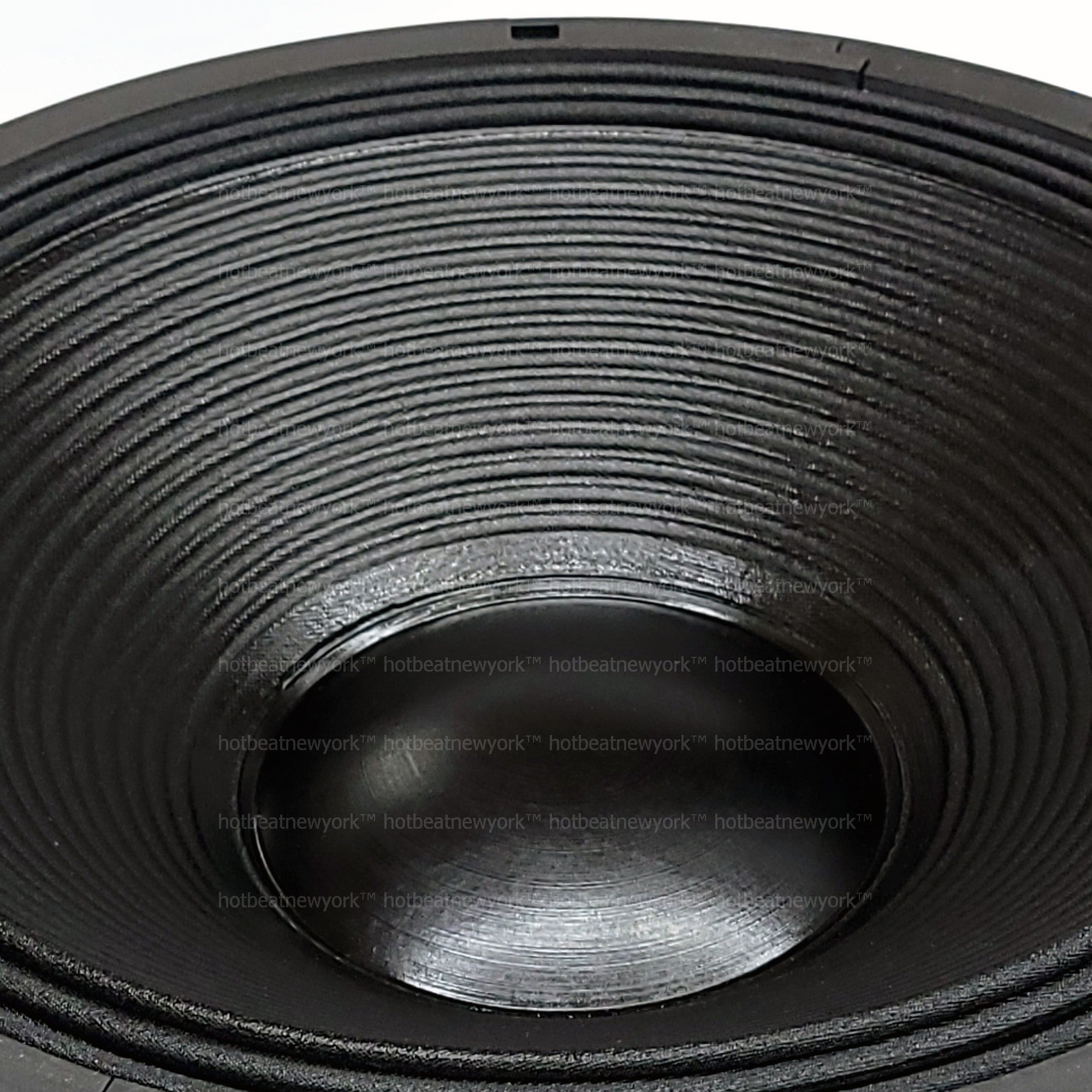

Cone material : Glass loaded cellulose, water-resistant coating front & back
Surround material : Triple roll, cloth sealed
Suspension : Dual, polysiloxane-laminated
Gap height(Hg) : 12mm/0.46in
VC winding height(Hvc) : 36mm/1.42in
Parameters
Sd : 1134cm2/175.8in2
Fs : 35Hz
Mms : 316g/11.18oz
Qms : 8.712
Qes : 0.300
Qts : 0.290
Re : 5.0Ω
Vas : 119.3l/4.21ft3
BI : 33.8Tm
Cms : 0.065mm/N
Rms : 7.99kg/s
Le(at 1kHz) : 3.06mH
Xmax : 15mm/0.47in
Xmech : 40mm/1.57in
Efficiency η :01.8%
Mounting Information
Overall diameter : 460mm/18.1in
Overall depth : 235mm/9.5in
Cut-out diameter : 414mm/16.29in
Mounting hole dimensions : 7x11mm/0.28x0.43in
Number of mounting holes : 8
Mounting hole PCD : 432-441mm/17.04-17.36in
Flange & gasket thickness : 17mm/0.67in
