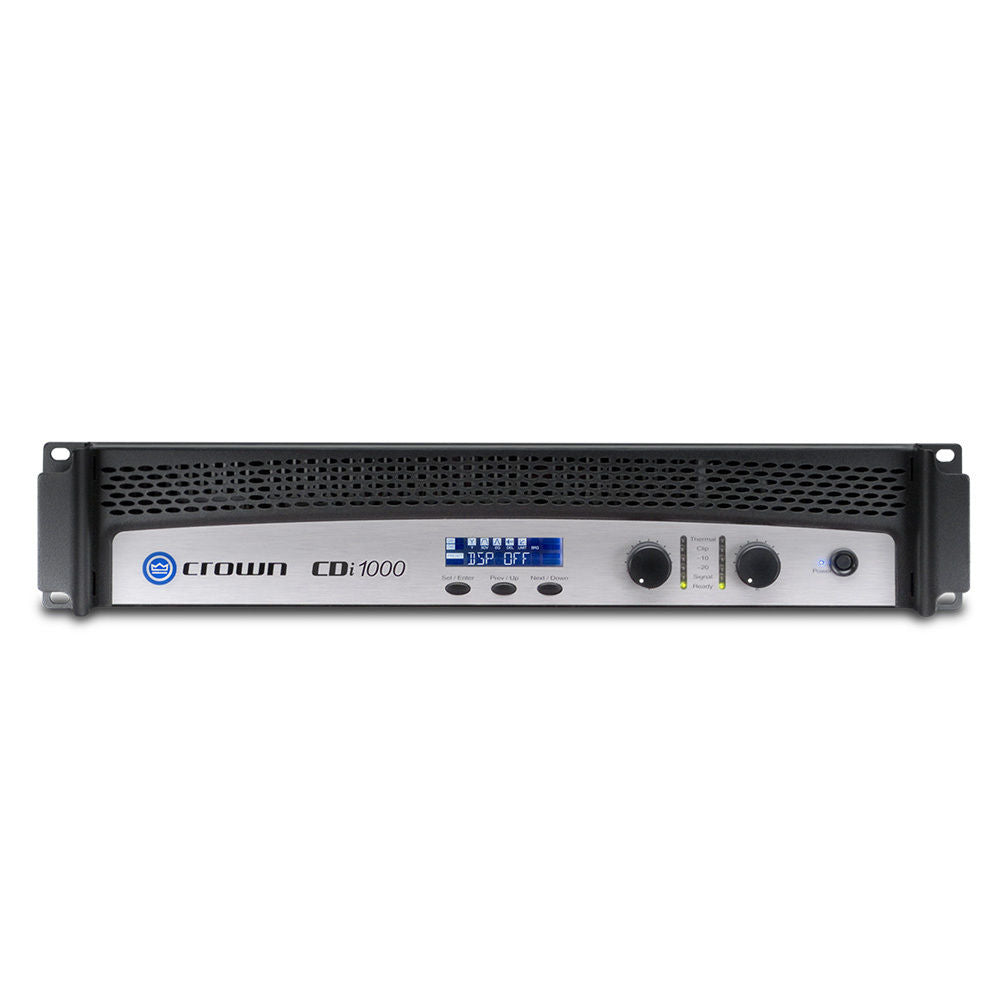

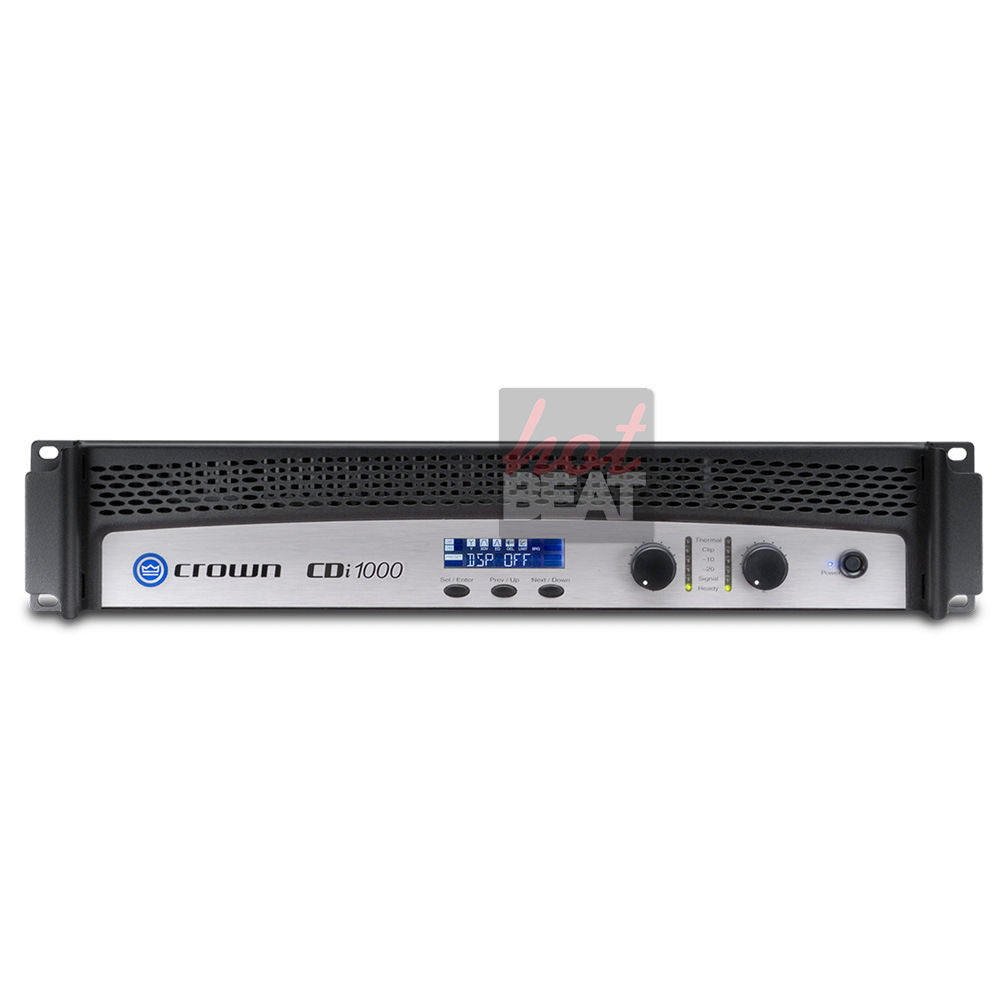

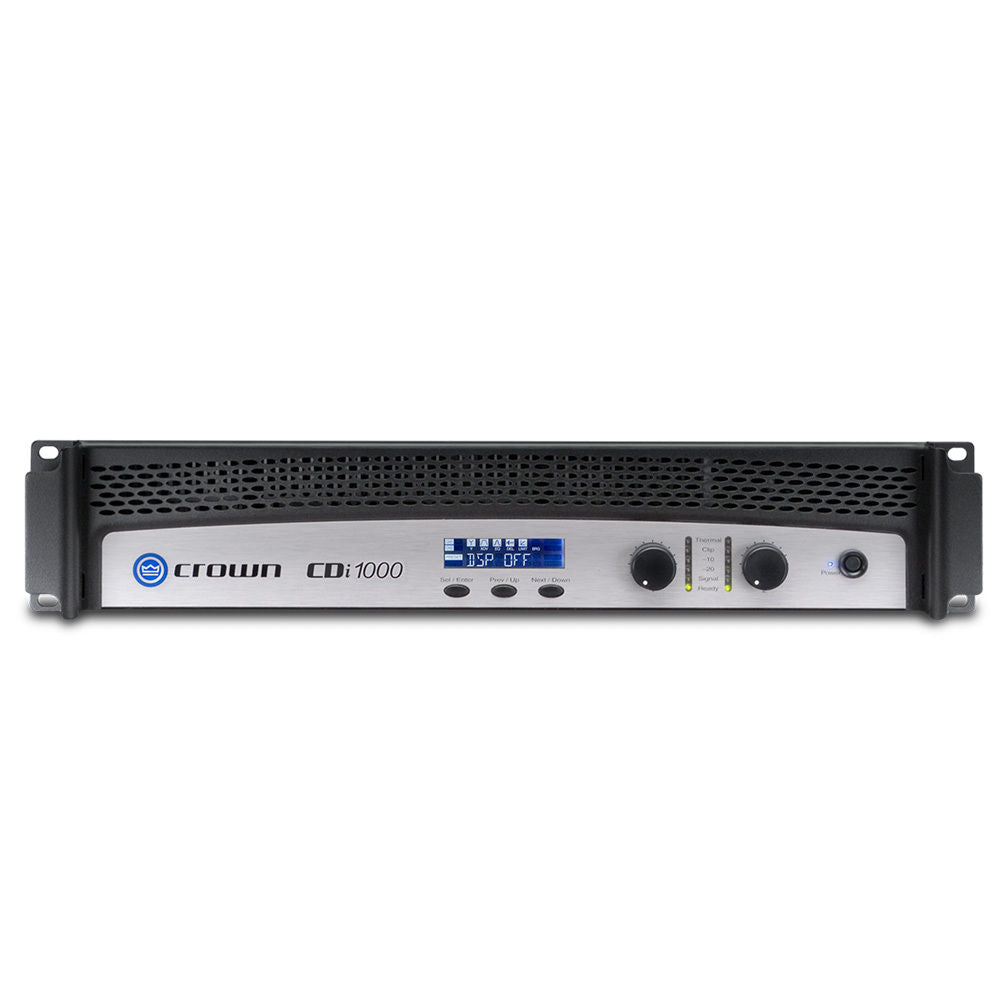

The CDi 1000 from Crown Audio is a rugged, lightweight amplifier designed for installed audio applications. CDi stands for "Contractor Digital Intelligence". The CDi 1000 provides accurate, uncolored sound with low distortion for excellent music and vocal reproduction. It also handles a wide range of speaker impedances and outputs, making it very versatile.
Advanced protection circuitry guards against shorted outputs, open circuits, DC, mismatched loads, general overheating, high-frequency overloads and internal faults. The CDi 1000 also has integrated DSP presets for crossover frequencies, EQ, limiting, compression, delay, and a subharmonic synthesizer. A backlit LCD displays relevant information.
- Rugged and lightweight steel construction
- Operates in dual or bridge-mono modes
- Rack mountable
- Excellent sound reproduction with low distortion
- Advanced protection circuitry protects against overheating, overloads, and shorts
- Switch-mode universal power supply
- Wide range of speaker impedances and outputs
- Backlit LCD
- Integrated DSP
| Frequency Response | 20Hz - 20kHz (@ 1W into 4 Ohms) |
| Sensitivity | 1.4V @ 8 Ohms |
| Signal to Noise Ratio | 100dB |
| Voltage Gain | 30.5dB (@ 1kHz, 8 Ohm Rate Output) |
| Load Impedance | Rated for 2-8 Ohms in Stereo Mode Rated for 4-16 Ohms in Bridge-Mono Mode |
| Input Impedance | 20 kOhms (Nominal) |
| Output Power | 700W @ 2 Ohm Dual (Per Channel) 500W @ 4 Ohm Dual (Per Channel) 275W @ 8 Ohm Dual (Per Channel) 1400W @ 4 Ohm Bridge-Mono 500W @ 70V Dual (Per Channel) 1000W @ 140V Bridge-Mono |
| Damping Factor | Better than 500 from 20 to 400Hz |
| Crosstalk | >70dB Below Rated Power, 20Hz to 1kHz |
| Max Input Signal | +22dBu Typical |

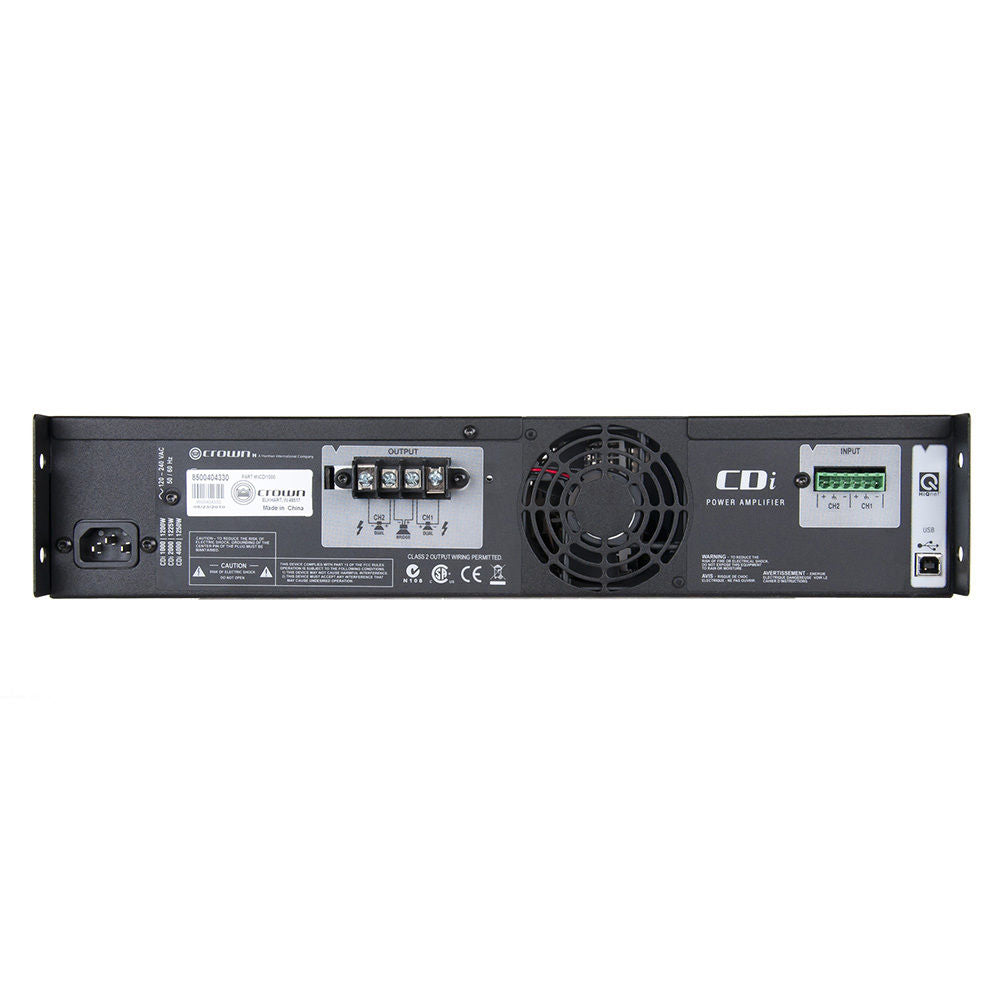

| Inputs | 2 x 3-Pin Removable Phoenix-Type |
| Outputs | 4-Position Barrier Strip with Connectors for Dual Loudspeakers or Bridge-Mono Loudspeaker |
| Power | 100V, 120V-240V, 50/60 Hz |
| Dimensions (WxHxD) | 19 x 3.5 x 12.25" (483 x 89 x 311mm) |
| Weight | 19 lb (8.6 kg) |
| Packaging Info | |
|---|---|
| Package Weight | 23.0 lb |
| Box Dimensions (LxWxH) | 22.25 x 19.0 x 7.0" |
