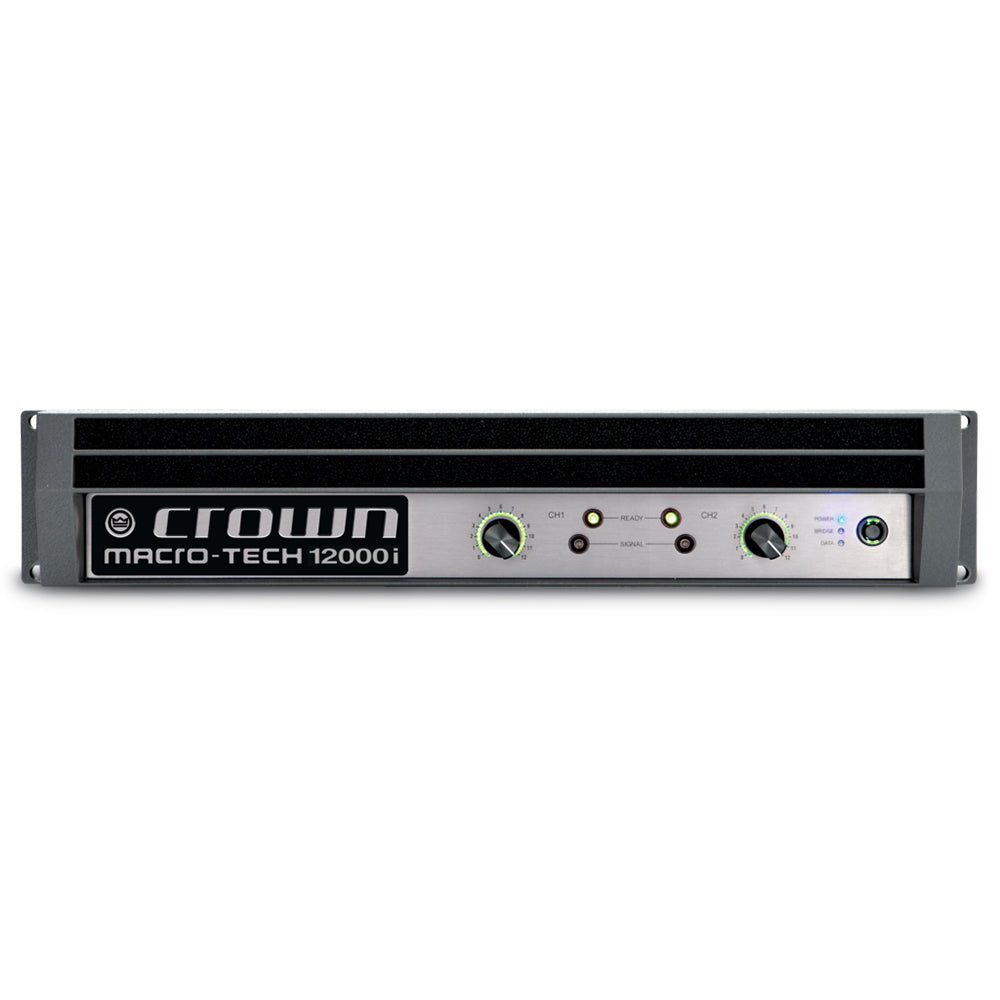

Crown Audio Macro-Tech MA12000i Front View

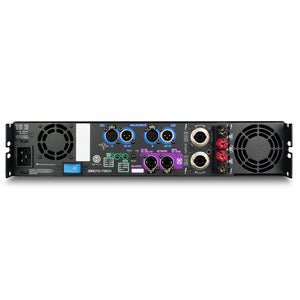

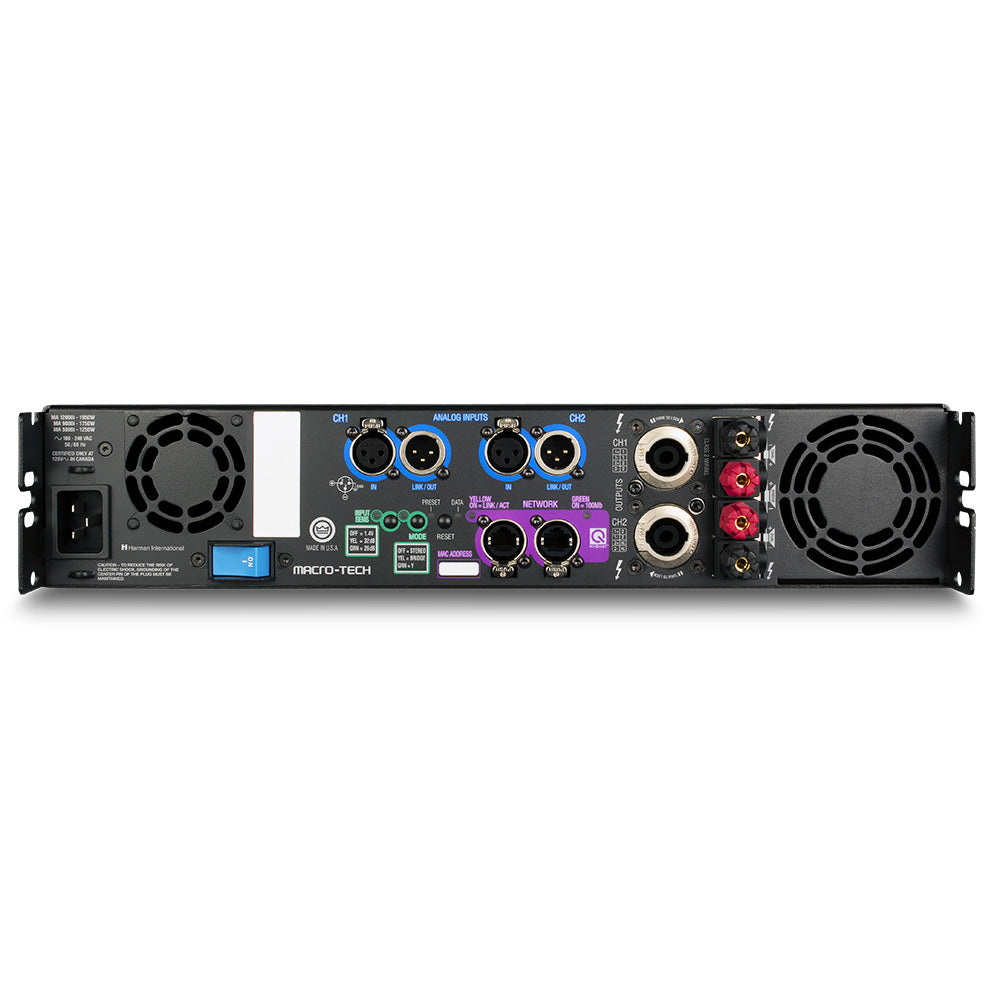

Crown Audio Macro-Tech MA12000i Rear View

Crown Audio Macro-Tech MA12000i 2 Channel Professional Stereo Touring Amplifier 100-240V

Regular price
Sold out
Sale price
$ 7,999.00
Unit price
per

The Crown Macro-Tech i Series offers amazing power, light weight and ease of use for touring sound applications. The series includes onboard analog signal processing and a built-in network connection.

FEATURES

  • The Macro-Tech i Series continues the Macro-Tech legacy of unparalleled sonic accuracy and detail, putting sound quality above all else
  • Patented, cutting-edge Class-I circuitry gets more power out of an amplifier with less waste
  • Rugged construction ensures that all Macro-Techs are built to withstand years of abuse on the road
  • Global Power Supply — designed to deliver maximum power no matter what country you work in
  • Built-in load, line voltage, input and output monitoring
  • Standard Ethernet networking via System Architect® lets system operators monitor and control the amplifier from any location

SPECIFICATIONS

Frequency Response ± 0.25dB
Signal to Noise Ratio > 112dB
THD < 0.1%
THD+Noise < 0.1%, 20Hz to 20kHz
Intermodulation Distortion < 0.35%
Damping Factor > 5000
Crosstalk > 80dB
Common Mode Rejection > 70dB Typical
DC Output Offset < ±3mV
Input Impedance 20kΩ balanced, 10kΩ unbalanced
Maximum Input Level +20dBu Typical
Load Impedance Stereo: 1/2/4/8/16Ω; Bridge: 2/4/8Ω
Input Sensitivity 1.4Vrms, 32dB gain, 26dB gain
Voltage Gain 39.3dB to 24.5dB
Required AC Mains (+/- 10%) Universal AC input, 100-240VAC, 50/60Hz
Dimensions 19" x 3.5" x 16.2" (48.3 cm x 8.9 cm x 41.1 cm)
Net Weight 28 lbs (12.7 kgs)
Shipping Weight 36 lbs (16.3 kgs)
IEC Power Connector 20A
