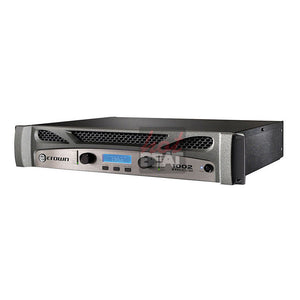

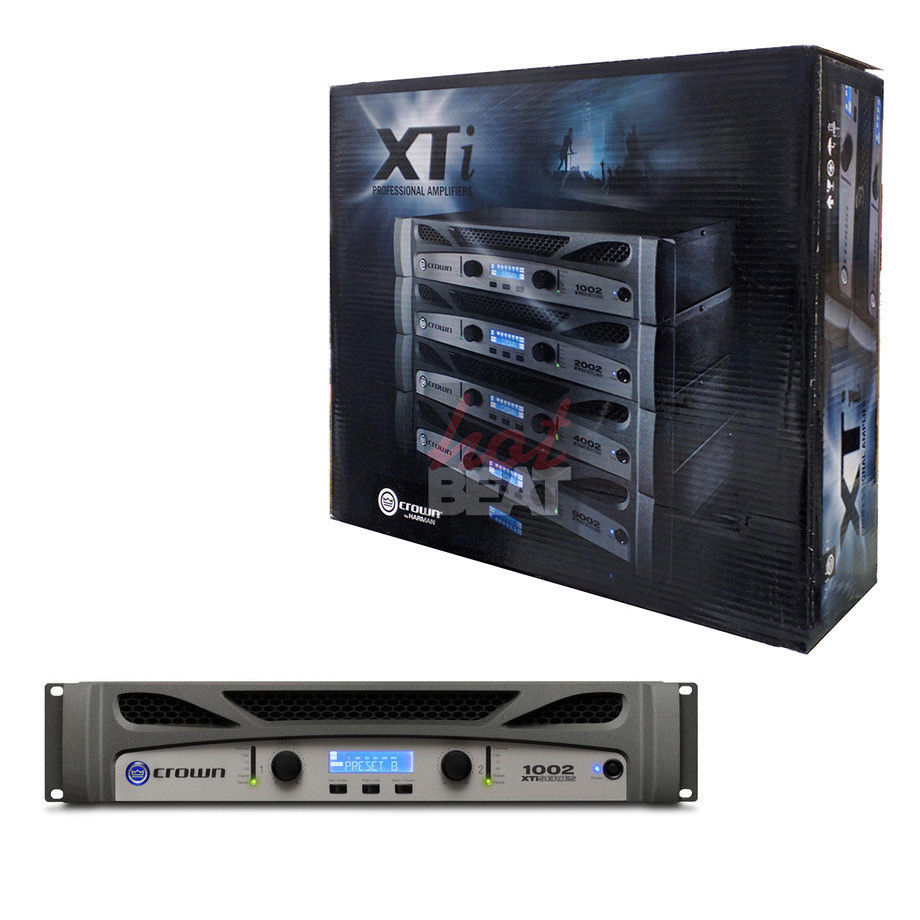

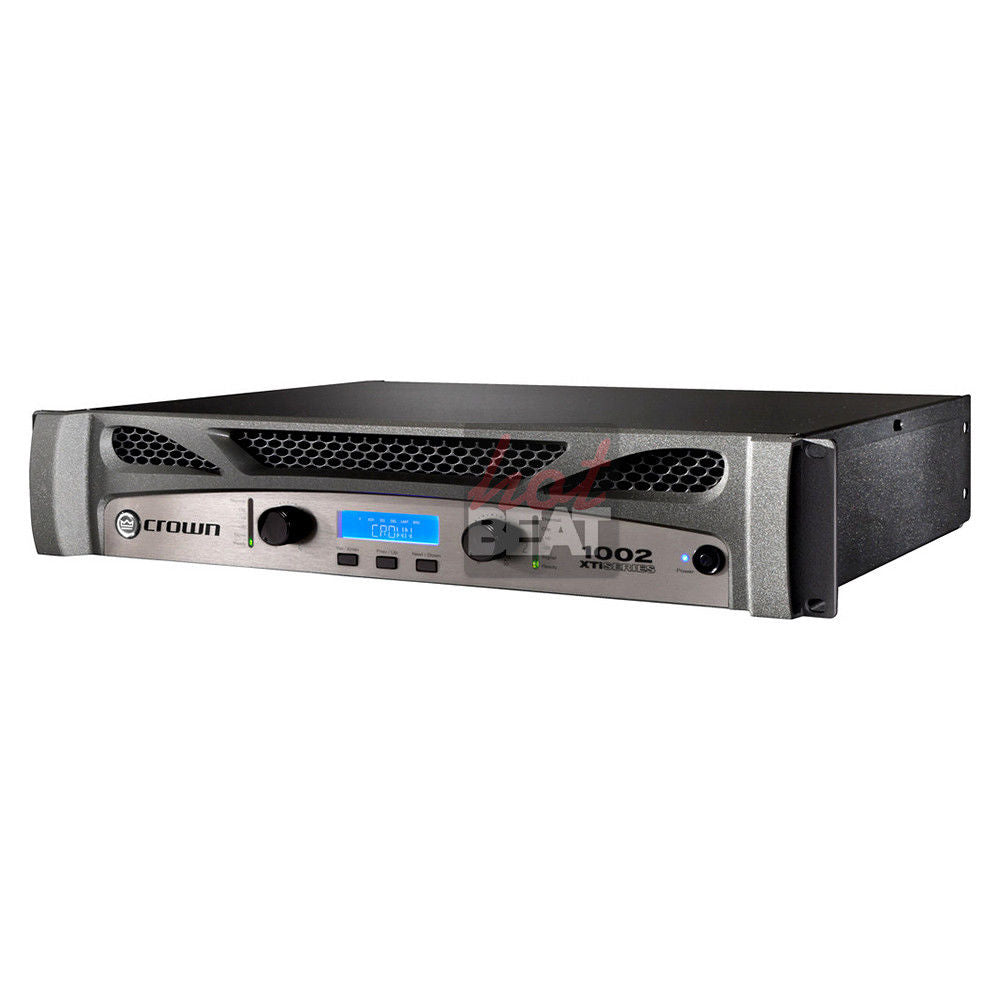

Crown XTI 1002 Power Amplifier DSP Global Voltage 120V 220-240V 871015005232
The Crown XTi 1002 Power Amplifier delivers up to 275W per channel at 8 ohms and is an ideal solution for sound reinforcement, nightclub installation, bands, theaters, DJ applications and much more. The XTi 1002 offers highly accurate sound reproduction with very low distortion, perfect for music or voice playback. It has a switch-mode universal power supply so it can be used anywhere. It handles a wide range of speaker impedances and outputs for a high degree of system compatibility.
An array of serious control features are implemented and easily accessed via the included HiQnet Band Manager & System Architect software packages. Crown's Peak Plus Limiters provide the ultimate in system performance and protection. There are 3 user-defined fan modes, adjustable EQ, adjustable crossover filters and much more.
Peak Plus Limiters provide the ultimate in system performance and protection by allowing full control over threshold, attack, and release
Enhanced Subharmonic Synth section provides user control over frequency, gain and filter type for system-specific tuning
3 User-defined fan mode controls - normal, early and fullspeed - for matching fan performance to a specific application
New system monitoring provides software visibility of AC line voltage and power supply temperature
Integrated cast-aluminum handles for easy handling and enhanced durability
Locking power cord clip provides a secure connection between the amplifier and power cord
Updated HiQnet Band Manager and System Architect control software
Increased number of presets to a total of 30; 29 of which are user definable
700W @ 2 Ohms Stereo (per Channel)
500W @ 4 Ohms Stereo (per Channel)
275W @ 8 Ohms Stereo (per Channel)
1400W @ 4 Ohms Bridged-Mono
1000W @ 8 Ohms Bridged-Mono
Damping Factor 20Hz to 1kHz > 500
Input Sensitivity 1.4Vrms
Input Impedance 20k Ohms (Balanced)
10 kOhms (Unbalanced)
Gain 32.9dB @ 1kHz, 8 Ohm Rated Output
Frequency Response (at 1 watt, 20Hz - 20kHz) +0dB, -1dB
Signal-to-Noise Ratio XTi1002/2002/4002: 100dB (A weighted)
XTi6002: 103dB (A weighted)
Total Harmonic Distortion (THD) < 0.5%

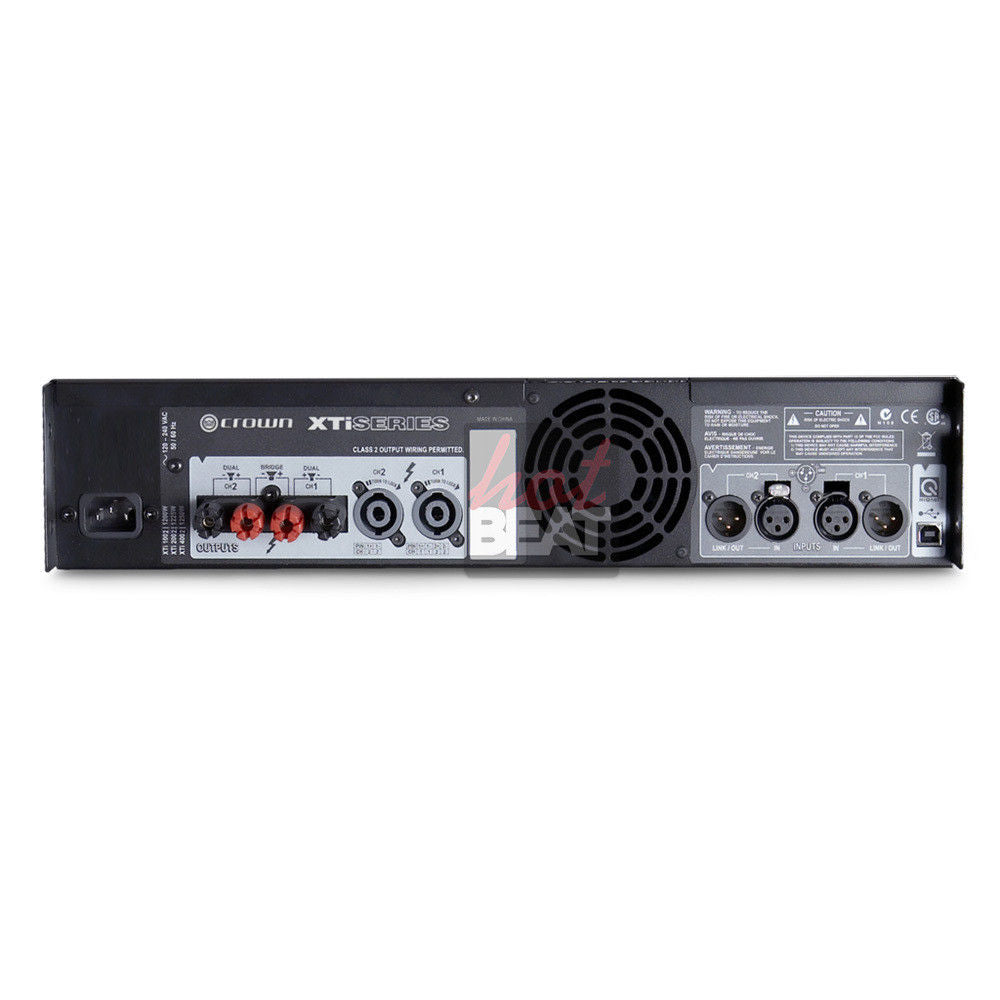

Connections Input Connectors: XLR, one per channel
Link/Out Connector: Loop-thru signal from input connector for linking another amplifier, one per channel.
Output Connectors: Two Neutrik Speakon NL4MP output connectors. Channel-1 Speakon is wired with Ch. 1 and Ch. 2 outputs for use with optional single 4-conductor cable. Two binding post outputs (in parallel with Speakon connectors).
HiQnet USB Connector: Type B, connects to HiQnet network.
Controls Front Panel Level: Two front-panel rotary level controls, one for each channel
Power Switch: On/Off switch applies AC power to the amplifier
Sel/Prev/Next Buttons: Three buttons near the LCD screen that are used to access menu items and front panel lockout
LCD Screen: Backlit liquid crystal display that shows preset and processing status
Indicators Signal Indicator: Green LED, one per channel, illuminates when a very low-level signal is present at input (may be used for troubleshooting cable runs).
-10 Indicator: Green LED flashes when output signal exceeds -10 dB below clip.-20 Indicator: Green LED flashes when output signal level exceeds -20 dB below clip
Ready Indicator: Green LED, one per channel, illuminates when the amplifier is ready to produce audio.
Clip Indicator: Red LED, one per channel, turns on at the threshold of audible distortion
Temp Indicator: Red LED, one per channel, illuminates under excessive temperature conditions
Power Indicator: Blue LED illuminates when the amplifier has been turned on and has power
Cooling Proportional speed fan with front-to-rear airflow.
Power Consumption 6.8A; no more than 38W at idle
Power Requirements 100 VAC, 120 VAC, 220-240 VAC 50/60 Hz
Dimensions 19 x 3.5 x 12.25" (48.26 x 8.89 x 31.11cm)
Weight 18.5 lbs (8.4kg)
Specialties DSP Includes EQ, Crossover Filters, Delay, and Subharmonic Synthesizer
Protection for Short Circuits, Overloads, and Overheating
