DBX 223s Stereo 2-way Mono 3-Way Crossover 691991401251 FAST GROUND SHIPPING

  • 12499

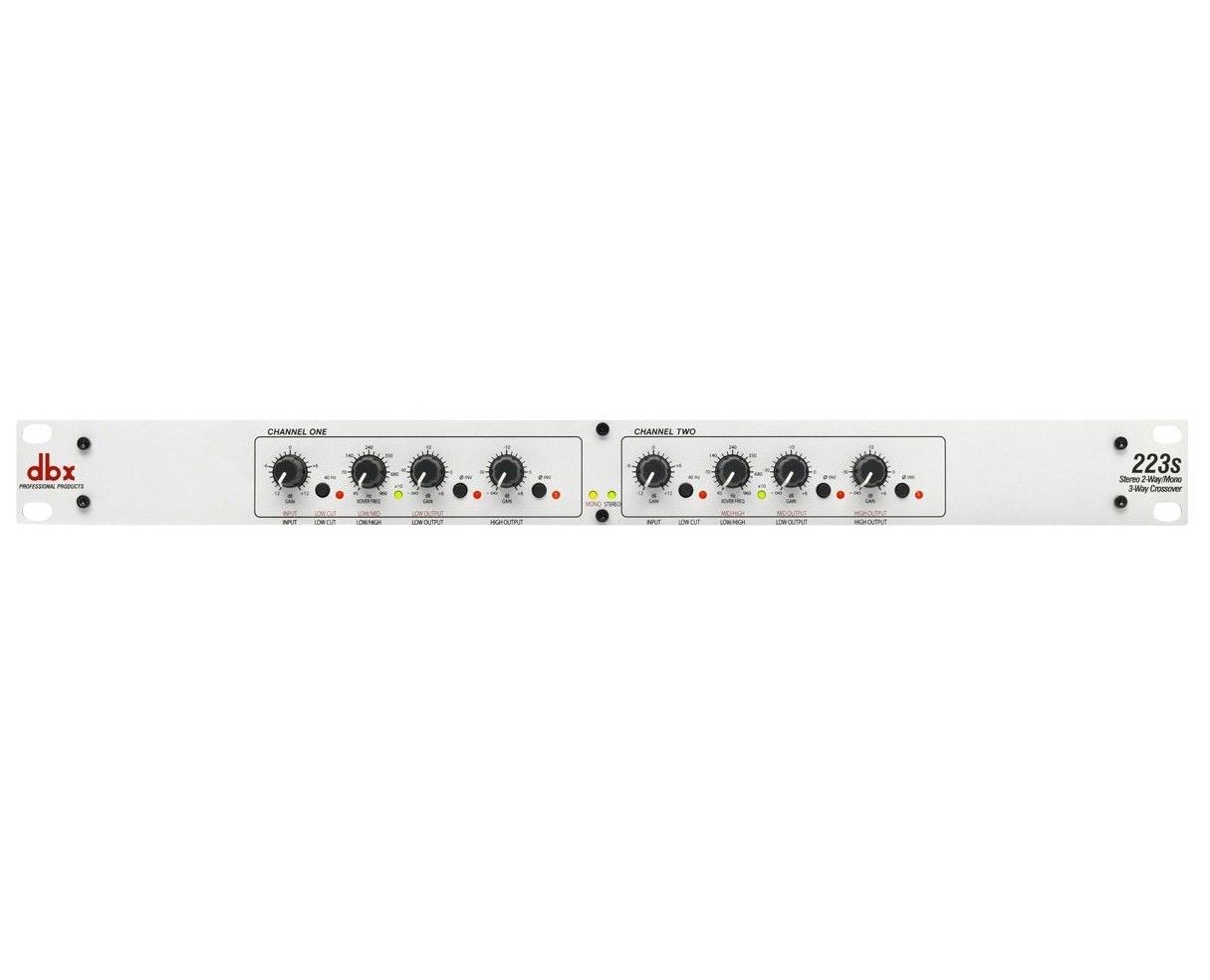

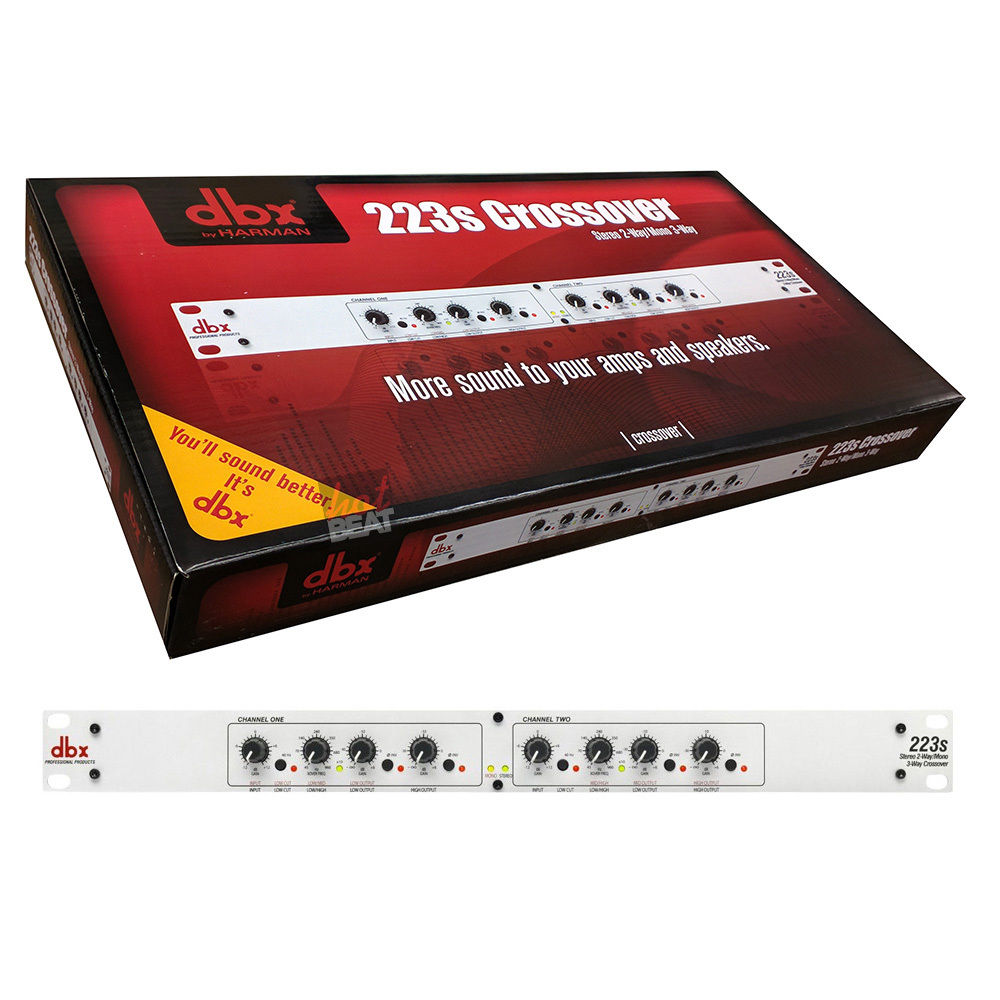

The 223s from dbx is a dual channel, stereo 2-way or mono 3-way crossover. A crossover is essential for efficient PA operation because it filters the full band input signal into specific frequencies that match a speaker's optimum frequency-reproduction range. This leaves the amplifier free to use its full power on the usable signal, eliminating distortion and delivering clear sound.

The unit features Linkwitz-Riley 24dB per octave filters, independent output gain controls for level matching, output phase inversion, 40Hz low cut filter, and optional mono summing of the low frequency (subwoofer) output. Quality components and meticulous attention to detail offers exceptional sound and rugged reliability, while exuding great precision from the solid "click" controls to the high quality 1/4" TRS inputs and outputs.

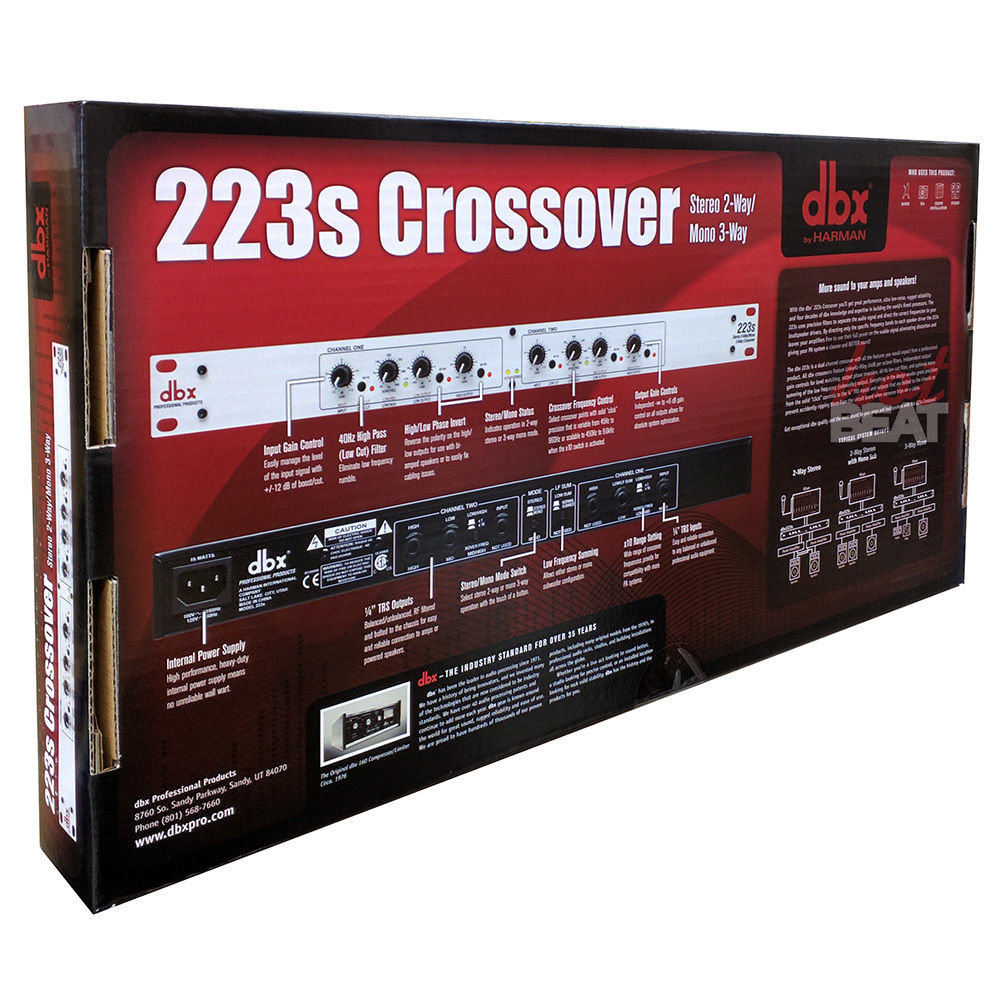

Stereo 2-way, mono 3-way crossover
Mode switch for stereo 2-way or mono 3-way operation
24dB per octave Linkwitz-Riley filters
Low frequency summed (subwoofer) output
Range switch on both channels (x10)
40Hz high-pass (low-cut) filter on both channels
Phase reverse switch on all outputs
Individual level controls on all outputs
Stereo/Mono status LEDs indicate the selected mode
1/4" TRS differentially balanced ins and outs
CSA NRTL/C approved and CE compliant

Filter Type Linkwitz-Riley, 24 dB/octave, state-variable
Operating Modes Stereo 2-way, switchable to mono 3-way
Crossover Frequencies Stereo Mode - Low/High: 45 to 960Hz or 450Hz to 9.6kHz (x10 setting)
Mono Mode - Low/Mid: 45 to 960Hz or 450Hz to 9.6kHz (x10 setting)
Mono Mode - Mid/High: 45 to 960Hz or 450Hz to 9.6kHz (x10 setting)
Inputs 2 x 1/4" TRS phone
Input Impedance 50kΩ balanced, 25kΩ unbalanced
Maximum Input Level >+22dBu balanced or unbalanced
Outputs 4 x 1/4" TRS phone
Output Impedance 200Ω balanced, 100Ω unbalanced
Maximum Output Level >+21dBu balanced/unbalanced into 2kΩ or greater
Frequency Response FR: <3Hz to >90kHz, +0/-3.0dB
Bandwidth: 20Hz to 20kHz, +0/-0.5dB
Dynamic Range >106dB unweighted, any output
Noise SNR ref: +4dBu, 22kHz measurement bandwidth
Stereo Mode:
>94dB (low output)
>91dB (high output)
Mono Mode:
>94dB (low output)
>93dB (mid output)
>91dB (high output)
THD + N <0.004% @ +4dBu, 1kHz
<0.04% @ +20dBu, 1kHz
Crosstalk <-80dB, 20Hz to 20kHz
CMRR >40dB, typically >55dB @ 1kHz
Switches Low Cut (front panel)
Phase Invert (front panel)
x10 (rear panel)
Mode
LF sum
Indicators Stereo Operation
Mono Operation
Low Cut
x10
Phase Invert
Operating Temperature 32°F to 113°F (0°C to 45°C)
Power Requirements 100VAC~50/60Hz, 120VAC~60Hz
15W power consumption
Dimensions (WxHxD) 19 x 6.9 x 1.75" (483 x 175 x 45mm)
Weight 3.7 lb (1.7kg)
Packaging Info
Package Weight 7.05 lb
Box Dimensions (LxWxH) 21.8 x 11.4 x 2.6"
