dbx ZonePRO 640m 6x4 Digital Zone Processor DBX640MV

dbx ZonePRO 640m 6x4 Digital Zone Processor DBX640MV

Regular price
$ 979.00
Sale price
$ 825.00
Unit price
per

The dbx ZonePRO 640m is a digital zone processor with a fixed I/O, preconfigured architecture, configurable insert processing, and optional duplication of audio to an additional ZonePRO device via a link bus.

The unit features six inputs with four balanced mic/line switchable terminal block inputs and two unbalanced, mono-summed RCA input pairs. There is hardware-controlled microphone gain per channel. The pre-configured architecture has input processing with a central matrix and output processing. Two input insert positions and one output insert position allow channel-specific insert processing to be configured. AutoWarmth, a psychoacoustic function that maintains full frequency bandwidth even when the signal level has dropped, is permanently available on each output zone.

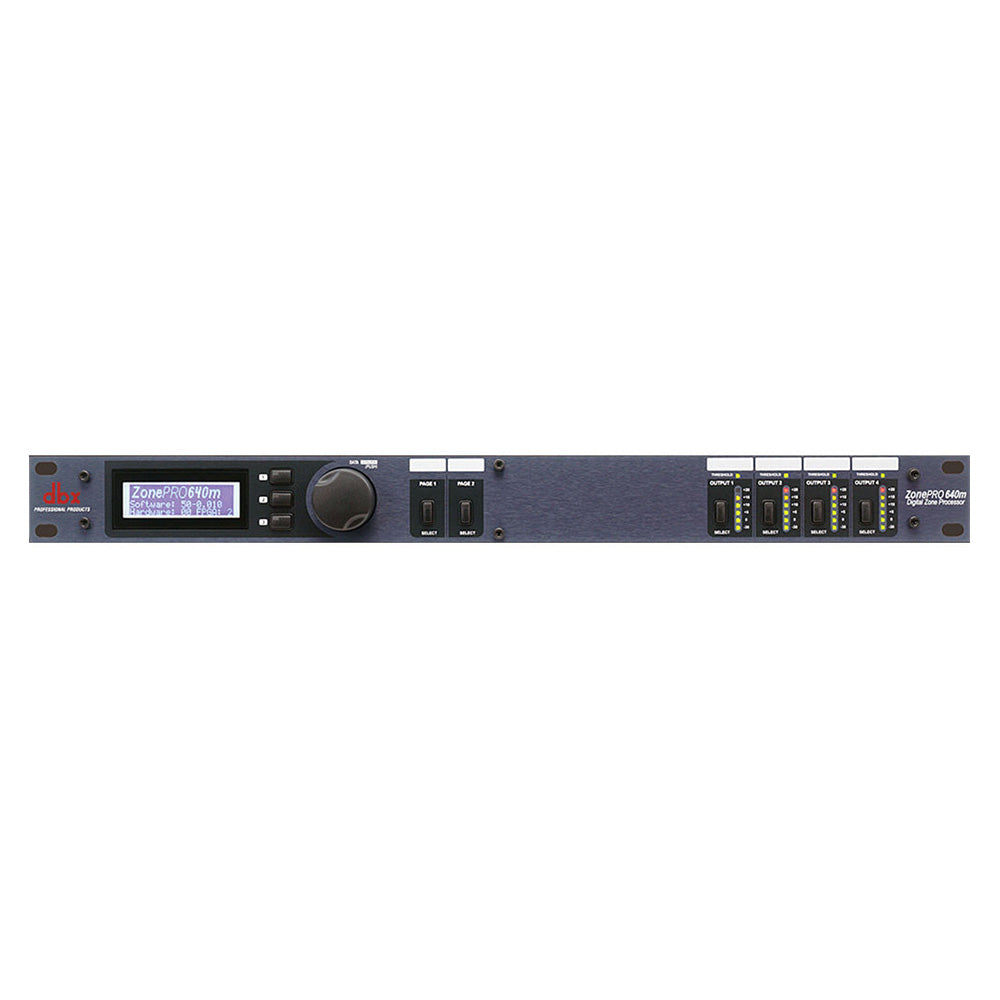

The front panel features comprehensive signal metering, a well-spec'd LCD display and user-specified front panel control. Additional system control is offered in the form of optional zone wall-controllers, which provide simple interfaces for functions such as volume, source, and preset control. All ZonePRO devices can be controlled by third party control systems via RS-232 or Ethernet as applicable. The Configuration Wizard within ZonePRO Designer guides users through the step-by-step configuration process of the 640m. The dbx ZonePRO 640m ships with a power cord, a set of rack screws, and an RS-232 modem cable.

Six inputs and 4 outputs
Four balanced mic/line inputs
Two unbalanced, mono-summed RCA input pairs
Microphone gain per channel
Preconfigured architecture
Two configurable input insert positions
One configurable output insert position
AutoWarmth per output zone
Link bus
comprehensive signal metering
Front panel LCD
User-specified front panel control
Optional ZC controllers
Ethernet control
Serial control
Third party control
Wizard-driven configuration



UPC / Barcode: 691991401169



Dbx 640m Specs / Product Specifications


Indicators
4 Independent Six-Segment Lightpipe Output Meters that Range from -30 to +20 dBu, Threshold Meters
LCD Display
LCD Display Provides Information About Source Selection, Page Steering, Zone Volume, and Mute
Inputs
Input: 6 Total (4) Switchable Mic or Line, (2) Unbalanced, Mono-Summed RCA Input Pairs
Input Connectors: Euroblock (Line and Mic) RCA (Source)
Input Type: Electronically Balanced / RF-Filtered
Input Impedance: Euroblock: >50 Kilohms Balanced, >25 Kilohms Unbalanced, RF Filtered; RCA: >25 Kilhms Unbalanced, RF Filtered
Max Input: +20 dBu Mic/Line, +12 dBu RCA
CMMR
>40 dB, Typically >55 dB at 1 kHz
Mic Gain Range
30 to 60 dB
EIN
Mic Preamp Equivalent Input Noise (EIN): < -118 dBu, 22 Hz to 22 kHz, 150-Ohm Source Impedance
Phantom Power for Mic Inputs
+15 VDC
Outputs
Output: 4 Total
Output Connectors: Euroblock
Output Type: Electronically Balanced, RF Filtered
Output Impedance: 120 Ohms Balanced, 60 Ohms Unbalanced
Max Output: +20 dBu
AD Conversion
dbx Type IV Conversion System
Dynamic Range
A/D Dynamic Range: (Line) >113 dB, A-Weighted, >110 dB Unweighted
Type IV Dynamic Range: >119 dB, A-Weighted, 22 kHz; BW: >117 dB, Unweighted, 22 kHz BW
Digital Output Dynamic Range: >114 dB A-Weighted, 110 dB Unweighted
D/A Dynamic Range: 112 dB A-Weighted, 109 dB Unweighted, 22 kHz BW
Dynamic Range: >109 dB A-Weighted, >106 dB Unweighted, 22 kHz BW
Sample Rate
48 kHz
THD+N
0.003% Typical at +4 dBu, 1 kHz, 0 dB Gain
Frequency Response
20 Hz to 20 kHz, ±0.5 dB
Inter-Channel Crosstalk
>80 dB Typical
Propagation Delay
0.6 ms
BTU
<92.13
Certifications
UL 600065, IEC 60065, EN 55013, E60065
Power
Operating Voltage: 120 VAC, 60 Hz
Power Consumption: 29 W
Dimensions
19 x 7.8 x 1.8" / 48.3 x 19.7 x 4.5 cm
Weight
6.1 lb / 2.7 kg



Packaging Info


Package Weight 8.23 lb
Box Dimensions (LxWxH) 22.1 x 11.4 x 3.5"
