DOD SR835 Harman Stereo 2-Way Mono 3-Way Professional 2/3-Way Crossover SR-835
DOD SR835 Harman Stereo 2-Way Mono 3-Way Professional 2/3-Way Crossover SR-835
DOD SR835 Harman Stereo 2-Way Mono 3-Way Professional 2/3-Way Crossover SR-835
DOD SR835 Harman Stereo 2-Way Mono 3-Way Professional 2/3-Way Crossover SR-835
DOD SR835 Harman Stereo 2-Way Mono 3-Way Professional 2/3-Way Crossover SR-835
DOD SR835 Harman Stereo 2-Way Mono 3-Way Professional 2/3-Way Crossover SR-835
DOD SR835 Harman Stereo 2-Way Mono 3-Way Professional 2/3-Way Crossover SR-835

DOD SR835 Harman Stereo 2-Way Mono 3-Way Professional 2/3-Way Crossover SR-835

Regular price
Sold out
Sale price
$ 199.00
Unit price
per

Filter Type Butterworth
Operating Modes Stereo 2-way, switchable to mono 3-way
Crossover Frequencies Stereo mode: 100Hz to 1kHz, or 1kHz to 10kHz (x10 setting)
Mono mode: Low/Mid - 100Hz to 1kHz, Mid/High - 1kHz to 10kHz
Gain Range Input level: 0dB to +15dB
Band gain: Off to +0dB
Front Panel Switches Mono/Stereo
2 x Range
Inputs 2 x 1/4" TRS phono
Output 5 x 1/4" TRS phono, 4 x 1/4" TS phono
Maximum Input Level +21dBu
Maximum Output Level +21dBu
Frequency Response 10Hz to 75kHz
Dynamic Range Not specified by manufacturer
Noise 90dB
Dimensions 1U rack, 5" deep
Specialties Built in power supply

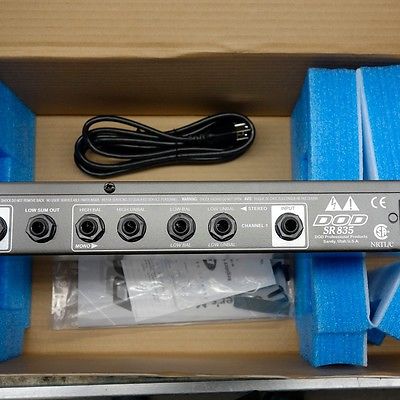

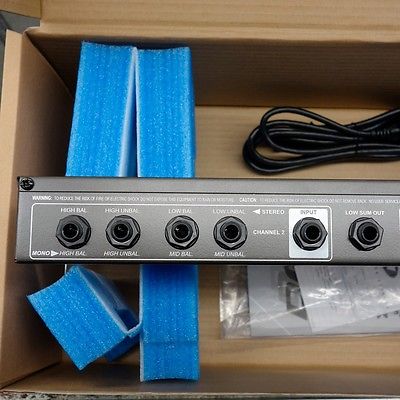

The SR835 is a stereo 2-way, mono 3-way crossover, switchable by means of a front-panel switch with LED indicator. It features 18dB/octave Butterworth filters. The inputs are electronically balanced and unbalanced on 1/4" TRS jacks, while the outputs consist of low and high outputs on both balanced 1/4" TRS and unbalanced 1/4" TS connectors. UPC: 691991100970

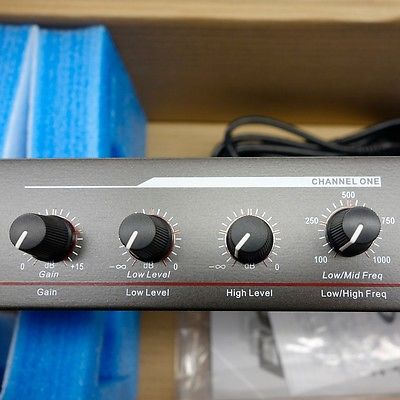

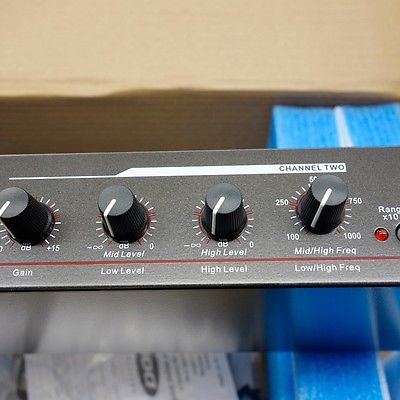

In stereo 2-way mode, each channel of the SR835 has a rotary input gain control, in addition to low and high output level controls. The low/high crossover frequency control per channel is variable from 100 Hz to 10 kHz in two ranges. A front panel LED indicator shows when the x10 range is engaged. When switched to mono 3-way mode, channel one's input gain control, low output level control, low/high frequency control, and x10 range switch are active, while the high output level is disabled. The low output level control remains the low output level control in mono mode and the low/high frequency control becomes the low/mid control.

A summmed mono low-output is provided on a balanced/unbalanced 1/4" TRS jack. The unit's power supply is mounted internally, and the transformer and primary side of the power supply are isolated from the secondary side, and the SR835's electronics, by means of a steel hum isolation shield. An optional security cover is available.

Stereo 2-way/mono 3-way crossover
18dB per octave filters
Front panel stereo/mono switch
x10 range switch on both channels
TRS balanced ins and outs
Low frequency summed (subwoofer) output
