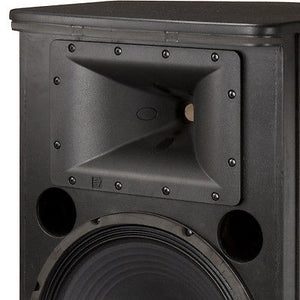

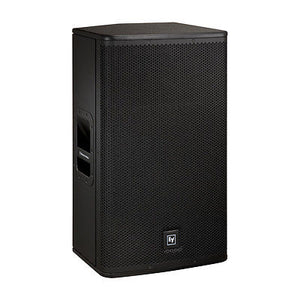

The ELX115P 15" Live X 2-Way Powered Loudspeaker from Electro-Voice offers pro-quality audio for sound reinforcement, PA, and stage monitoring applications. The speaker has a 15" woofer and a 1.5" titanium compression driver to provide crisp, natural audio with a wide frequency response. The speaker has a 1000W Class-D amplifier to provide a strong, distortion-free performance while keeping weight and heat to a minimum.
The plywood cabinet can be placed vertically or horizontally for terrific versatility, and it has a standard 35mm pole socket for creating stacks or mounting on top of a subwoofer. A pair of XLR/TRS combo inputs, a stereo RCA input, and an XLR link output allow you to connect to virtually any sound system. The steel grille protects the driver elements and provides a sleek look. Integrated carrying handles provide convenient transportation.

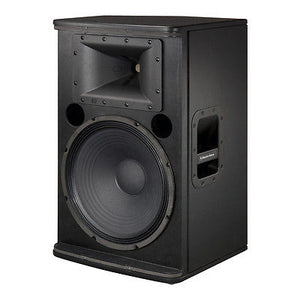

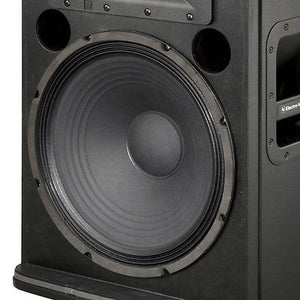

- The 15" woofer and a 1.5" titanium compression driver provide crisp, natural audio with a wide frequency response
- The speaker has a 1000W Class-D amplifier to provide a strong, distortion-free performance, while keeping weight and heat to a minimum without needing fans
- The plywood cabinet can be placed vertically or horizontally for terrific versatility for PA or stage monitoring applications
- The standard 35mm pole socket lets you create stacks or mount the speaker on top of a subwoofer

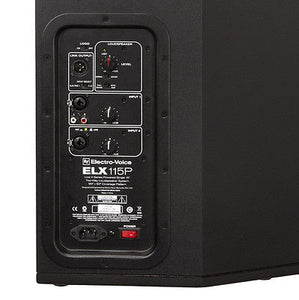

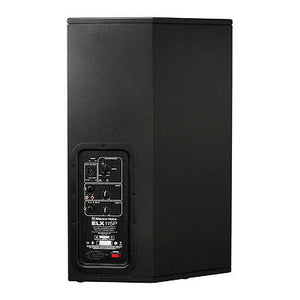

- A pair of XLR/TRS combo inputs, a stereo RCA input, and an XLR link output allow you to connect to virtually any sound system

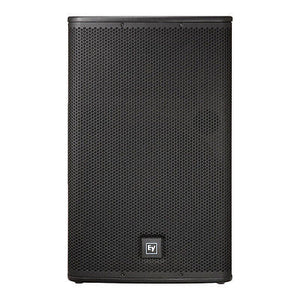

- The steel grille protects the driver elements and provides a sleek look
- Integrated carrying handles provide convenient transportation
| Active or Passive | Active |
| Frequency Response | 56Hz - 18kHz ±3dB 44Hz - 20kHz ±10dB |
| Amplifier | 1000W, Class-D |
| Maximum Sound Pressure Level (SPL) | 134dB |
| Nominal Sensitivity | Not Specified by Manufacturer |
| Crossover | 1.7kHz |
| Coverage | 90 x 50° (HxV) |
| Low Frequency Driver | 15" (381mm) Woofer |
| High Frequency Driver | 1.5" (39mm) Titanium Diaphragm Compression Driver |
| Enclosure Material | 9-Ply 15mm Plywood, Internally Braced with Textured Paint, 18-Guage Powder-Coated Steel Grille, and Integrated Handles |
| Input Connections | 2 x XLR/TRS Combo Inputs 1 x Stereo RCA Input (2 Jacks, L/R) 1 x XLR Link Output |
| Mounting | 35mm Pole Socket |
| Dimensions (HxWxD) | 27.87 x 17.01 x 15.04" (708 x 432 x 382mm) |
| Weight | 53.57 lbs (24.3kg) |
| Packaging Info | |
|---|---|
| Package Weight | 65.5 lb |
| Box Dimensions (LxWxH) | 31.0 x 18.0 x 17.5" |
