$ 60.00
$ 60.00

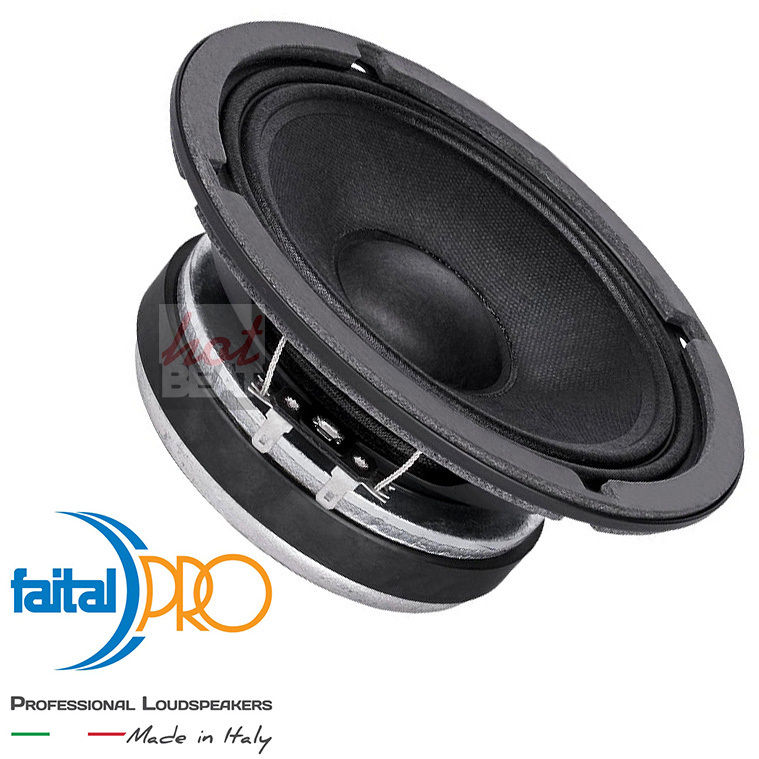

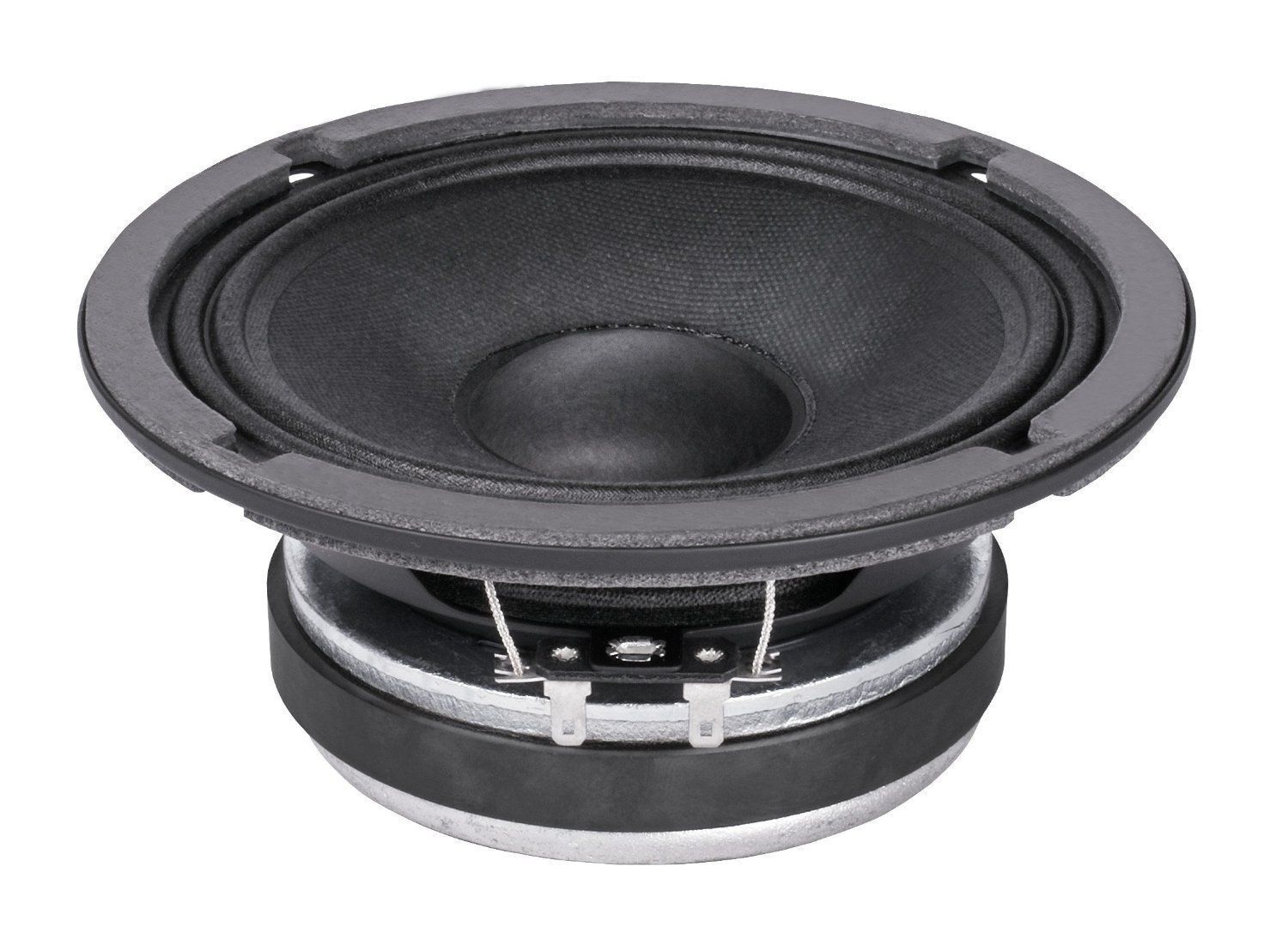

FaitalPRO's open back 6FE200 6" professional midrange speaker is purpose-built to cover the critical midrange in three-way speakers, but also works great as a door speaker in car audio applications. To ensure absolute signal fidelity, FaitalPRO built the 6FE200 with a strong ferrite ring-powered motor. Not only does this increase sensitivity, it keeps the Qts at a respectable figure of 0.67. Made in Italy.

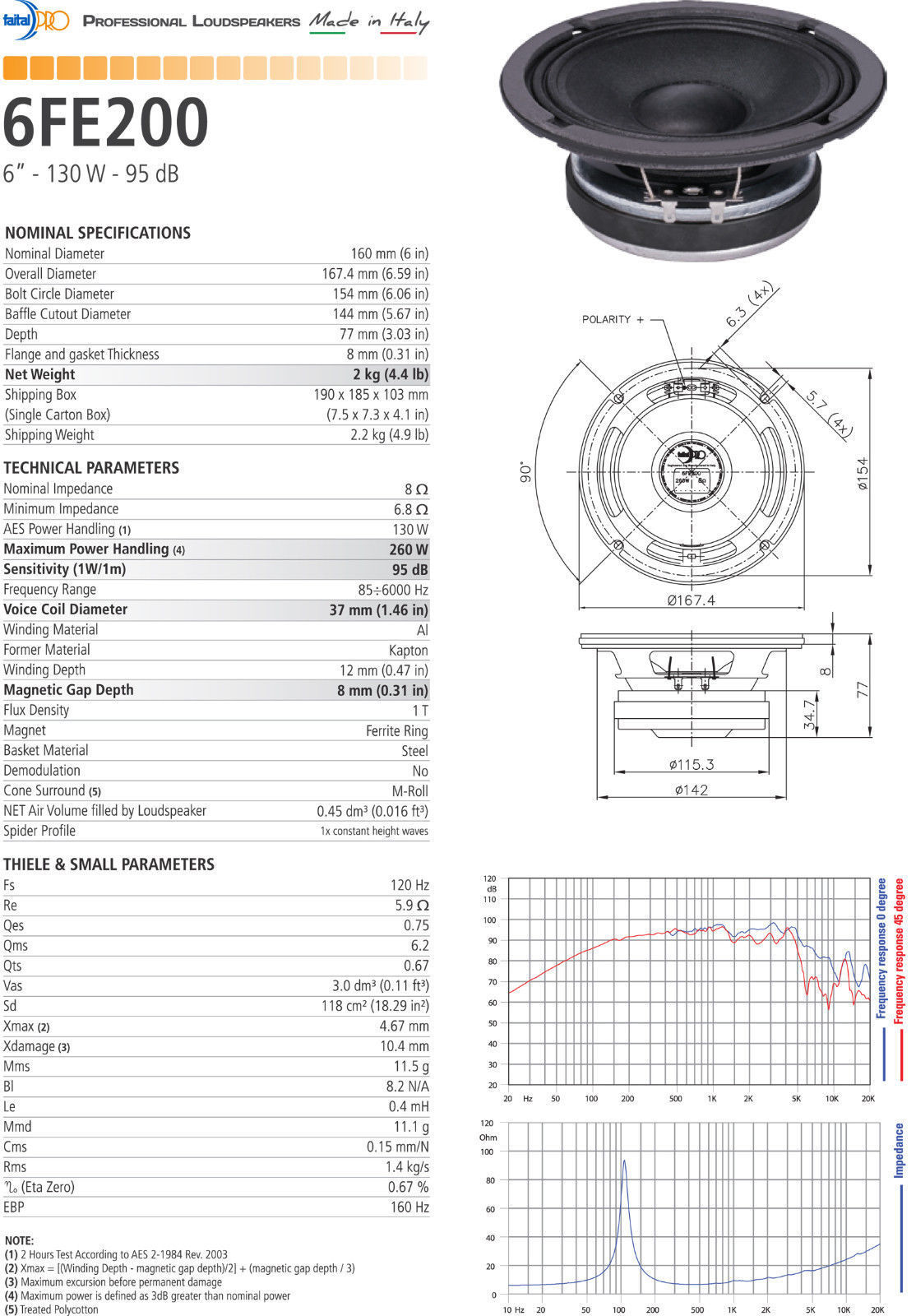

Nominal Specifications

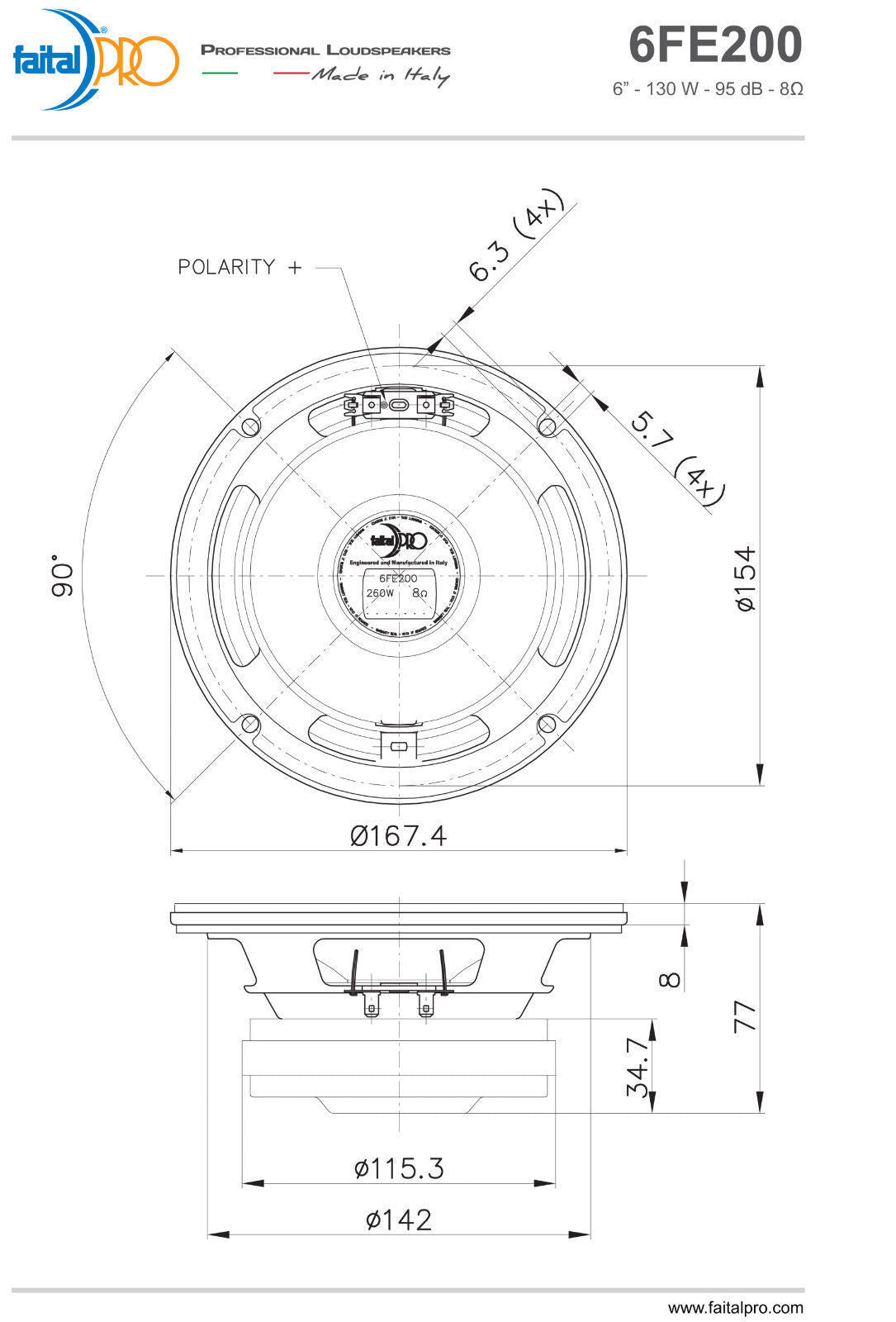

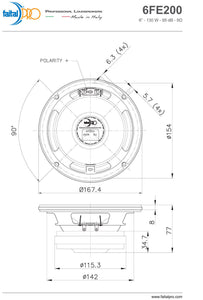

Nominal Diameter
160 mm (6 in)
Overall Diameter
167.4 mm (6.59 in)
Bolt Circle Diameter
154 mm (6.06 in)
Baffle Cutout Diameter
144 mm (5.67 in)
Depth
77 mm (3.03 in)
Flange and Gasket Thickness
8 mm (0.31 in)
Net Weight
2 Kg (4.4 lb)
Shipping Box
(Single Carton Box)
190 x 185 x 103 mm
(7.5 x 7.3 x 4.1 in)
Shipping Weight
2.2 Kg (4.9 lb)

Technical Parameters

Nominal Impedance
4 Ohm
Minimum Impedance
6.8 Ohm
AES Power Handling (1)
130 W
Maximum Power Handling (2)
260 W
Sensitivity (1W/1m)
95 dB
Frequency Range
85÷6000 Hz
Voice Coil Diameter
37 mm (1.46 in)
Winding Material
Al
Former Material
Kapton
Winding Depth
12 mm (0.47 in)
Magnetic Gap Depth
8 mm (0.31 in)
Flux Density
1 T
Magnet
Ferrite Ring
Basket Material
Steel
Demodulation
No
Cone Surround (3)
M-Roll
NET Air Volume filled by Loudspeaker
0.45 dm^3 (0.016 ft^3)
Spider Profile
1x constant height waves

Thiele and small parameters

Fs
120 Hz
Re
5.9 Ohm
Qes
0.75
Qms
6.2
Qts
0.67
Vas
3.0 dm^3 (0.11 ft^3)
Sd
118 cm^2 (18.29 in^2)
Xmax (4)
4.67 mm
Xdamage (5)
10.4 mm
Mms
11.5 g
Bl
8.2 N/A
Le
0.4 mH
Mmd
11.1 g
Cms
0.15 mm/N
Rms
1.4 Kg/s
Eta Zero
0.67 %
EBP
160 Hz
