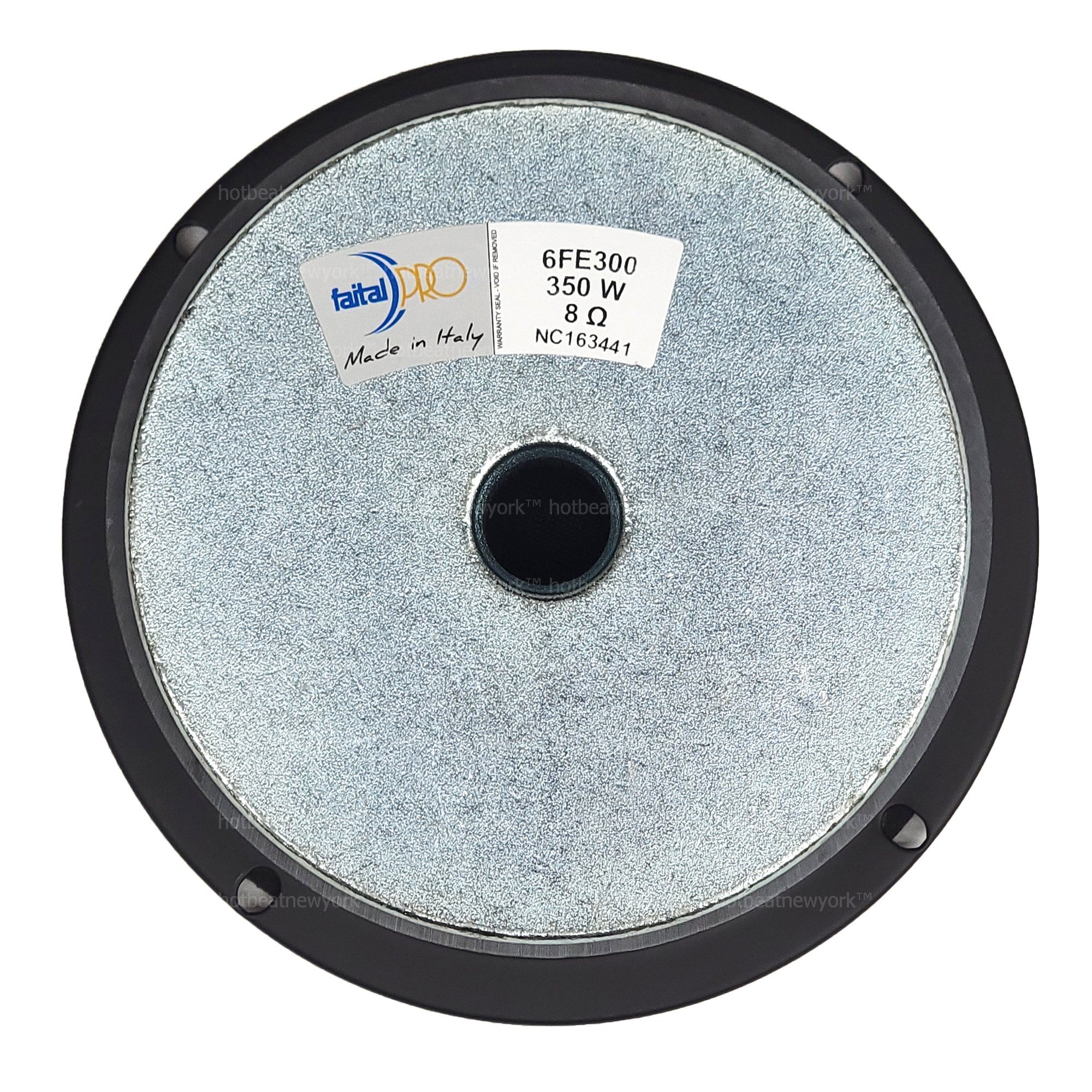

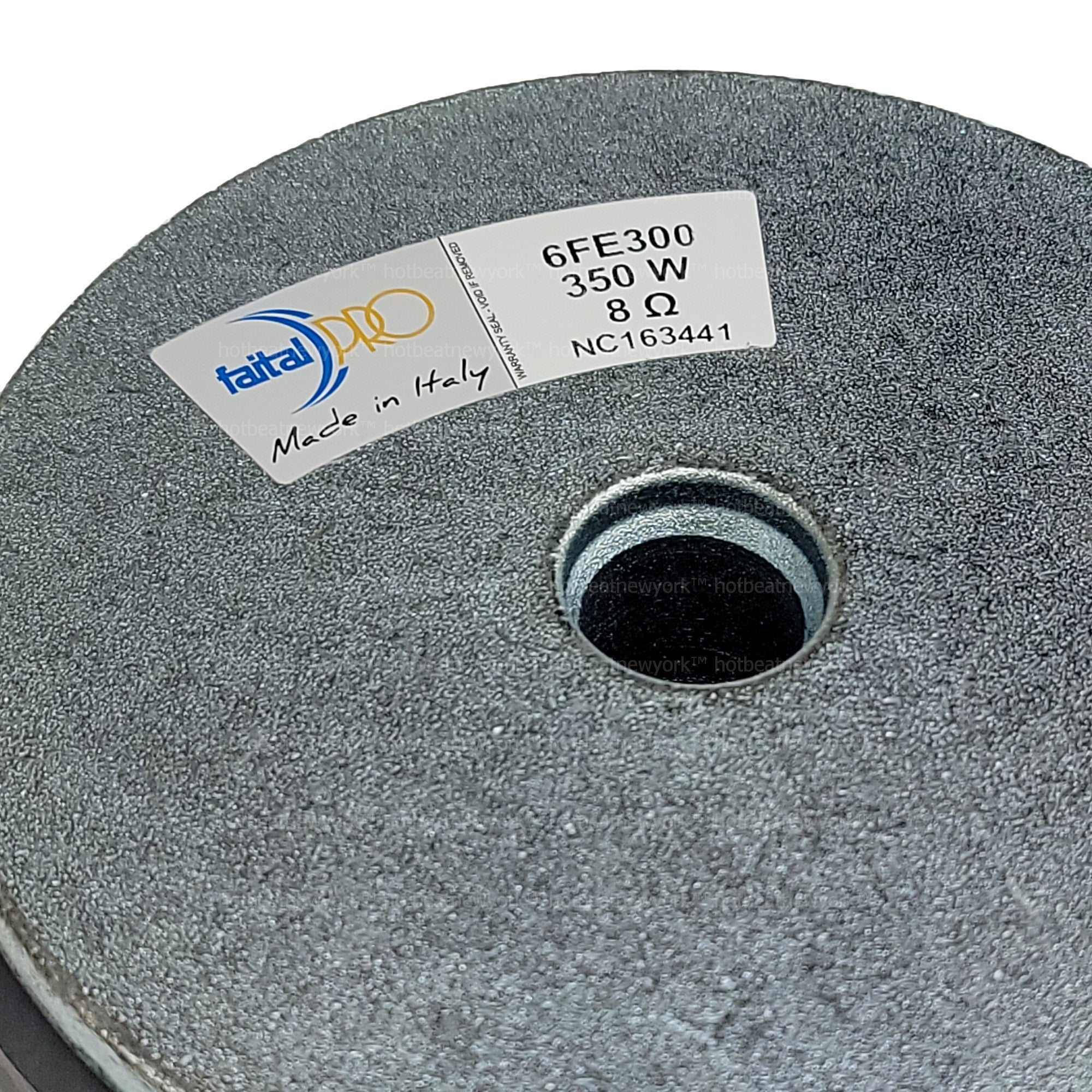

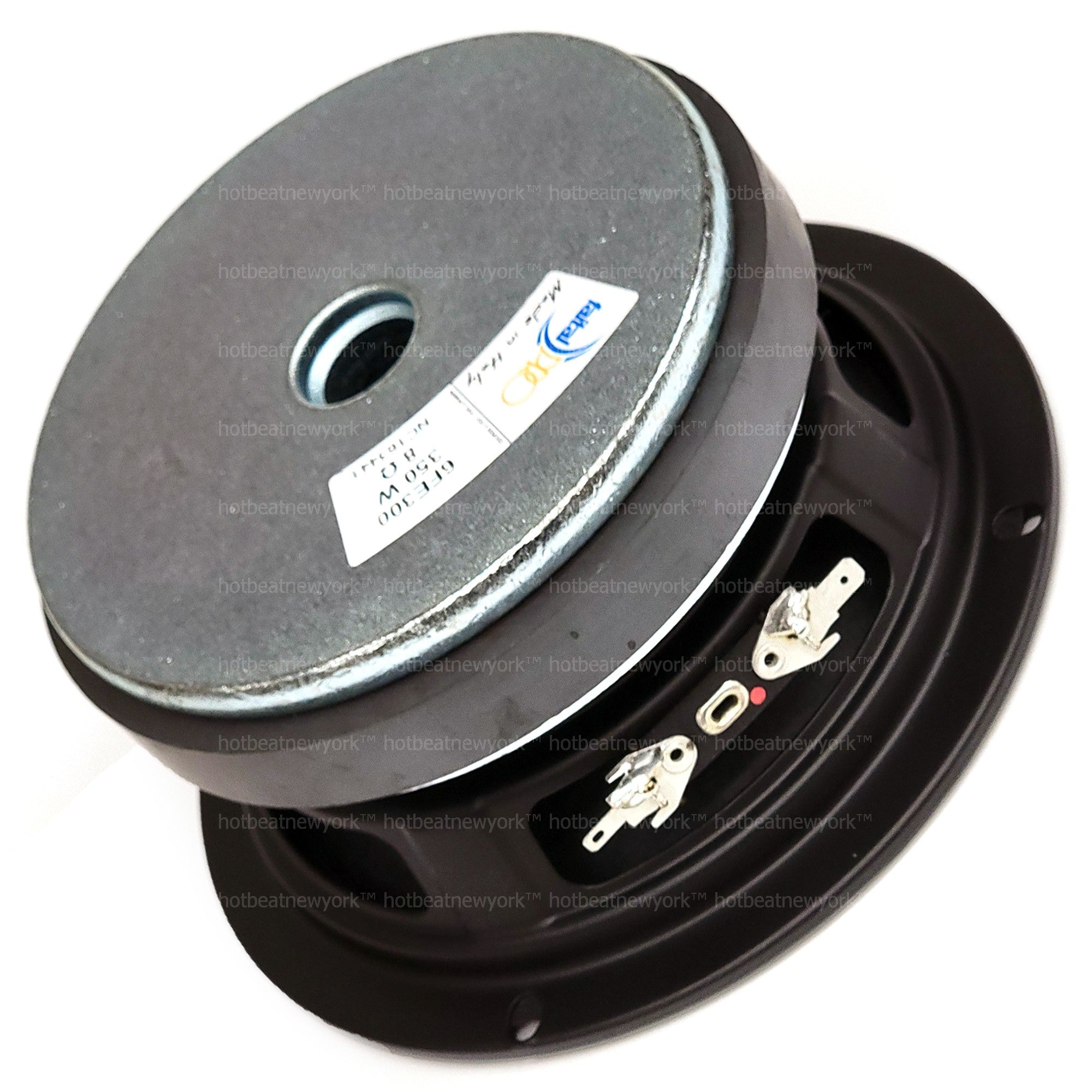

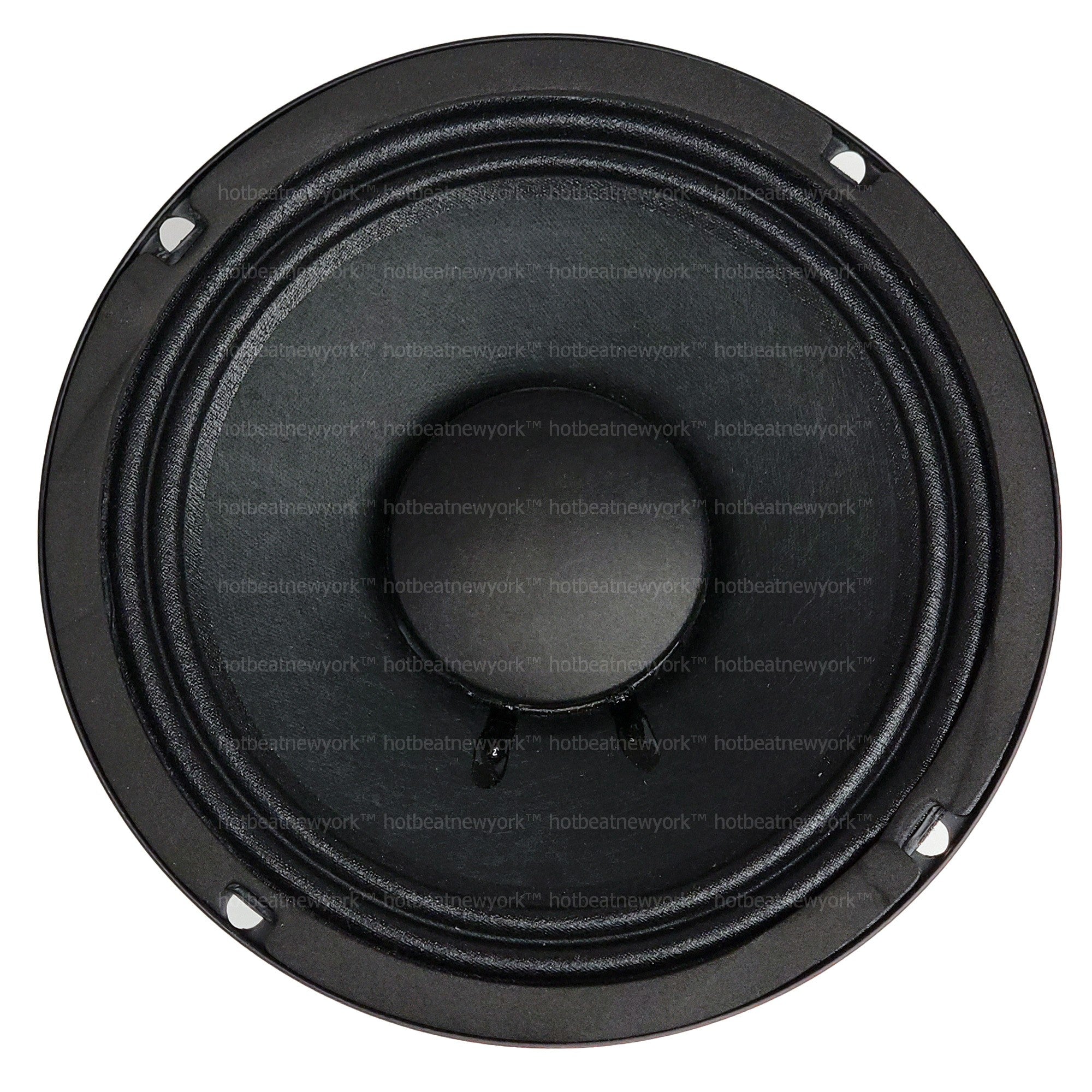

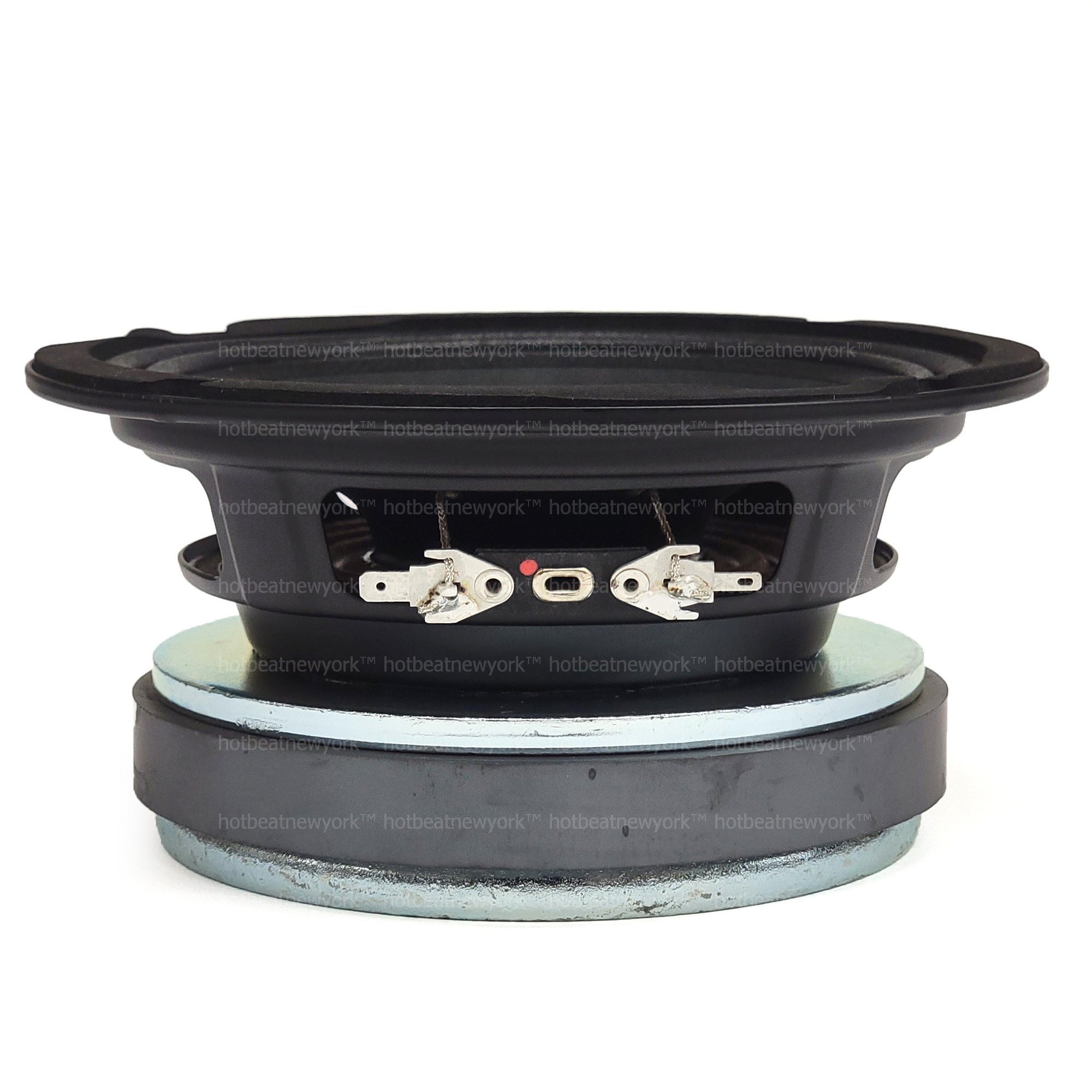

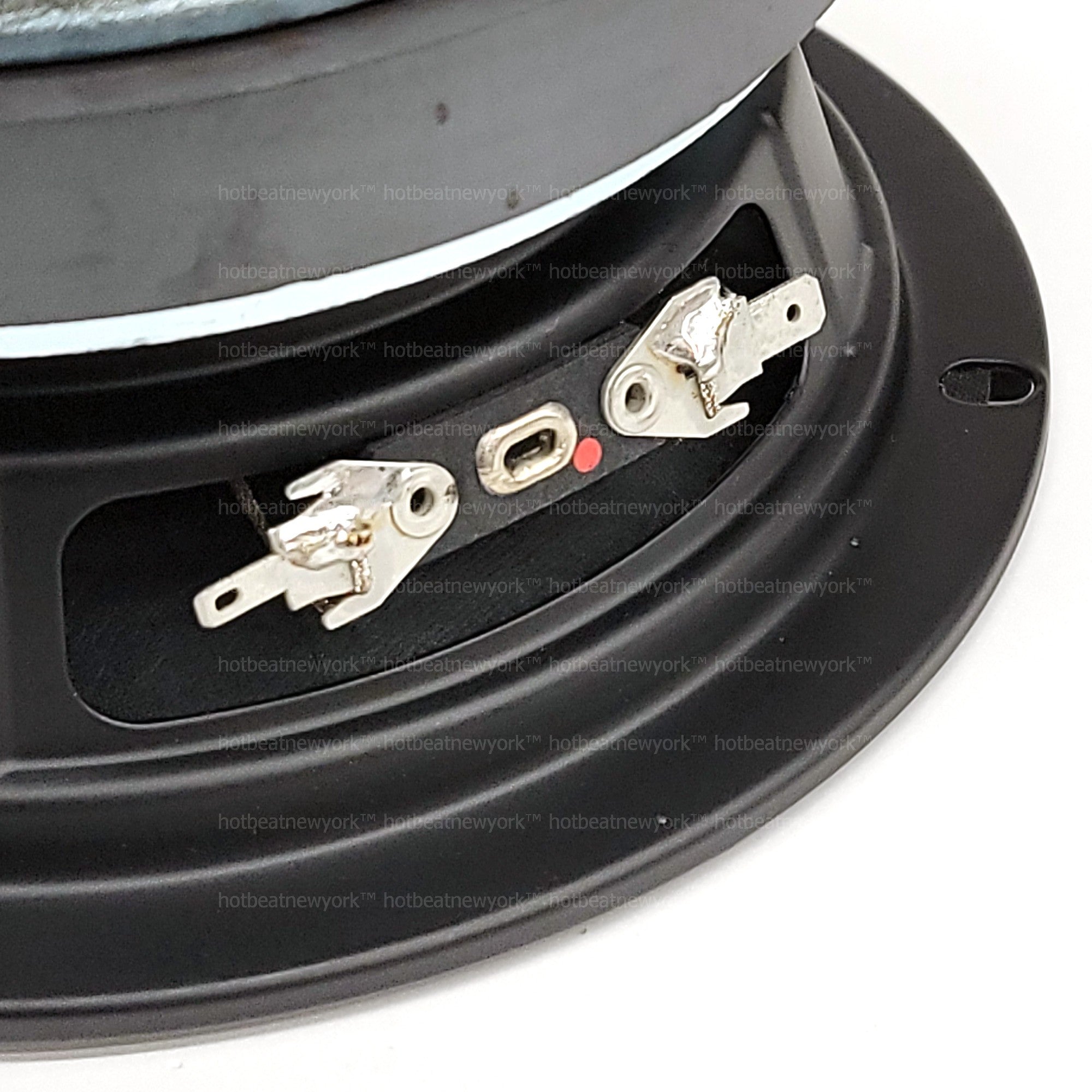

The bigger brother of the 6FE200, FaitalPRO's open back 6FE300 6" professional midrange speaker is purpose-built to cover the critical midrange in three-way speakers, but also works great as a door speaker in car audio applications. With 350 watts of peak power handling, the 6FE300 is built for the highest power applications. To ensure absolute signal fidelity, FaitalPRO built the 6FE300 with a strong ferrite ring-powered motor. Not only does this increase sensitivity, it keeps the Qts at a respectable figure of 0.46. Made in Italy.
UPC Barcode 848864068497
Product Specifications
Nominal Diameter 6"
Bolt Circle Diameter 6.1
Power Handling (RMS) 175 Watts
Power Handling (MAX) 350 Watts
Impedance 8Ω
Frequency Response 90 to 4,000Hz
Sensitivity 94dB 2.83V/1m
Voice Coil Diameter 2.05"
Thiele-Small Parameters
Resonant Frequency (Fs) 100Hz
DC Resistance (Re) 5.3Ω
Voice Coil Inductance (Le) 0.4mH
Mechanical Q (Qms) 10.5
Electromagnetic Q (Qes) 0.48
Total Q (Qts) 0.46
Compliance Equivalent Volume (Vas) 0.17ft³
Mechanical Compliance of Suspension (Cms) 0.18mm/N
BL Product (BL) 10T·m
Diaphragm Mass Inc. Airload (Mms) 14.2g
Maximum Linear Excursion (Xmax) 3.9mm
Surface Area of Cone (Sd) 138cm²
Materials of Construction
Cone Material Treated Paper
Surround Material Treated Paper
Voice Coil Wire Material Aluminum
Voice Coil Former Fiberglass
Basket / Frame Material Steel
Magnet Material Ferrite
Mounting Information
Overall Outside Diameter 6.56"
Baffle Cutout Diameter 5.75"
Depth 3.19"
# Mounting Holes 4
