Specifications |
Brand |
FAITAL PRO |
Model |
8FE200 |
Nominal Diameter |
8" |
Nominal Impedance |
8ohm |
RMS Power |
130 W |
Peak Power (Watts) |
260 W |
Sensitivity (dB) |
95 dB |
Max Excursion(Xdam)(Xlim) |
10.4 mm |
Max Linear Excursion (Xmax) |
4.67 mm |
Usable Frequency Range (Hz) |
60-5k Hz |
Surround Shape |
Triple Roll |
Basket / Frame Material |
Steel |
Spider Detail/Material |
1x constant height waves |
Voice Coil Diameter |
1.46" |
Voice Coil Former |
Kapton |
Voice Coil Wire Material |
Aluminum |
Voice Coil Winding Depth |
12 mm |
Voice Coil Gap Height |
8 mm |
Demodulating Ring |
No |
Magnet Material |
Ferrite |
Parameters |
Compliance Equivalent Volume (Vas) |
0.48 Ft3 |
Total Q (Qts) |
0.63 |
Mechanical Q (Qms) |
13 |
Electromagnetic Q (Qes) |
0.66 |
Minimum Impedance (Zmin) |
6.8ohm |
DC Resistance (Re) |
5.9 ohm |
Mechanical Resistance (Rms) |
1.32 lbs/sec |
Surface Area of Cone (Sd) |
29.61 in2 |
Voice Coil Inductance (Le) |
0.44 mH |
Flux Density |
1 T |
BL Product(Bl) |
8.2 T-m |
Moving Mass Of Diaphragm (Mmd) |
13.5 g |
Moving Mass(MMs) |
15 g |
Reference Efficiency (No) |
0.0102 |
Mechanical Compliance (Cms) |
0.26 mm/N |
EBP |
121 Hz |
Driver Displacement |
36.25 in3 |

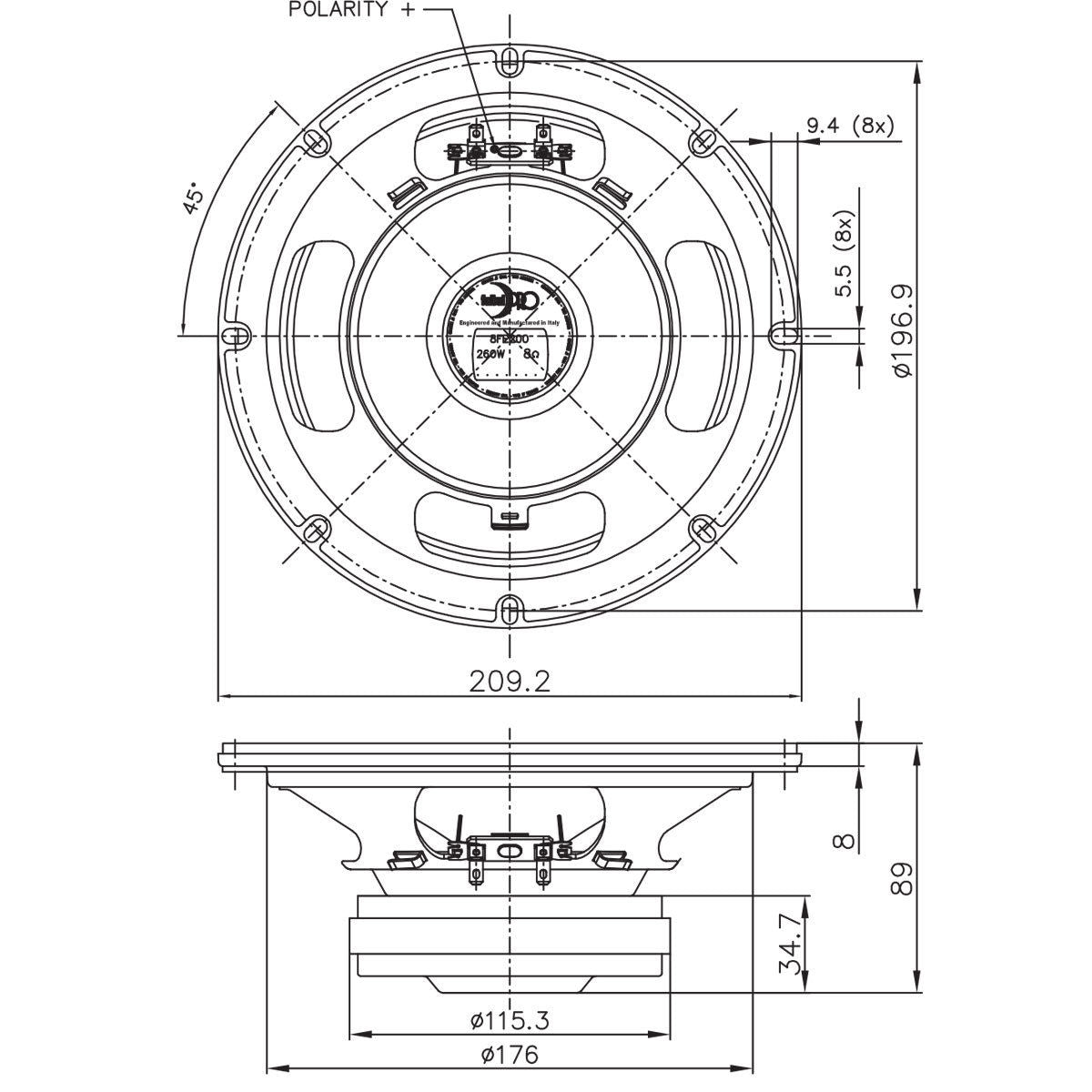

Mounting and Shipping Information |
Overall Diameter |
8.24" |
Baffle Hole Diameter |
7.01" |
Bolt Circle Diameter |
7.75" |
Flange and Gasket Thickness |
0.31" |
Depth |
3.5" |
Net Weight(lb) |
4.7 |
