JBL CSM14 4-Inputs 1-Output Commercial Series Mixer 110 - 240 Voltage CSM-14

Sale price $ 238.00 Regular price $ 329.00

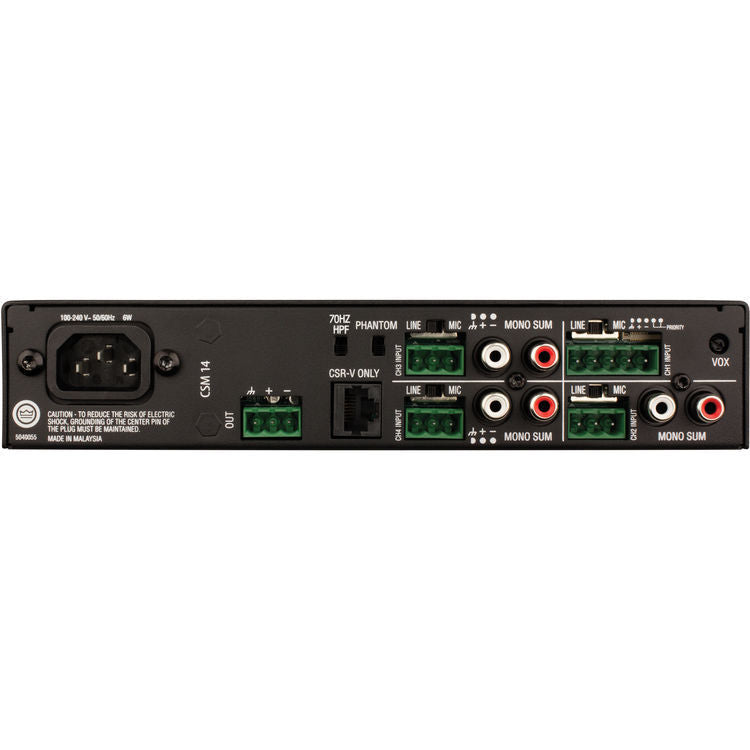

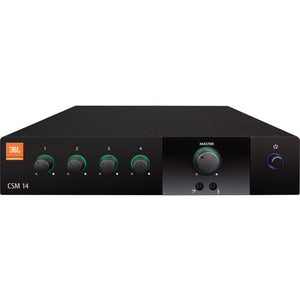

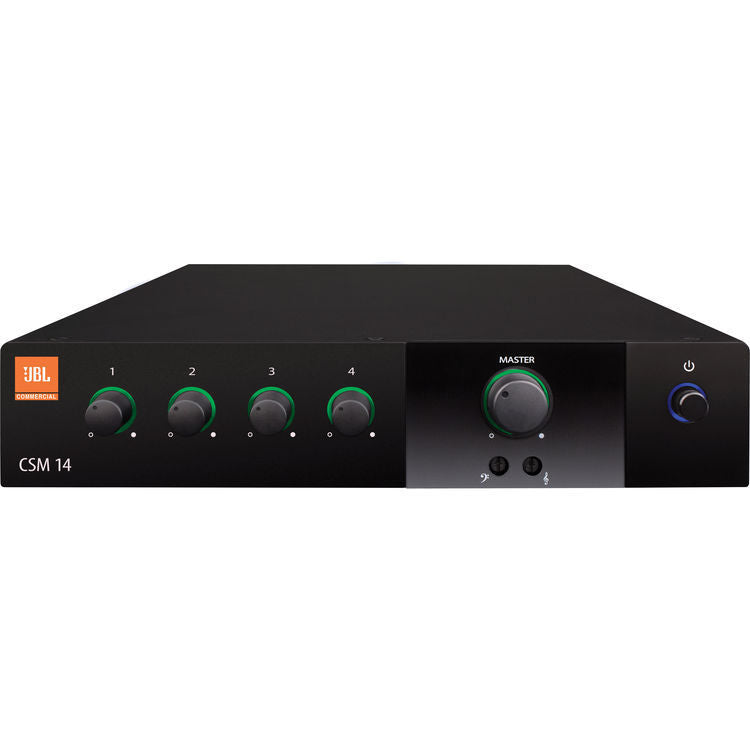

The CSM 14 - Four Inputs/One Output Commercial Series Mixer by JBL is backed by the combined technological prowess of multiple Harman brands and can be easily configured for a wide range of applications such as providing background music, security, and paging in schools, hospitals, restaurants, and fitness facilities. For I/O, the mixer features Euroblock type mic/line input and output connectors, as well as unbalanced RCA inputs. The chassis features illuminated rings that makes them easier to see and use for the dedicated volume, bass, and treble controls. The back of the mixer features a +27V phantom power switch as well as a 70 Hz HPF switch.

The mixer features RJ45 connectors for use with the company's CSR-V in-wall volume controls (sold separately), as well as a universal power supply that accepts AC voltages from 100 to 240 VAC, 50/60 Hz. It was built using Harman's GreenEdge clean standards to offer numerous energy-efficient benefits, including a lighter weight, space-saving design that conforms to RoHS standards.
Inputs 4
Outputs 1
Line Output Level 5.0 V RMS into 10 kOhms
Frequency Response 20 to 20,000 Hz ±1 dB
Total Harmonic Distortion 0.05% typical
Signal to Noise Ratio >90 dB
Input Impedance Mic: 400 ohms
Line: 20 kOhms
RCA: 50 kOhms
Crosstalk >70 dB
Tone Controls Bass: ±10 dB at 100 Hz
Treble: ±10 dB at 10,000 Hz
Input Sensitivity Mic: 3 mV RMS
Line: 300 mV RMS
RCA: 300 mV RMS
Phantom Power +27 VDC
Muting Priority
Input/Output AC Line Voltage 100 to 240 V, 50/60 Hz
Operating Temperature / Humidity 32 to 104°F (0 to 40°C) 95% R.H. (non-condensing)
Storage Temperature 68 to 185°F (-20 to 85°C)
Dimensions 1.7 x 8.6 x 11.9" (43.3 x 218.5 x 303.4 mm)
Weight 4.3 lb (2.0 kg)
