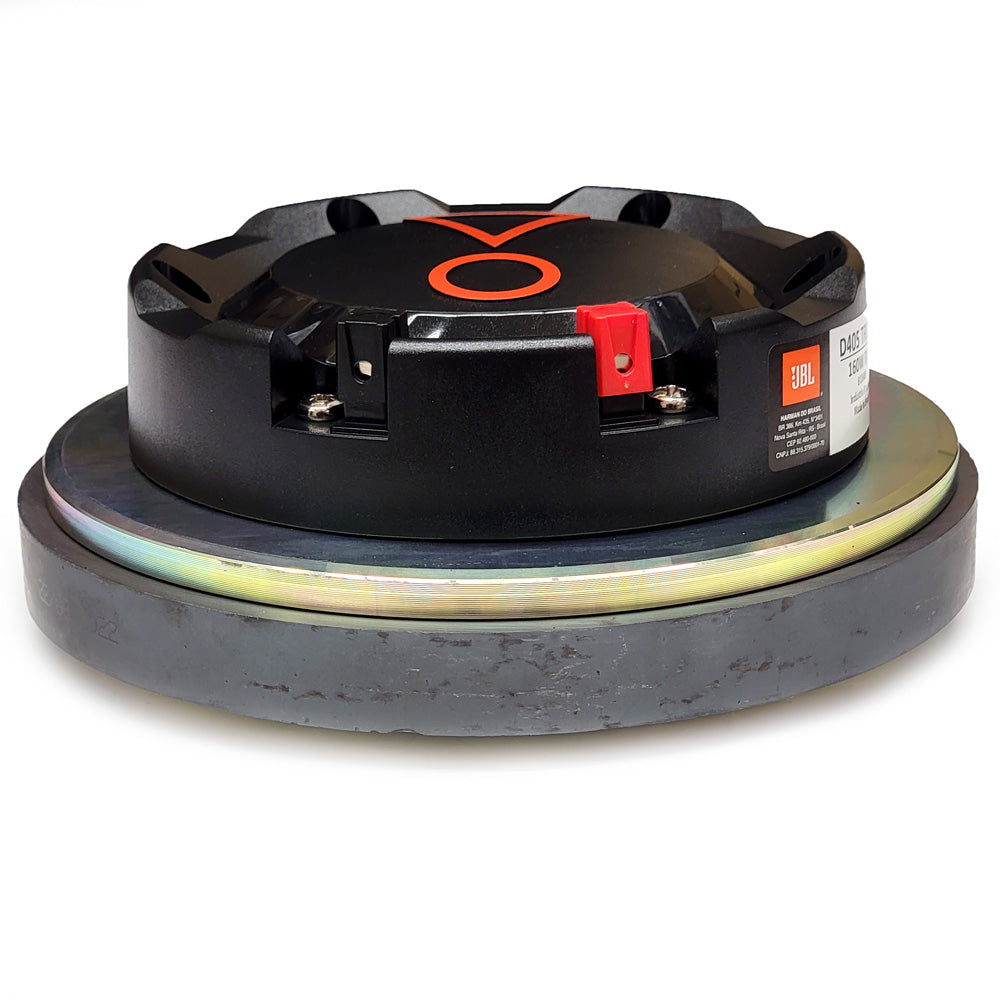

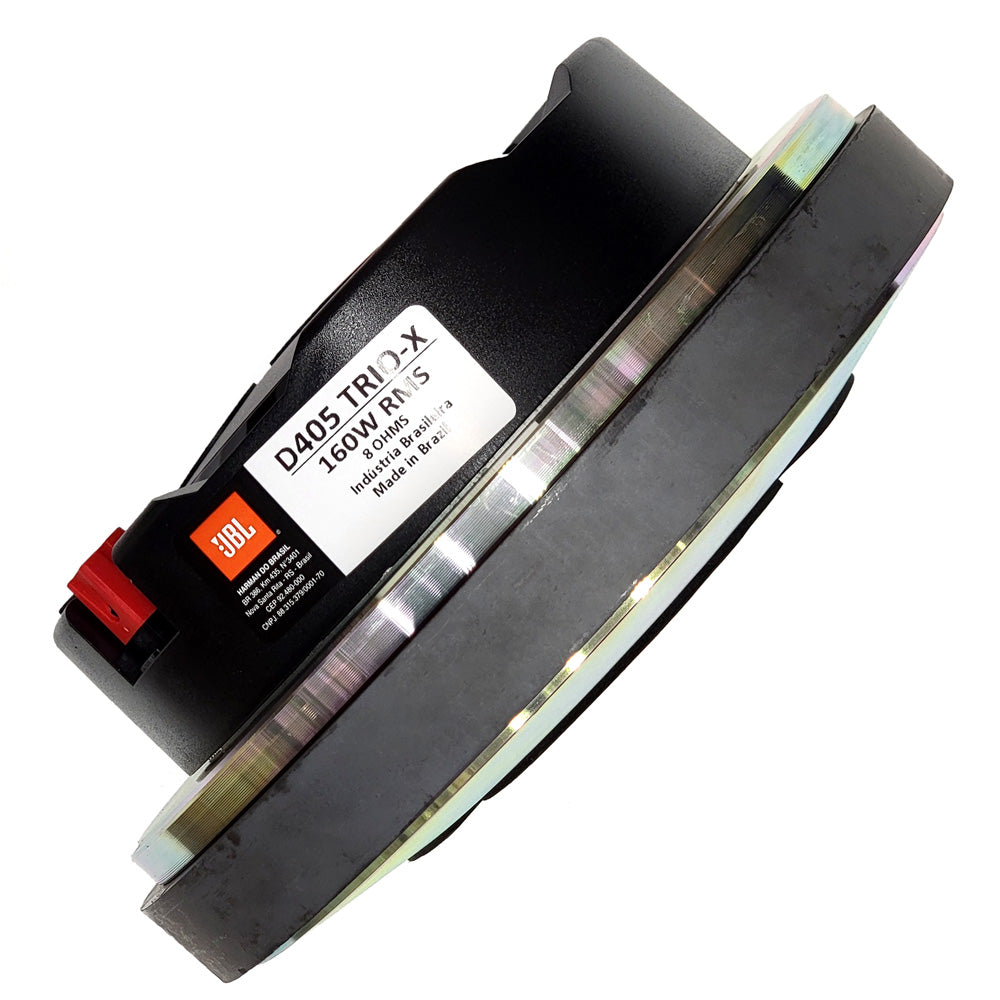

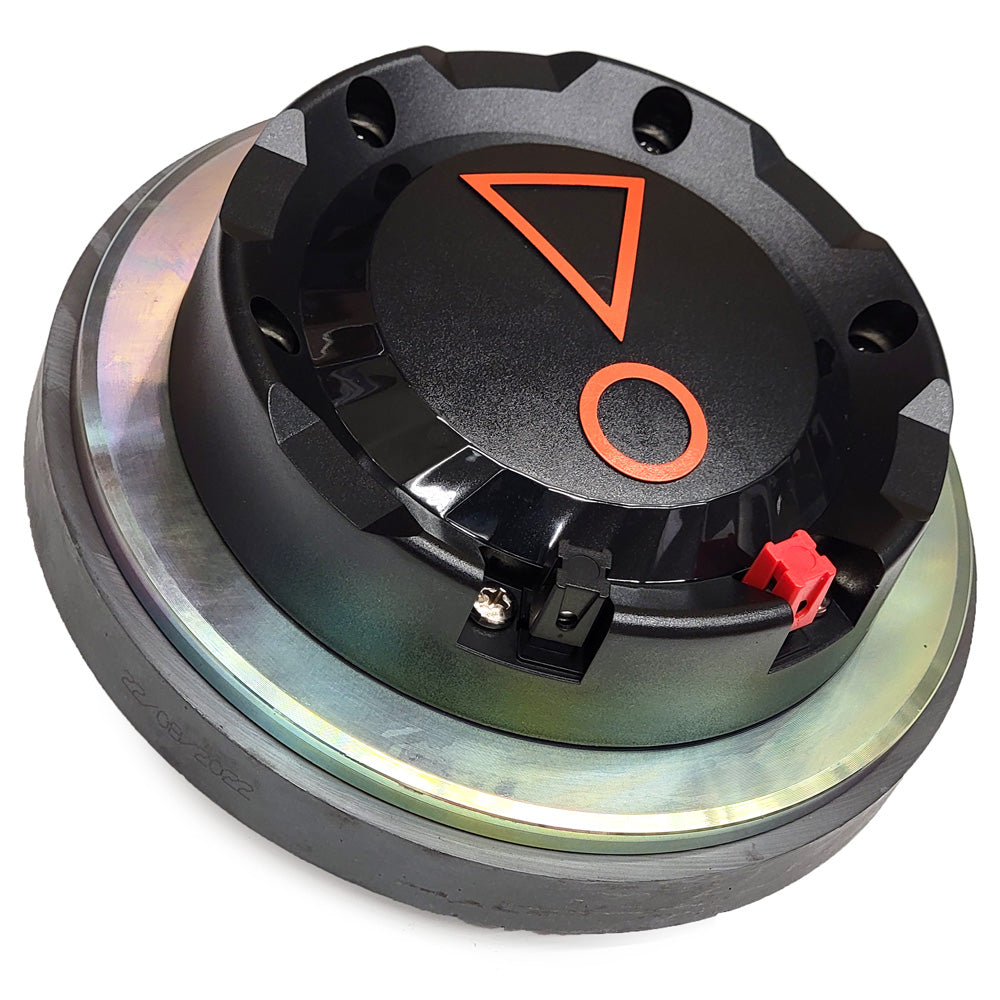

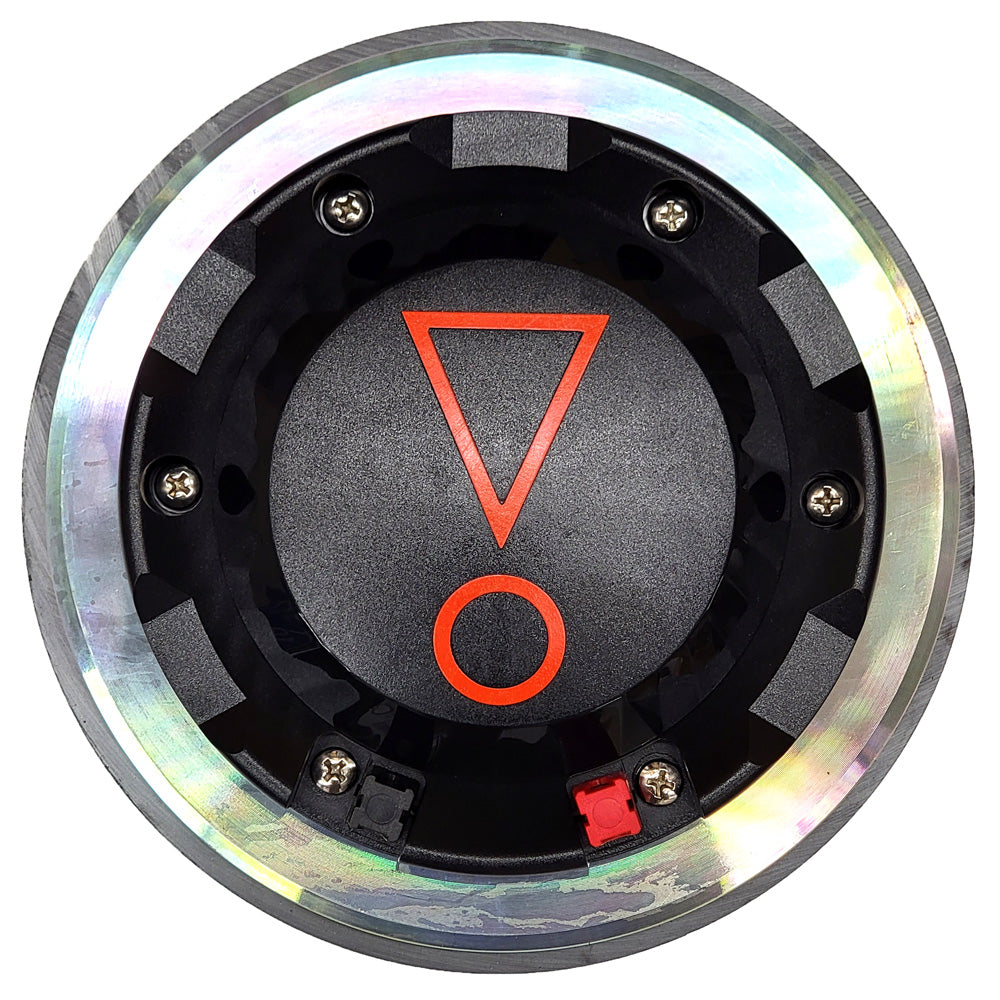

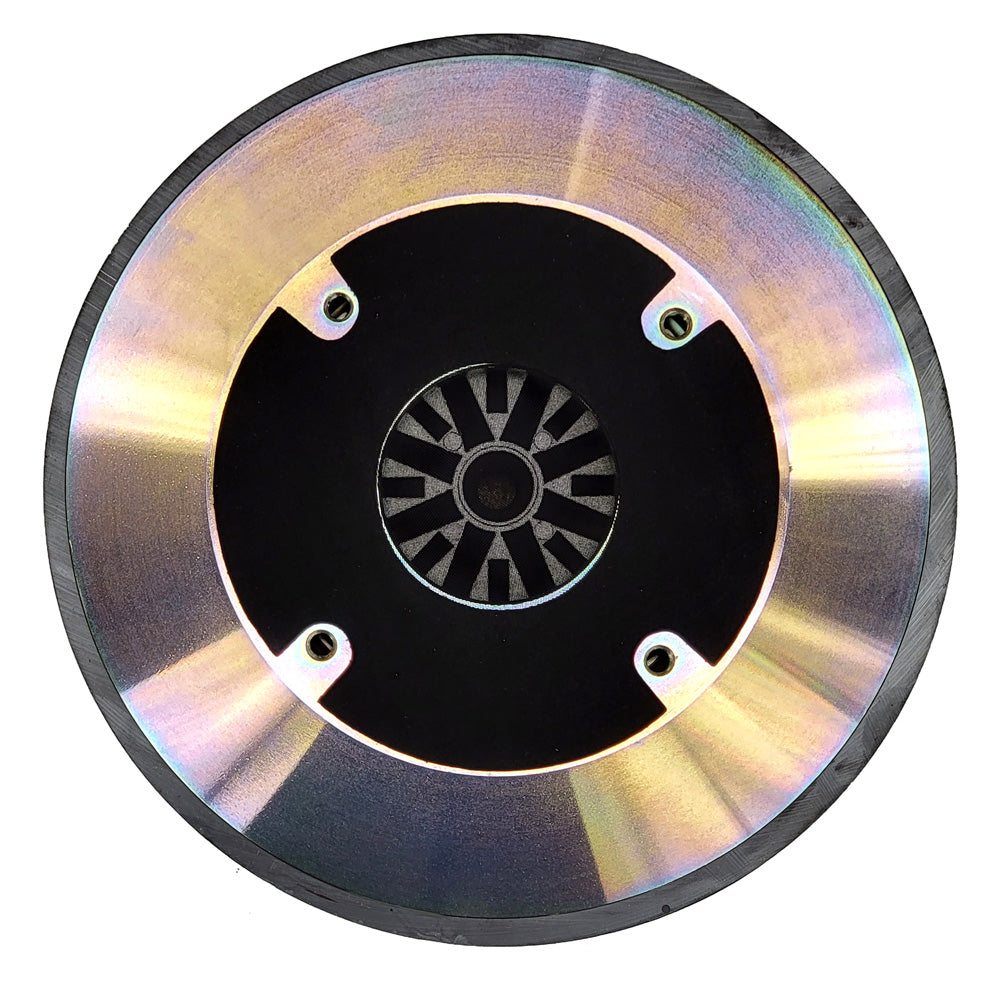

The D405 TRIO-X is a phenolic diaphragm compression driver with high efficiency.
Features a dome-type phenolic diaphragm that ensures efficiency and durability.
Magnetic assembly with high magnetic flux has in its GAP magnetic fluid.

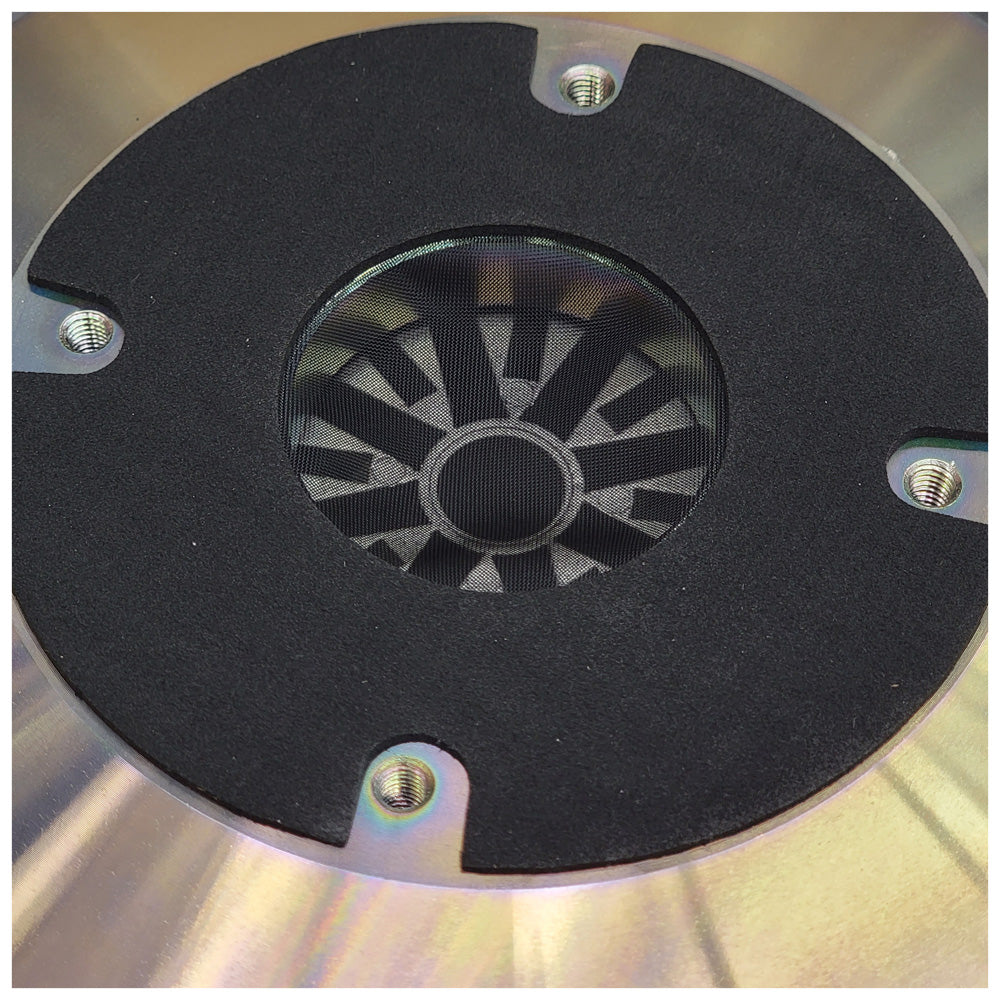

It has a 50mm (2") mouth, allowing for coupling with many horns.
The Repair has perfect self-centering, and is easily replaceable in the event of any defect.
Nominal Power (500 Hz) 110 Watts RMS
Nominal Power (1,000 Hz) 160 Watts RMS
Peak Power (500 Hz) 220 Watts
Peak Power (1,000 Hz) 320 Watts
Nominal Impedance: 8 ohm
Sensitivity (1W/1m): 110 dB SPL
Frequency Response: 500-6,500 Hz
Minimum Recommended Crossover: 500 Hz

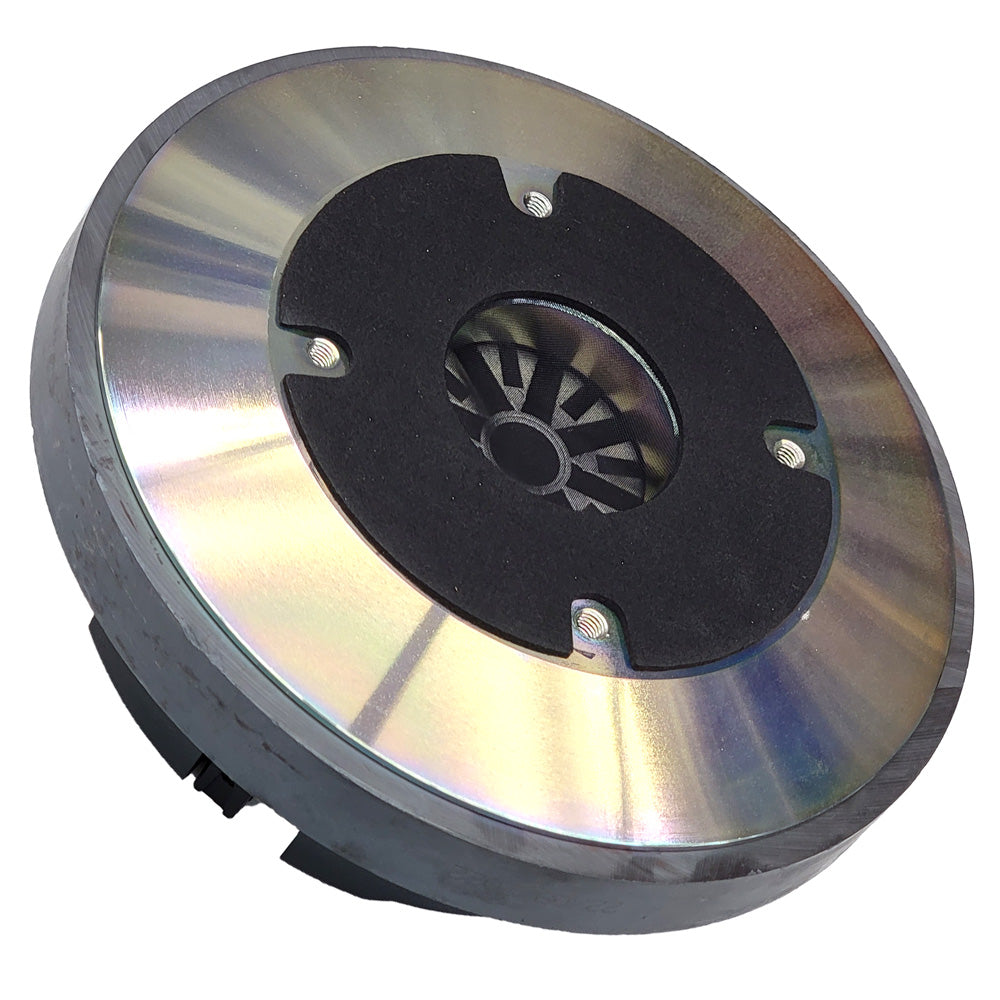

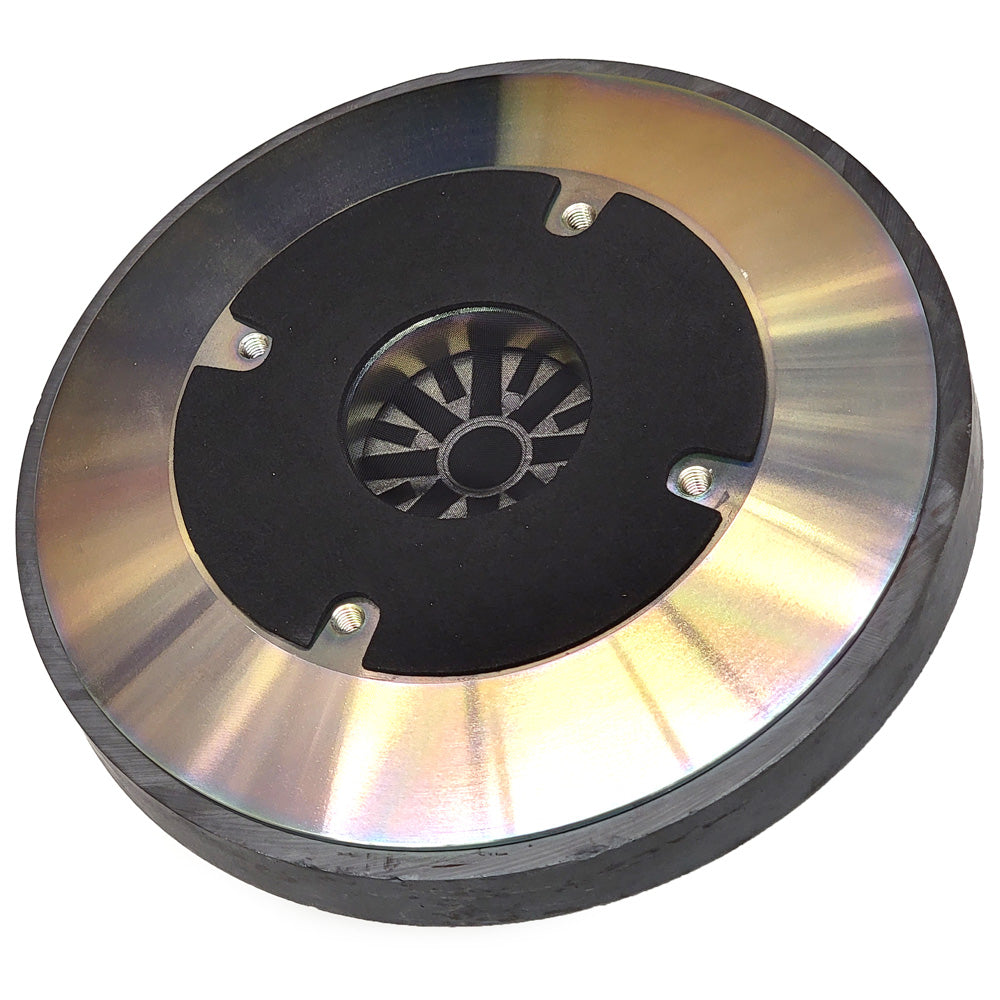

Throat Diameter: 50 mm / 2 inches
Diaphragm Material: Phenolic
Magnet Material: Barium Ferrite
