JBL Selenium 18SWS1100 18" Speaker 1,100 Watt RMS Deep Bass Woofer 7896359515943

  • 25200

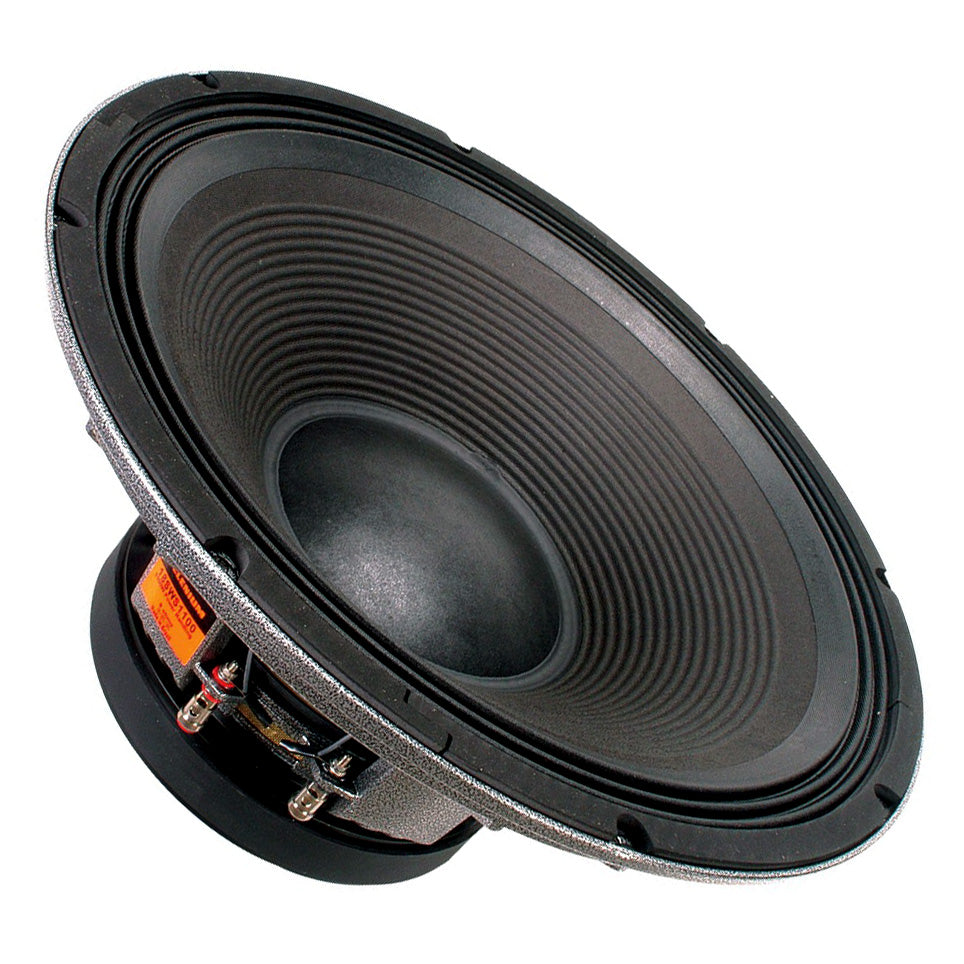

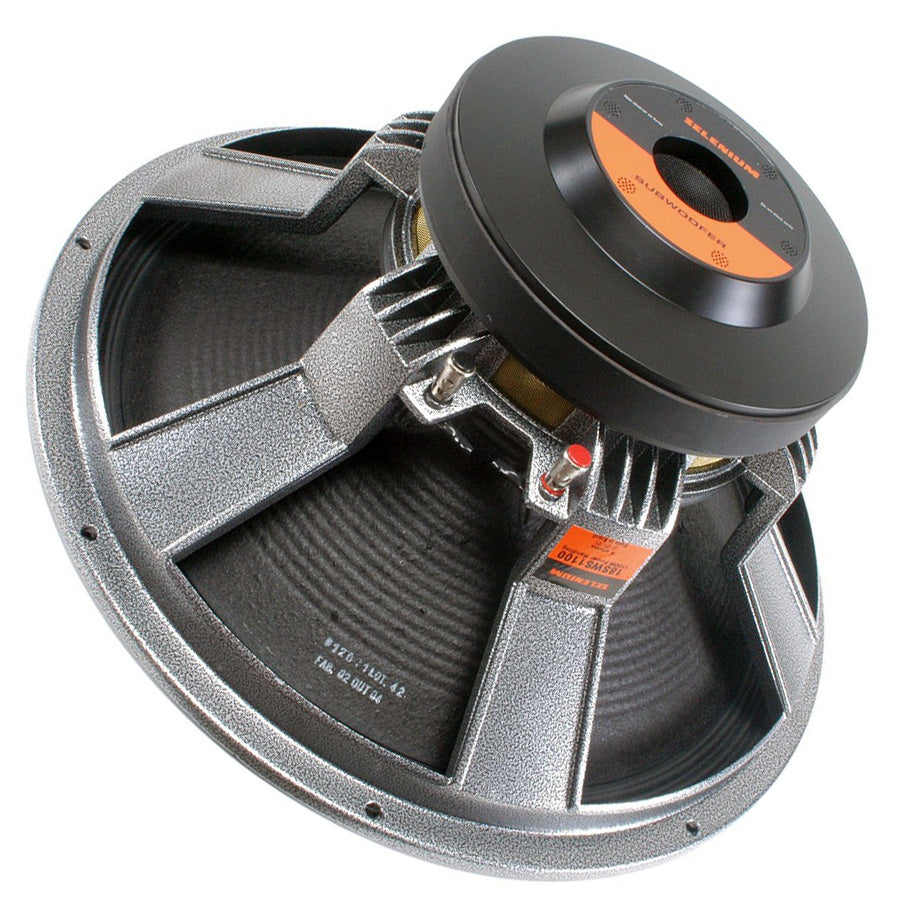

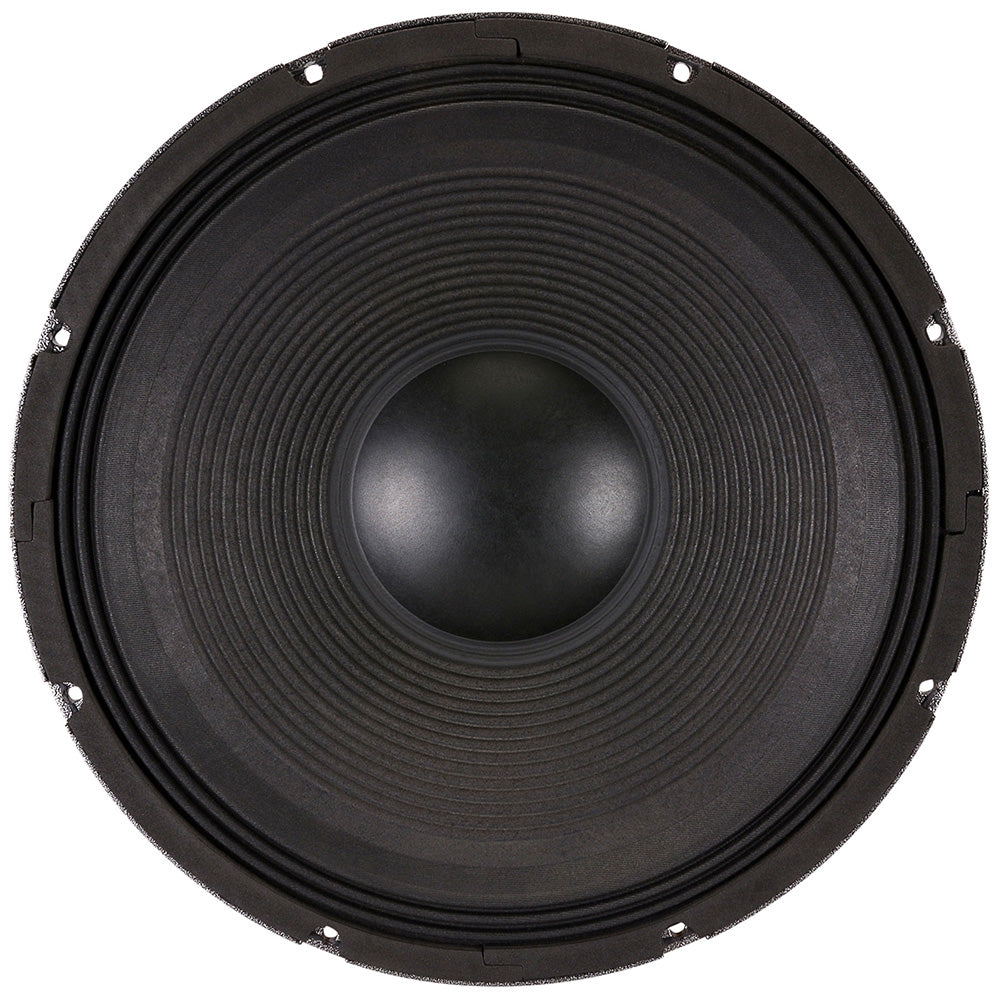

Selenium 18SWS1100 18" 1100W Professional Subwoofer


Selenium's new SWS1100 series has just broken the 1,000 watt RMS power handling barrier. Capable of handling up to 2,200 watts of continuous music power, these new subs are perfect for those who want premium performance; whether building a custom box, or upgrading an existing enclosure, the SWS1100 series is the choice!


PRODUCT SPECIFICATIONS
Power Handling (RMS)      1,100 Watts
Power Handling (max)      2,200 Watts
Impedance      8 ohms
Frequency Response      30 to 2,500 Hz
Sensitivity      97 dB 2.83V/1m
Voice Coil Diameter      4"
Magnet Weight      120 oz.

THIELE-SMALL PARAMETERS
Resonant Frequency (Fs)      39 Hz
DC Resistance (Re)      5.6 ohms
Voice Coil Inductance (Le)      2.65 mH
Mechanical Q (Qms)      13.82
Electromagnetic Q (Qes)      0.50
Total Q (Qts)      0.48
Compliance Equivalent Volume (Vas)      7.48 ft.³
Mechanical Compliance of Suspension (Cms)      0.11 mm/N
BL Product (BL)      20.4 Tm
Diaphragm Mass Inc. Airload (Mms)      153.7g
Maximum Linear Excursion (Xmax)      9.3 mm
Surface Area of Cone (Sd)      1194 cm²

MATERIALS OF CONSTRUCTION
Cone Material      Paper
Voice Coil Wire Material      Aluminum
Voice Coil Former      Fiberglass
Basket / Frame Material      Cast Aluminum
Magnet Material      Ferrite

MOUNTING INFORMATION
Overall Outside Diameter      18.00"
Baffle Cutout Diameter      16.55"
Depth      8.70"
# Mounting Holes

OPTIMUM CABINET SIZE *
Sealed Volume      3.12 ft.³
Sealed F3      70 Hz
Vented Volume      10.56 ft.³
Vented F3      37 Hz
* Enclosure volume/F3s based on BassBox "optimum" calculations

Selenium 18SWS1100 18" 1100W Subwoofer
Brand      Selenium
Model      18SWS1100
Part Number      264-396
UPC      7896359515943
