JBL Selenium 6W4P Mid Frequency Range Bass 6" Woofer 200 Watts 7896359515745

  • 4995



Product Details

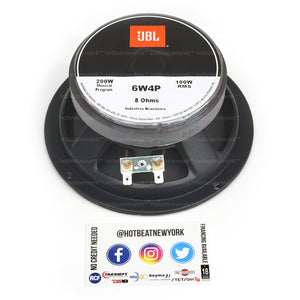

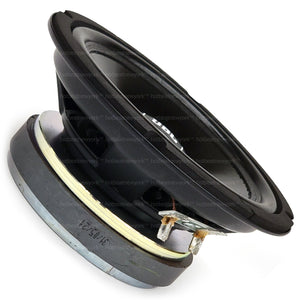

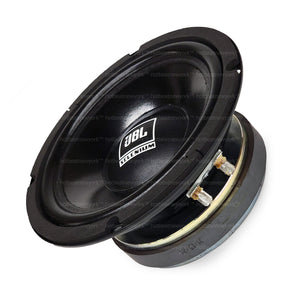

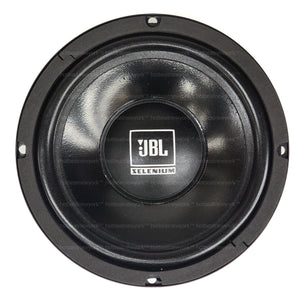

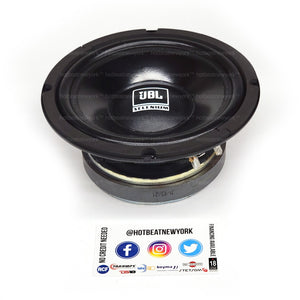

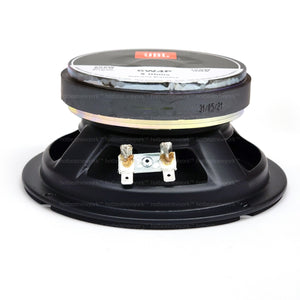

Selenium 6W4P 6" Woofer

This woofer offers excellent performance in the mid frequency range and is great for sound reinforcement in nightclubs, dancing halls, auditoriums, bands, or for use in studio monitors. Features epoxy painted reinforced steel frame, impregnated foam surround, and impregnated long fiber paper cone.



PRODUCT SPECIFICATIONS
  • Nominal Diameter6"
  • Power Handling (RMS)100 Watts
  • Power Handling (max)200 Watts
  • Impedance8 ohms
  • Frequency Response80 to 9,000 Hz
  • Sensitivity91 dB 2.83V/1m
  • Voice Coil Diameter1.25"
  • Magnet Weight19.8 oz.
THIELE-SMALL PARAMETERS
  • Resonant Frequency (Fs)76 Hz
  • DC Resistance (Re)5.9 ohms
  • Voice Coil Inductance (Le)0.57 mH
  • Mechanical Q (Qms)6.7
  • Electromagnetic Q (Qes)0.95
  • Total Q (Qts)0.83
  • Compliance Equivalent Volume (Vas)0.28 ft.³
  • Mechanical Compliance of Suspension (Cms)0.32 mm/N
  • BL Product (BL)6.34 Tm
  • Diaphragm Mass Inc. Airload (Mms)16.9g
  • Maximum Linear Excursion (Xmax)2.3 mm
  • Surface Area of Cone (Sd)238 cm²
MATERIALS OF CONSTRUCTION
  • Cone MaterialPaper
  • Voice Coil Wire MaterialCopper
  • Voice Coil FormerKapton® / Polyimide
  • Basket / Frame MaterialSteel
  • Magnet MaterialFerrite
MOUNTING INFORMATION
  • Overall Outside Diameter6.54"
  • Baffle Cutout Diameter5.63"
  • Depth2.9"
  • # Mounting Holes4
OPTIMUM CABINET SIZE (DETERMINED USING BASSBOX 6 PRO HIGH FIDELITY SUGGESTION)
  • Sealed Volume0.46 ft.³
  • Sealed F383 Hz
  • Vented Volume1.16 ft.³
  • Vented F345 Hz
SELENIUM 6W4P 6" WOOFER
  • BrandSelenium
  • Model6W4P
  • UPC7896359515745
