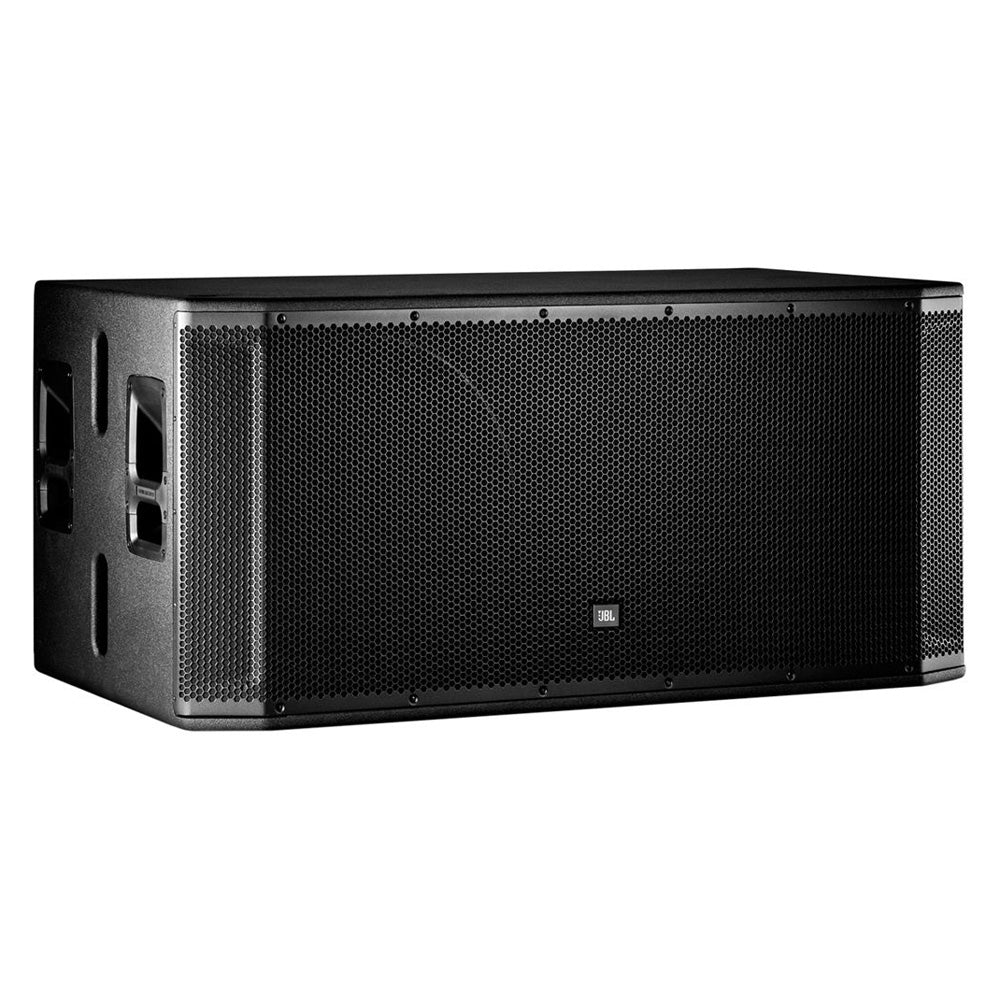

Designed to deliver professional-quality bass for the SRX800 series powered large-format, full-range tops, the dual 18" JBL SRX828SP is a highly flexible, easy to use, 2000W powered subwoofer for large-scale live performance systems, mobile and fixed DJ systems, sound system rental and touring companies, and permanent installations.
The subwoofer is designed for use with the SRX815P and SRX835P speakers, but can also complement any full-range system. It incorporates V5 JBL tunings, providing compatibility with the flagship Vertec and VTX touring systems. The unit can be used in a variety of configurations including clusters, stereo ground stacks, and cardioid deployment. When used with main speakers, a pair of SRX828SP subwoofers are well equipped to cover an audience of 300 to 400.
The rear panel provides access to a full suite of user-controllable DSP driven by the SRX800 series powerful onboard 400 MHz Sharc DSP and includes 20 PEQ's, 2 seconds of delay, signal generators, input mixing, amplifier monitoring, and 50 user presets.
The subwoofer has two mono line inputs, each with a combo XLR-1/4" connector as well as a master volume knob for the overall level. The two mono inputs are mixed to a mono signal internally, while two XLR loop-thru outputs allow you to route the signal to additional SRX800 series speakers for extending the mono signal for better coverage.
The highly efficient 2000W Class-D amplifier powers both 18" woofers, which provides a sub-frequency range of 35 to 120 Hz with a sound pressure level powerful enough to ensure the entire audience can hear your performance.
Simple wired control is provided via Ethercon connector and third-party wireless router capability is included. Control options include Audio Architect, HiQnet Motion Control iOS app, and standalone applications for iOS and Android. The SRX828SP ships with a power cord.
At a Glance
JBL premium transducers
2000W highly efficient Crown amplification
Full user-configurable DSP
Maximum SPL output: 141 dB
Frequency response (- 3 dB): 35 Hz to 120 Hz
Network control
JBL engineered application presets
LCD screen and glow-in-the-dark ink on back pane
Purposeful Design
Every detail in the SRX828SP was purposefully designed and through with full consideration for its intended use; each component carefully matched to achieve a remarkably tuned system that is powerful, easy to use, reliable, and extremely rugged. Ergonomically designed handles support an easy, non-fatiguing grip for streamlined handling. An LCD screen and glow-in-the-dark back-panel ink ensure fast, accurate setup even in low light.
Transducer Technology
JBL's patented Differential Drive Technology ferrite drivers incorporate 3" voice coils with lower mass ferrite magnets for reduced weight, increased power handling, low distortion and extended low-frequency response.
Drivecore by Crown
The SRX828SP is powered by Crown's proprietary front-end DriveCore technology featuring a massive 2000W Power Rating. With a remarkable 103 dB signal-to-noise ratio, the SRX828SP is capable of massive sound pressure levels with exceptional headroom, very-low distortion, and remarkable clarity throughout its frequency range.
HiQnet Network Control
With full HiQnet Network Integration, configuring the SRX828SP system is dramatically simplified, saving time while fully automating the control interface configuration. Simple wired control is provided via Ethercon connector and third-party wireless router capability is included. Control options include Audio Architect, HiQnet Motion Control iOS app, and standalone applications for iOS and Android.
JBL SRX828SP Specs (Specifications)
PA Speaker
Configuration Active Dual Subwoofer
Enclosure Type Bass-Reflex Subwoofer
Total Power Capacity 2000 W Peak
1500 W Program
Amplifier Class Class-D
Drivers
LF Driver 2 x 18" / 457.2 mm Woofer
LF Voice Coil 3" / 76.2 mm
Magnet Ferrite
Performance
Frequency Range 29 Hz to 150 Hz -10 dB
Frequency Response 35 Hz to 150 Hz ±3 dB
Maximum SPL 141 dB
Max Input Level 20 dB
Gain Range Line Input:
0 to 21 dBu
I/O Impedance Input:
40 Kilohms (Balanced)
20 Kilohms (Unbalanced)
SNR 103 dB
Connectivity
Audio I/O 2 x Combo XLR-1/4" TRS Female Balanced/Unbalanced Line Input
2 x XLR 3-Pin Male Balanced Line Thru
Network I/O 1 x etherCON (Control) Input
Wireless Connectivity Wi-Fi
Signal Processing
Crossover 80 Hz
EQ Yes
Parametric EQ Yes
Alignment Delay 2000 ms
Phase Adjustment Yes
Power
AC Input Power Universal:
100 to 240 VAC, 50 / 60 Hz
AC Power I/O 1 x IEC
Current Consumption 120 VAC:
2.2 A (1/8 Power)
5.6 A (1/3 Power)
Physical
Handles 8
Construction Material Perforated Metal Grille, Plywood, Steel
Dimensions 26.7 x 47.4 x 22.5" / 67.8 x 120.4 x 57.1 cm
Weight 145 lb / 65.8 kg
Packaging Info
Package Weight 165 lb
Box Dimensions (LxWxH) 52 x 31.5 x 24.5"
