4 Channel XLR-M CAT6 Audio/DMX Portable Snake Box

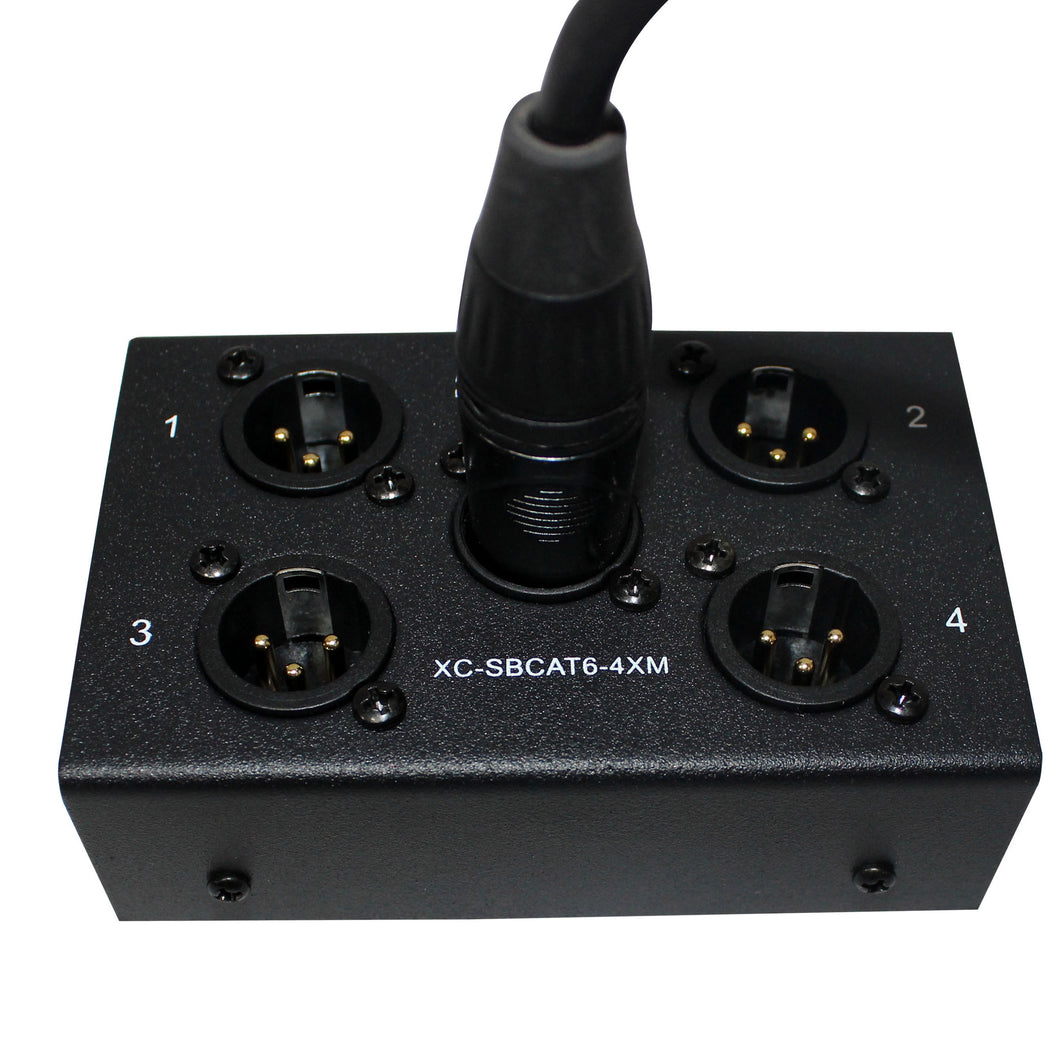

ProX XC-SBCAT6-4XM 4 Channel XLR-M CAT6 Audio/DMX Portable Snake Box

Regular price
$ 71.99
Sale price
$ 35.99
Unit price

The ProX XC-SBCAT6-4XM Audio Snake Box is half of a pair of metal boxes that are used to send up to four audio/DMX signals over a single run of CAT-5, CAT-5E or CAT-6 cables. They are low-cost & compact.  Both an XC-SBCAT6-4XF and an XC-SBCAT6-4XM are required for the working pair.

Designed to the highest professional standards the XC-SBCAT6-4XM Snake Box has a wide, flat frequency response

You can mix and match Mic/Line, Line or AES/EBU configurations making the Snake Box a very versatile high-quality means of transporting analog or digital signals. This Snake Box has been factory tested over CAT-5 UTP & CAT-6 STP cables.

  • Analog Audio or Digital DMX
  • Gold Plated Contacts
  • Mic / Line / AES audio all on the same cable
  • Supports 48V Phantom power (needs STP Shielded CAT-x cable
  • No Ground Loops
  • Add a second unit to increase the number of channels
  • Rugged 'road-ready' construction
  • RoHS Compliant
  • Bandwidth: 20 Hz to 20 kHz
  • Crosstalk: Better than -95 dB at 20 KHz
  • Connectors: PBE-202S Sending end - 4x Female XLR to Ethercon RJ45 jack
  • PBE-202R Receiving end - Ethercon RJ45 to 4x Male XLR
  • Dimensions: 107mm x 70mm x 45mm
  • Weight: 400 grams (0.4 Kg)
