3.28 Ft1 Meter Circle Truss Design Wheel Round Base or Top Mount

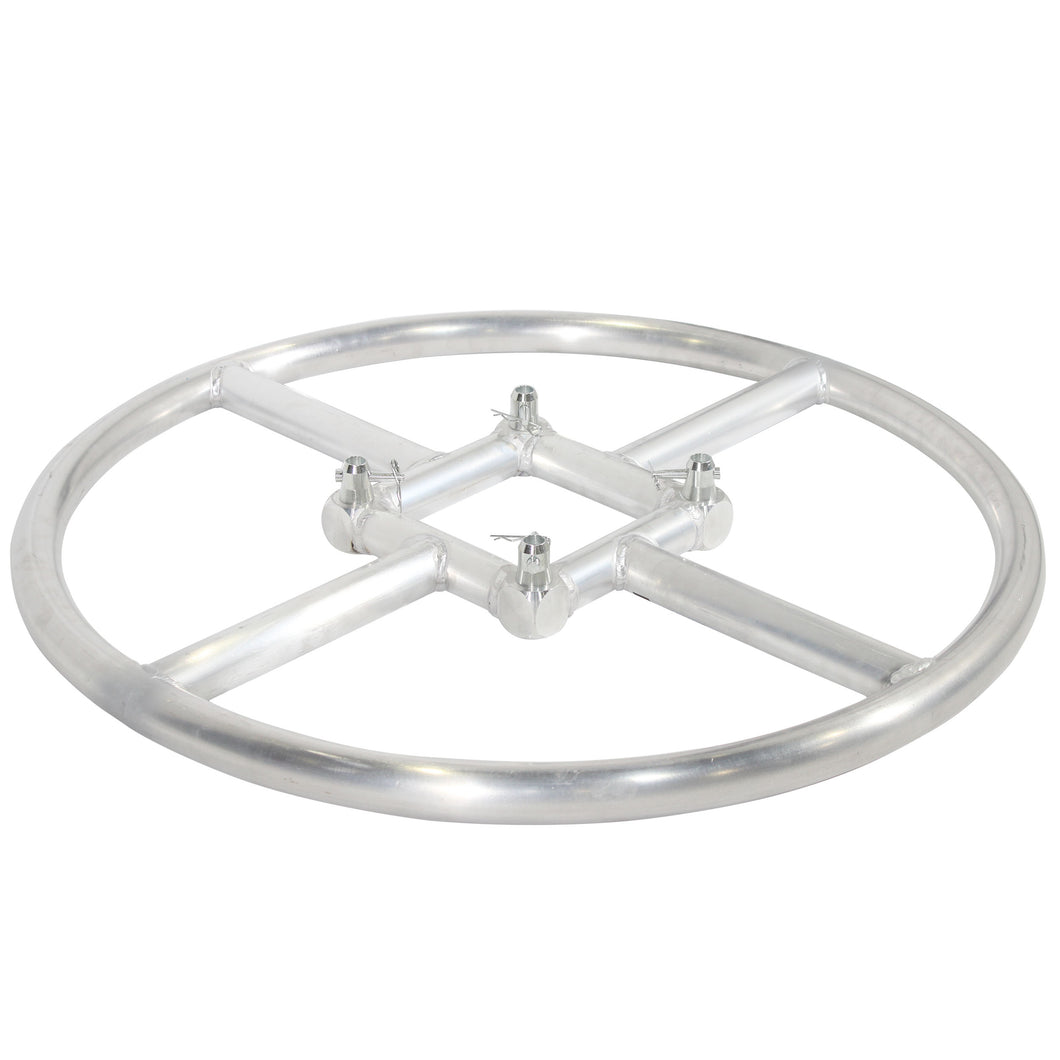

ProX XT-BPC328 MK2 3.28 Ft. - 1 Meter Circle Truss Wheel - Round Base or Top Mount

Regular price
$ 639.99
Sale price
$ 269.99
Unit price

The ProX XT-BPC328 MK2 3.28ft Circle Truss is excellent for a variety of lighting and accessory needs of a mobile DJ, stage set, sound arrangements and more!  This second-generation circle component is based on the design of our XT-F32JBOX Junction as a center section.  The circle component can be used as a base or truss topper.  Create unique lighting designs by mounting this circle on the top of a truss segment or totem and hanging lights or other gear in a 360-degree dispersion.   This, used as a base, makes a great bottom for truss totems!

  • Tolerance Free Standard Conical connector
  • Main tube wall thickness of .08in


  • Height: 11.42in / 290mm
  • Width: 11.42in / 290mm
  • Weight: 21lb per 3.28 ft / 9,5kg per meter
  • Main Tube: 2in / 50mm
  • Wall Thickness:  .08in / 2mm
  • Braces: .75in / 20mm

Actual Diameter:  3.28 ft. (1.00 Meter) Square Truss Segment
Tubing: 2"
Includes connecting hardware set.

ProX Truss products utilize industry standard dimensions to be compatible to connect to/with many other manufacturers trussing.

  • Manufactured in our Own Factory!
  • Material: EN-AWT6 6082 Aluminum
  • TUV Certified Aluminium Welding
  • Note: Shipping weight of 38lbs is a Dimension Weight (Oversized) by UPS/FedEx

TUV Is a 3rd Party Certification Body and a Nationally Recognized Testing Laboratory (NRTL). TUV provides inspections, testing, certification & training, with the ultimate objectives of reliability, safety & high quality.
