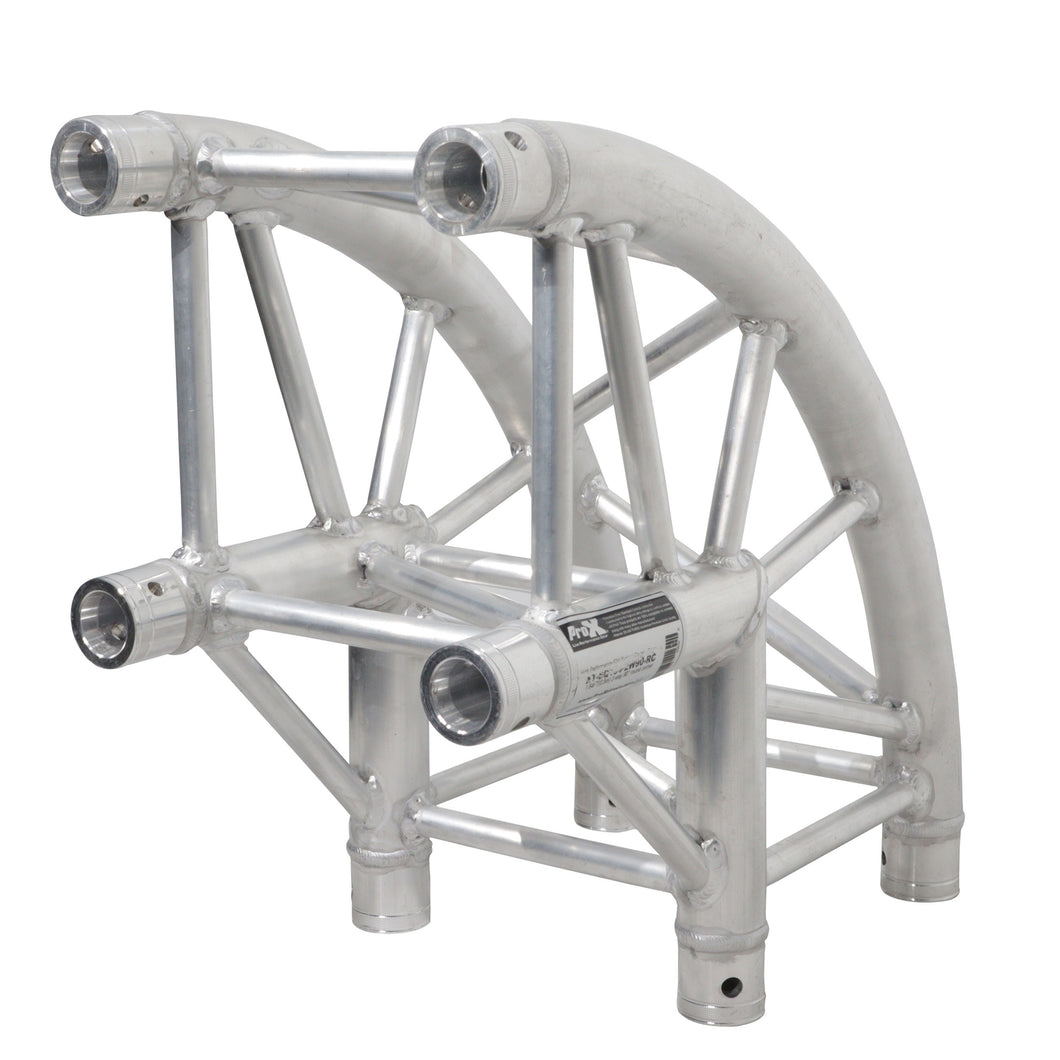

The ProX XT-SQ164-2W90-RC 2-way 90° Rounded Corner, 1.64 ft. (0.5 meters), truss corner helps you easily make soft squares or rectangles and works with the ProX XT Series box truss.
ProX Truss has the most trusted staging support systems in the industry, and is built to the highest standards of safety and performance. It's a rugged yet lightweight trussing solution perfect formobile DJs, bands, outdoor performances, nightclubs, live mobile productions, or permanent installations.
At the heart of the system is square truss that utilize a standard conical connector system, which easily mates with other brands of truss of the same size and connector style, and is available in a variety of lengths to suit your designs. It also works with different types of corners, base plates, connectors and accessories that add stability while expanding on limitless configurations.
Always know your load weight for your equipment: VERY IMPORTANT - CLICK HERE for Truss Loading Chart.
- Tolerance Free Standard Conical connector
- Main tube wall thickness of .08in
- Includes connecting hardware set.
XT-SQ SERIES DIMENSIONS:
- Height: 11.42in / 290mm
- Width: 11.42in / 290mm
- Weight: 21lb per 3.28 ft / 9,5kg per meter
- Main Tube: 2in / 50mm
- Wall Thickness: .08in / 2mm
- Braces: .75in / 20mm
ProX Truss products utilize industry standard dimensions to be compatible to connect to/with many other manufacturers trussing.
ProX Trussing provides high strength with exceptional quality control and excellent pricing.
- We own the factory, not generic trussing!
- Built to exacting specifications
- TUV Certified Welding & Processes
- Compatible with most Conical Coupled trussing
- Includes tapered shear pins with clips and 4 conical couplings
Standard Size F34 Truss Configurations.
