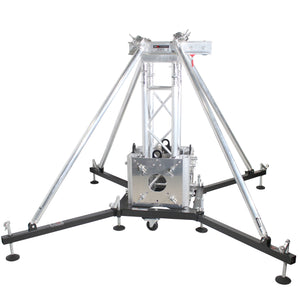

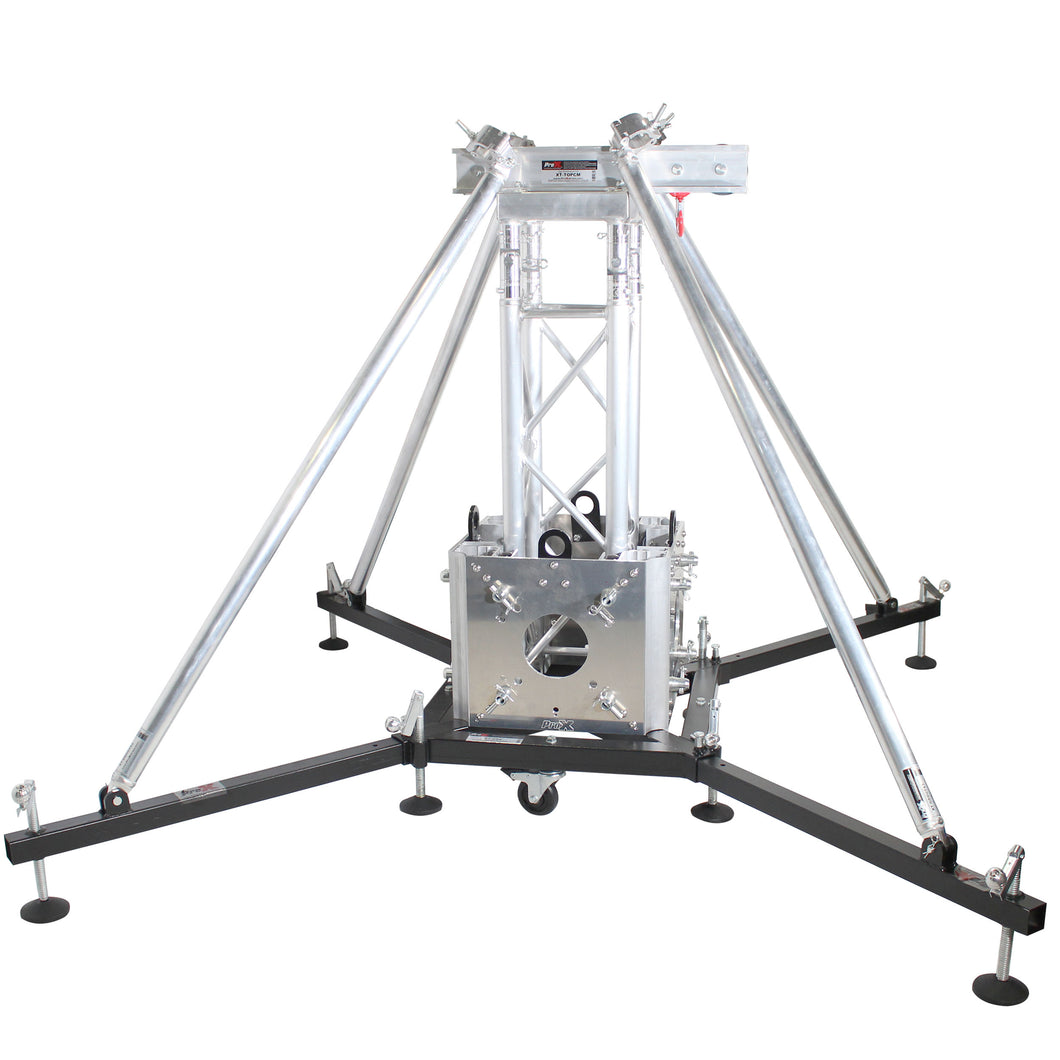

The ProX XTP-GSBPACK3 is a Full Package of four-legged outrigger Truss base, with a 4-way Square Truss junction box Sleeve Block, on a 3' long square Truss. Complete with the Rigging Top. In this package, you have everything you need (except for lift hoist) for one complete leg in the building and flying a large scale truss, supporting mid to heavy-grade level stage installations. You get:
- XT-GSB MK2 Rigger Base, with extending legs
- XT-SQ328 3.28 Ft Truss Segment (Longer segments available separately)
- XT-GSOUT3 3' Outrigger Brace Tubes (4) with clamps
- XT-BLOCK Sleeve Block 4-Way Junction box
- XT-TOPCM Truss Top with I-Beam mount with chain Pulley wheels
- XT-HINGE 4 Hinge block set
- (Lift Hoist NOT included)
ProX XT-SQ series trussing is a rugged and durable trussing solution perfect for live outdoor or indoor productions, exhibitions, retail displays as well as nightclubs, and other permanent installations. ProX offers a wide variety of corners, base plates, connectors and accessories that allow limitless design configurations to suit your needs. Always consult an engineer for complex designs!
ProX XT-SQF34 2MM SERIES DIMENSIONS:
- Height: 11.42in / 290mm
- Width: 11.42in / 290mm
- Weight: 21lb/9,5kg per 3.28 ft / 1 meter
- Main Tube: 2in / 50mm
- Wall Thickness: .08in / 2mm
- Braces: .75in / 20mm
IMPORTANT: Always know your load weight for your equipment: XT-SQ Truss Loading Chart
- Manufactured to Exacting Specifications in our Own Factory!
- Tolerance Free Standard Conical Connectors
- Truss Main Tube Wall Thickness of .08in / 2mm
- Load Capacity is 1 Ton (2000 lbs) per unit
- Material: EN-AWT6 6082 Aluminum and Welded Steel (Painted Black)
- TUV Certified Aluminium/Steel Welding
TUV is a 3rd Party Certification Body and a Nationally Recognized Testing Laboratory (NRTL). TUV provides inspections, testing, certification & training, with the ultimate objectives of reliability, safety & high quality.
ProX Truss products utilize industry-standard dimensions to be compatible to connect to/ and work with many other manufacturers' F34 trussing products with conical connectors.
Standard F34 Square Truss Configurations - Fits most other manufacturers truss with conical connectors
Package Contents
- XT-TOPCM (1) Top Truss Section for Electric Motor or Manual Chain Hoist
- XT-BLOCK-MK2 (1) Ground Support Sleeve Block for F34 Truss Segment Systems
- XT-HINGE (4) Conical Tube Ground Support Post towers Male to Male Hinge Joint Fits F31 F32 F34
- XT-GSB MK3 (1) Universal Vertical Tower Truss Ground Support Base on Wheels with Leveling Jacks for F34, F44 and 12" Bolt truss
- XT-GSOUTS3 (4) 3 Ft. Outrigger Brace for Ground Support Truss Tower
- XT-SQ328 (1) 3.28 Ft - 1.00 M F34 Square Truss Segment | 2 mm Wall
