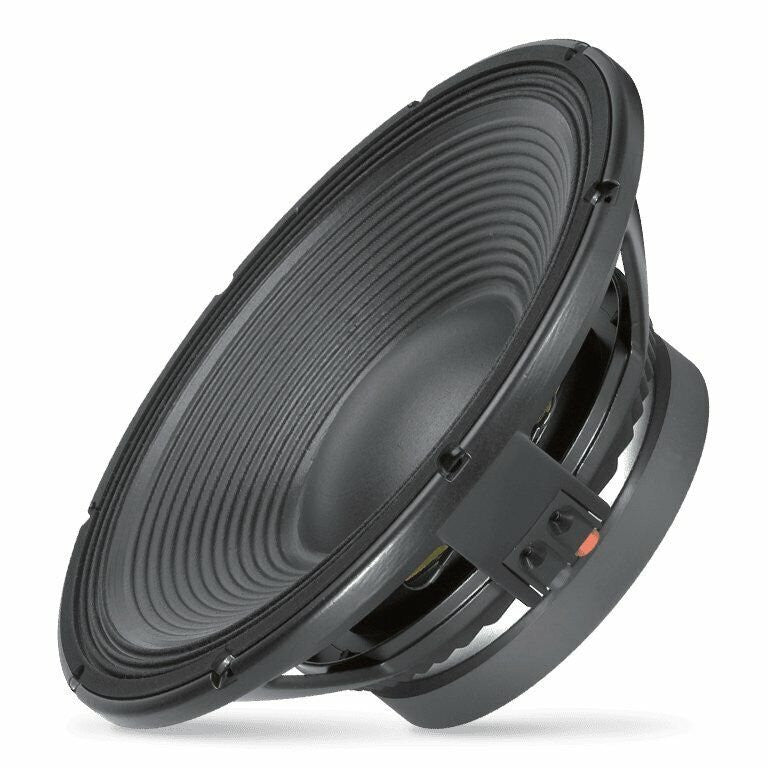

Incredibly linear frequency response characteristics, extreme high power handling while generating the lowest harmonic distortion of any comparable 15-inch transducer within its application range. The L15P400 uses a fibre loaded cone assembly along with a high excursion triple roll surround. This combination provides remarkable strength and a peak to peak maximum excursion of 52mm. The T-pole also features RCF Precision's spaced gap demodulation technology, progressively braking the voice coil, providing a much smoother transition for the moving mass as it reaches its maximum excursion limits. Forced air venting system.
Product Features
4-inch, fiberglass inside/outside copper voice coil
1600W continuous program power handling
97 dB Sensitivity
30 Hz – 1.5 kHz Frequency range
Aluminum demodulation ring
Forced air ventilation and 14mm top plate for minimum power compression
Dual spider design with silicon based dampening control
Triple-roll surround and corrugated straight cone geometry
General Specifications
NOMINAL DIAMETER: 15 inch / 381 mm
RATED IMPEDANCE: 8 ohm
PROGRAM POWER: 1600 W
POWER HANDLING CAPACITY: 800 W
SENSITIVITY: 97.0 dB
FREQUENCY RANGE: 30 - 1500 Hz
EFFECTIVE PISTON DIAMETER: 340 mm / 13.39 inch
MAX. EXCURSION BEFORE DAMAGE: 50 mm / 1.97 inch
MINIMIM IMPEDANCE: 6.3 ohm
VOICE COIL DIAMETER: 4.0 inch / 102 mm
VOICE COIL WINDING MATERIAL: Copper
VOICE COIL LENGTH: 23 mm / 0.91 inch
NUMBER OF LAYERS: 2
KIND OF LAYERS: inside/outside
TOP PLATE THICKNESS: 14 mm / 0.55 inch
CONE DESIGN: Straight
SURROUND MATERIAL: Polycotton
SURROUND DESIGN: Triple roll
MAGNETS: Ceramic
DUAL-FORCE AIR VENTILATION: Yes
SPIDER: Dual with silicon based damping control
