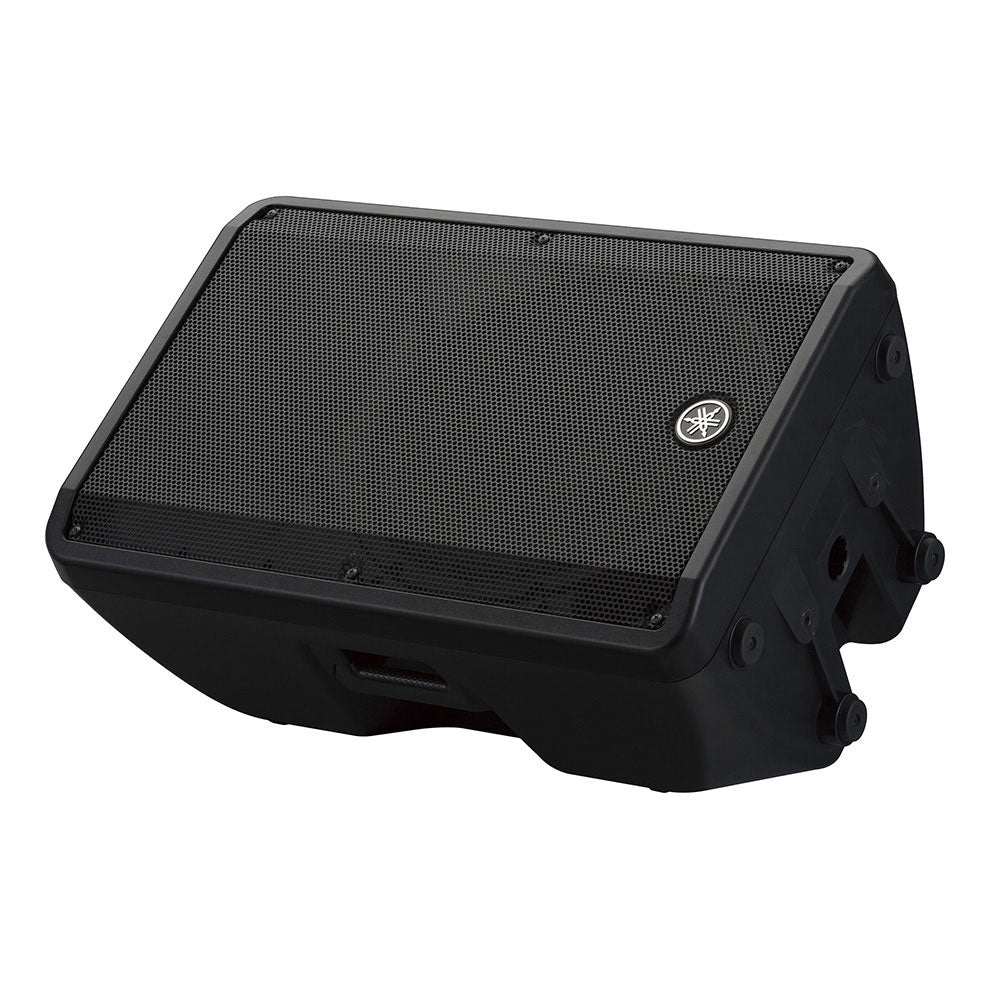

Yamaha DBR15 15" inch 2-Way PA Active Powered Speaker 086792992396 main wedge stage
Yamaha DBR15 15" inch 2-Way PA Active Powered Speaker 086792992396 upright facing right

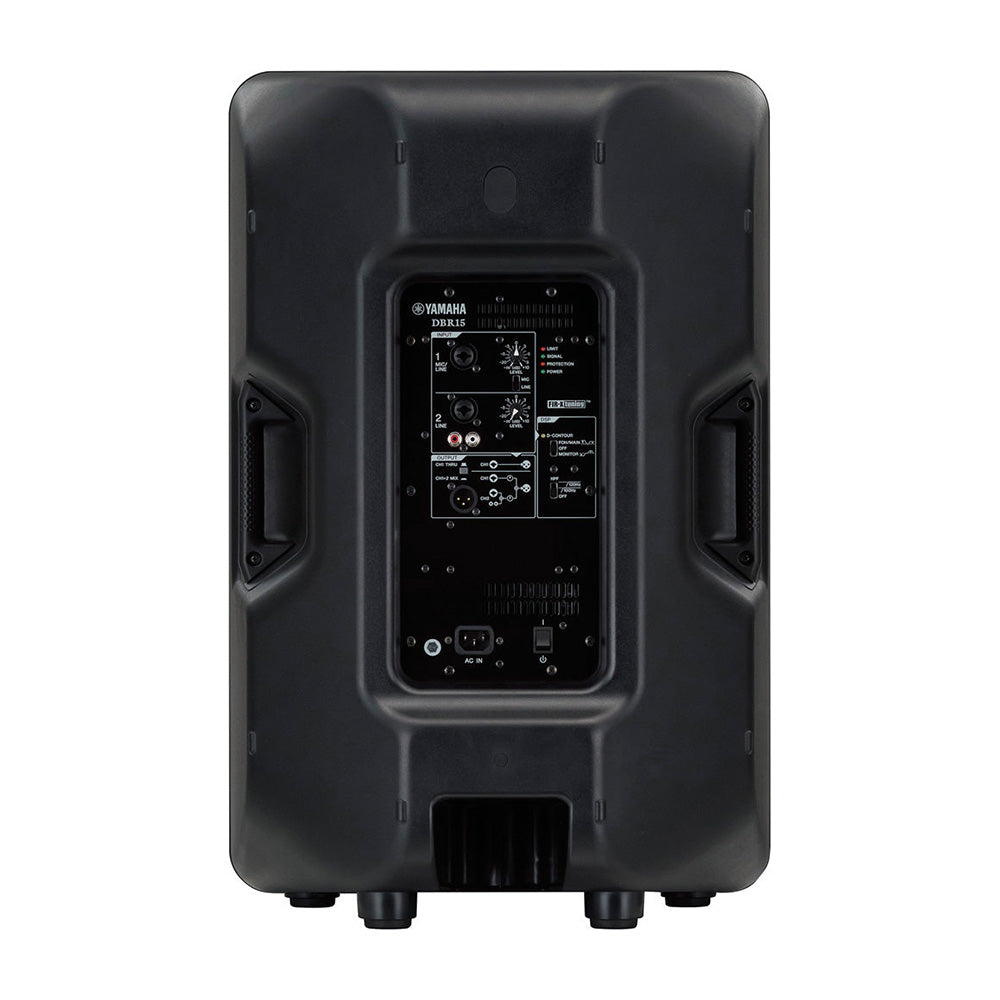

Yamaha DBR15 15" inch 2-Way PA Active Powered Speaker 086792992396 rear back
Yamaha DBR15 15" inch 2-Way PA Active Powered Speaker
Yamaha DBR15 15" inch 2-Way PA Active Powered Speaker
Yamaha DBR15 15" inch 2-Way PA Active Powered Speaker
Yamaha DBR15 15" inch 2-Way PA Active Powered Speaker
Yamaha DBR15 15" inch 2-Way PA Active Powered Speaker

Yamaha DBR15 15" inch 2-Way PA Active Powered Speaker

Regular price
$ 599.99
Sale price
$ 599.99
Unit price
per

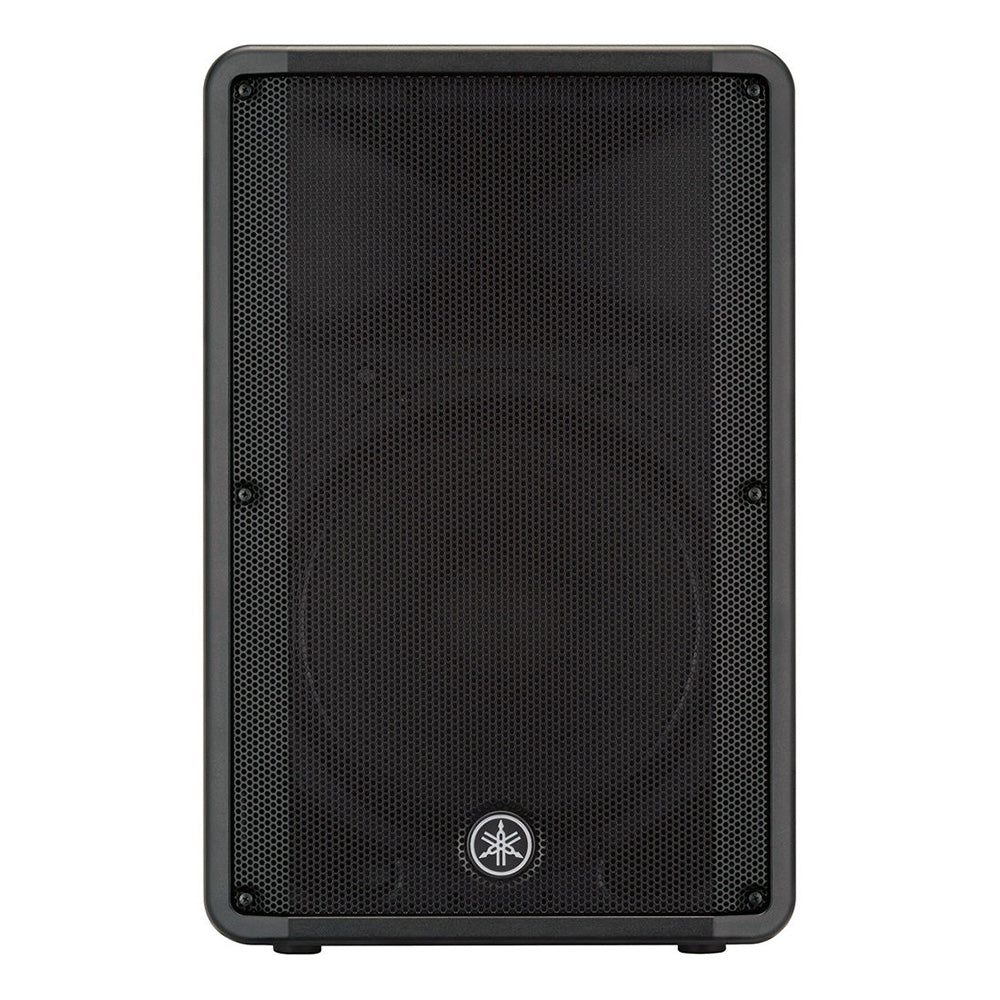

Giving you the flexibility of using it for floor monitoring, front of house, or rigged applications, the DBR15- 15" 2-Way Powered Loudspeaker from Yamaha is capable of up to 1000W of dynamic output via its Class D amplifier. The loudspeaker features a 15" woofer and a 1.25" compression driver and provides a maximum output of 132 dB. An on-board 2-channel mixers allows you to connect microphone or line level sources via 1/4", XLR, and RCA connectors. Thanks to its ergonomic handle and lightweight design the DBR15 is portable and can be easily transported.

High-Efficiency Class D Amplifier
The DBR15's lightweight, high performance Class-D amplifier is capable of producing up to 1000 W of power, achieving an SPL of 132 dB, delivered with clarity and dynamic characteristics
Custom Designed Transducer
The woofer delivers defined, powerful bass with minimal distortion, while the 1.25" precision compression driver produces accurate mid-range and high frequencies
Portable Cabinet
DBR Series speakers feature a compact, lightweight, and durable plastic cabinet which offers the portability of all Yamaha powered speakers. The sleek steel grille bolsters cabinet durability and protects the internal components while an ergonomic handles provide transportation and system setup
Enclosure Design for Floor Monitoring

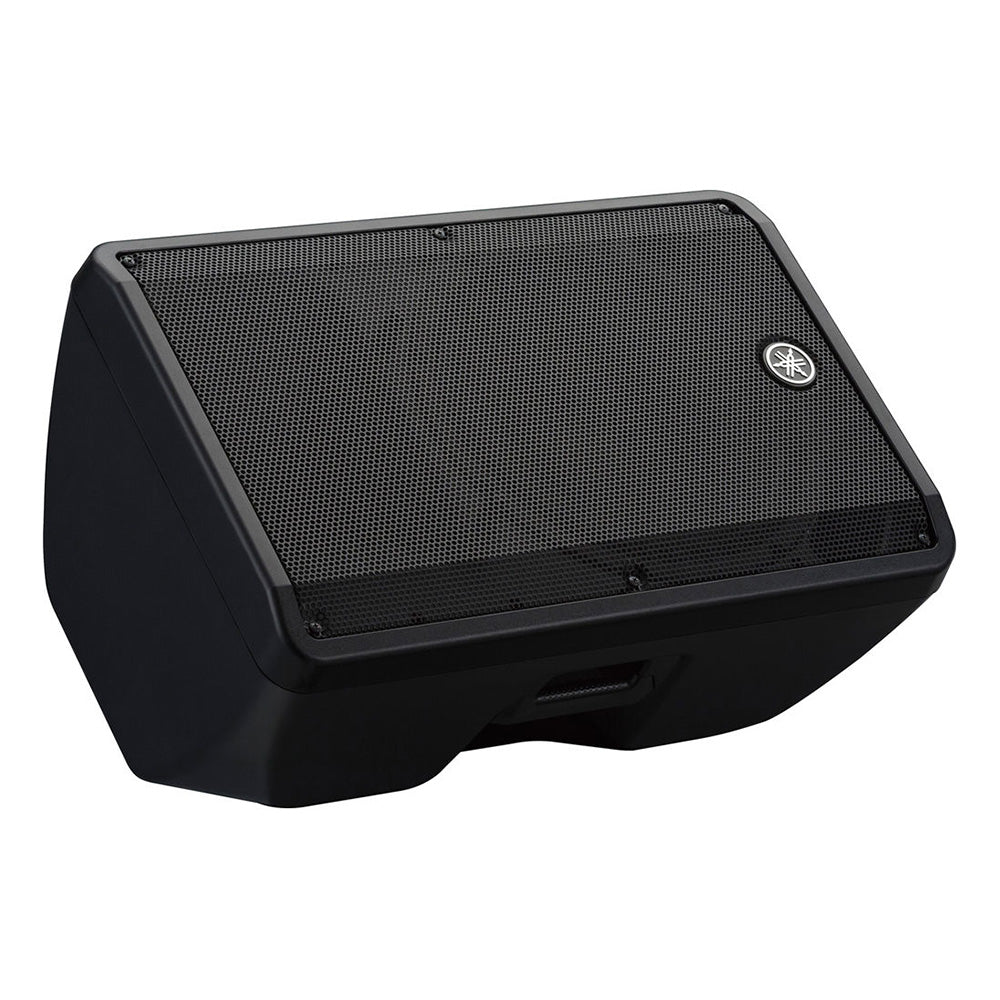

DBR Series speakers feature an optimized 50° wedge angle for floor monitoring
On-Board 2-Channel Mixer
DBR Series speakers have two input channels. Channel 1 has a combo jack which accepts both XLR and TRS Phone allowing for either Mic or Line level input signals. Channel 2 offers two input options; a combo jack that accepts XLR or TRS Phone, and a stereo RCA pin jack for input from CD players or other stereo line-level sources. The onboard mixer allows you to select either Channel 1 + 2 MIX to mix the signal of Channel 1 and Channel 2, or Channel 1 THRU to pass the signal from Channel 1 only
Rigging Points for Installation Applications
DBR loudspeakers come equipped with M8 rigging threads, allowing for rigged applications with optional speaker brackets or standardized eye-bolts


Product Specifications

PA Speaker
Configuration Active 2-Way
Enclosure Type Bass-Reflex Loudspeaker
Total Power Capacity: 1000 W Peak | 465 W RMS
Amplifier Power Rating LF: 800 W Peak | 400 W RMS
HF: 200 W Peak | 65 W RMS

Drivers
HF Driver 1 x 1.4" / 35.6 mm Compression Driver
LF Driver 1 x 15" / 387 mm Woofer
LF Voice Coil 2.5" / 6.35 cm
Magnet HF: Ferrite
LF: Ferrite

Performance
Frequency Range 50 Hz to 20 kHz -10 dB
Maximum SPL 132 dB SPL
Coverage Angle 90° H x 60° V

Connectivity
Audio I/O 2 x Combo XLR-1/4" TRS Input
2 x RCA Unbalanced
1 x XLR 3-Pin Output
Signal Processing
Crossover 2.1 kHz

Power
AC Input Power 100 to 120 VAC, 50 / 60 Hz
Power Consumption 74 W (1/8 Power)
18 W (Idle)

Physical
Mounting 1 x 1.38" / 35 mm Pole Socket (Bottom)
2 x M8 (Bottom)
1 x M8 (Rear)
1 x Pole Socket
Handles 2 x Side
Cooling Fan (Variable Speed)
Construction Material Plastic
Dimensions 17.9 x 27.6 x 14.9" / 455 x 700 x 378 mm
Weight 42.6 lb / 19.3 kg


Packaging Info

Package Weight 53.5 lb
Box Dimensions (LxWxH) 31 x 21 x 19"
