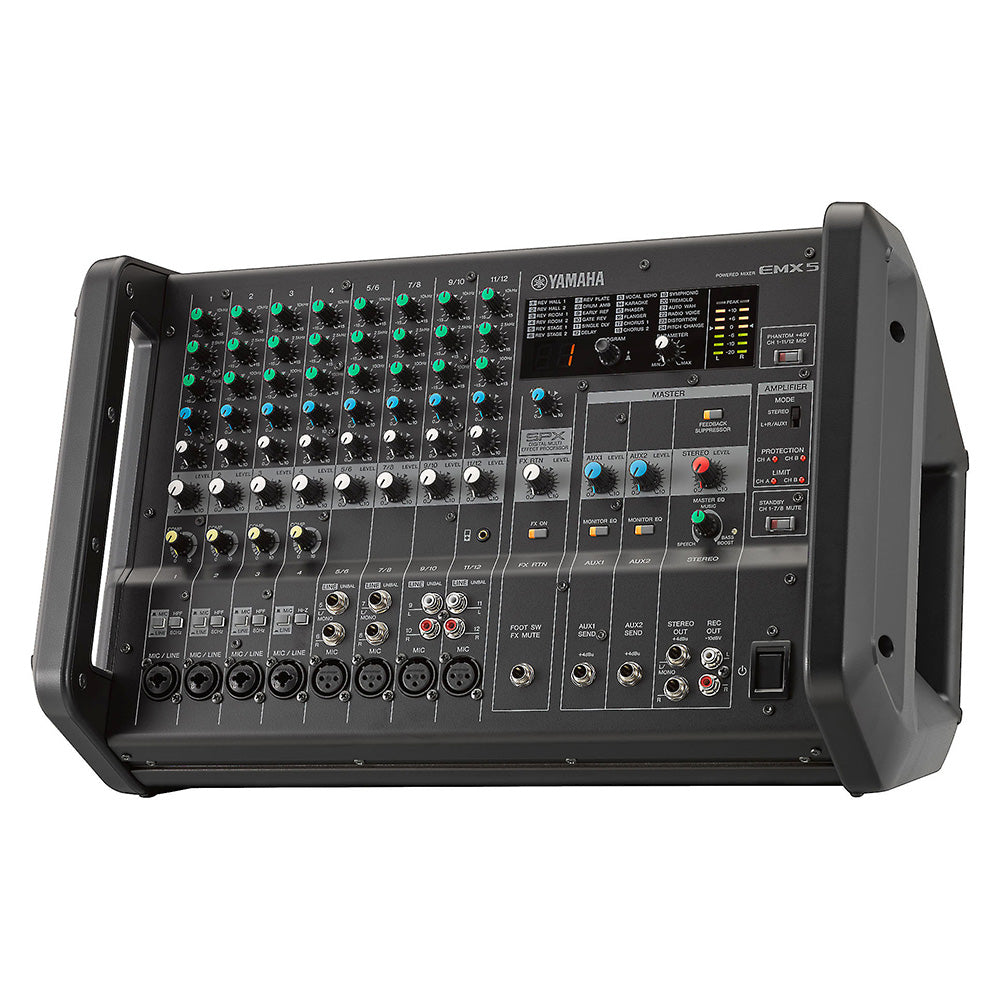

Yamaha EMX5 12-Channel Stereo Powered Mixer Integrated Built-in Amplifier 889025106221 main facing right side profile

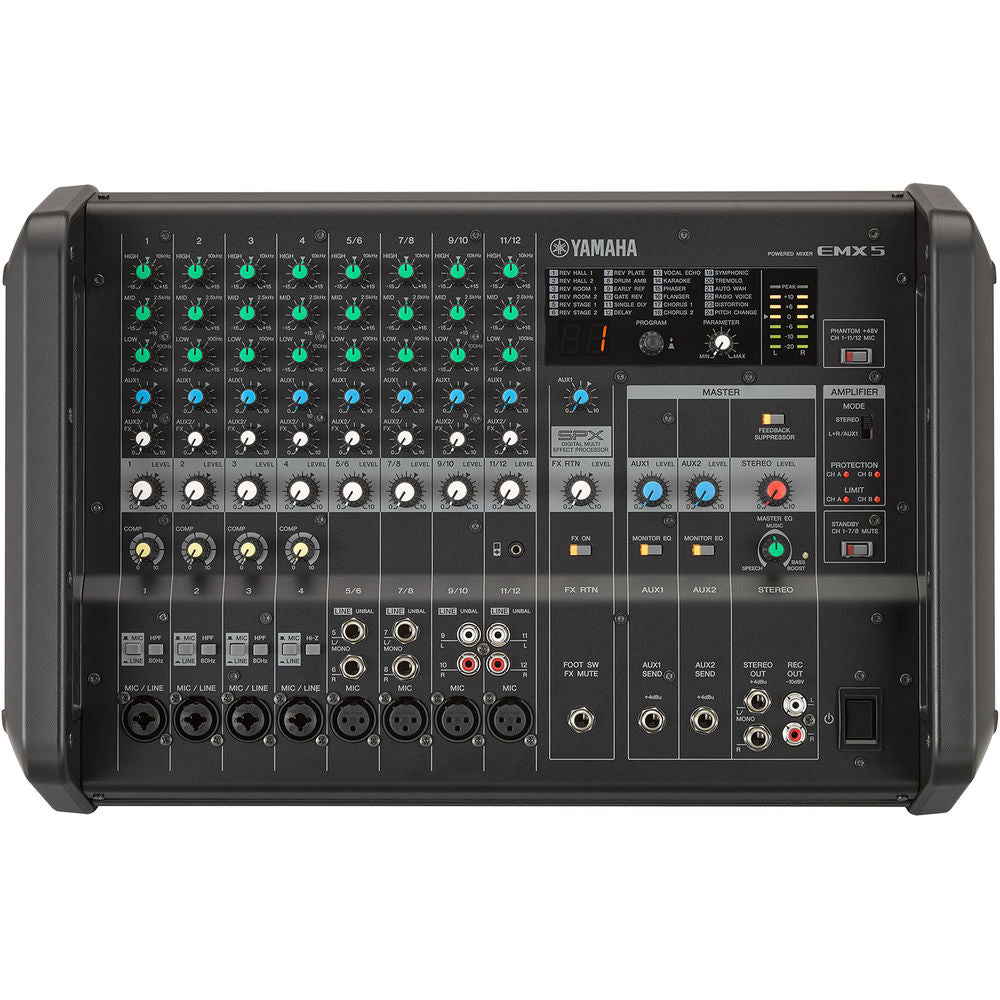

Yamaha EMX5 12-Channel Stereo Powered Mixer Integrated Built-in Amplifier 889025106221 facing front center

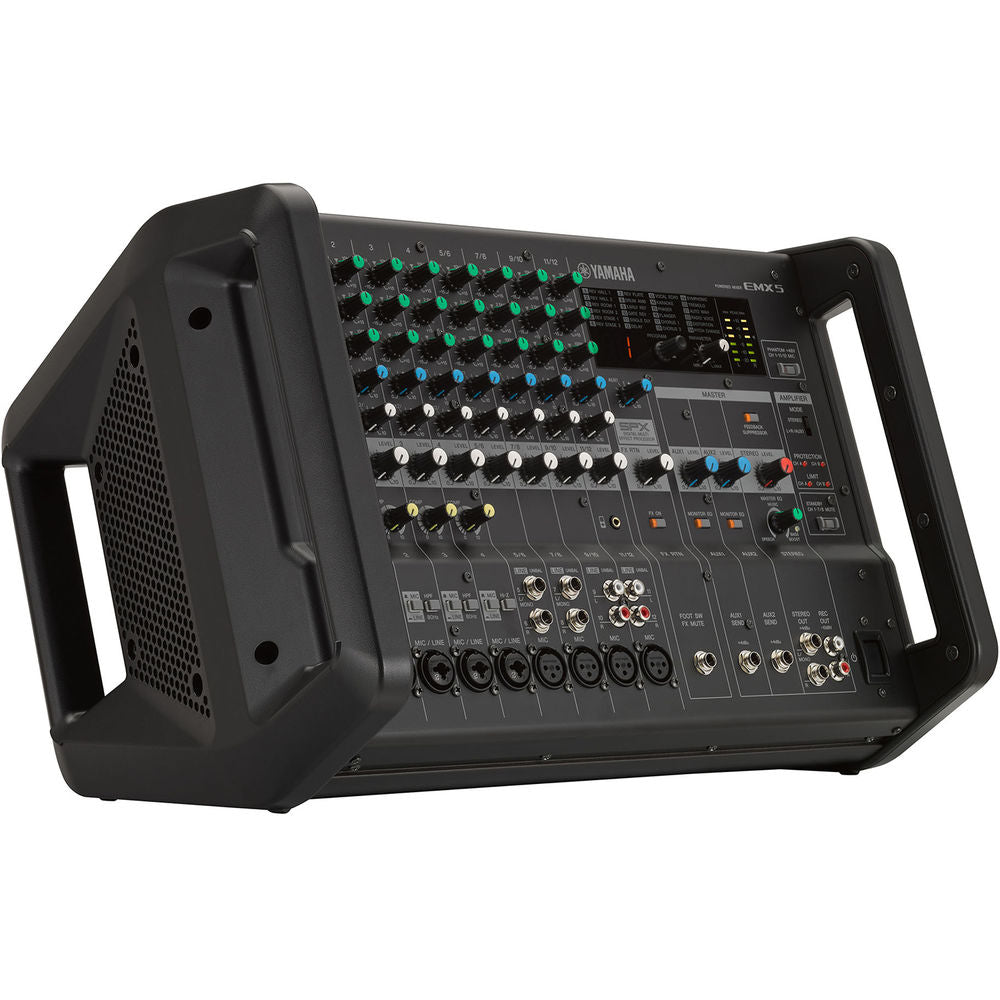

Yamaha EMX5 12-Channel Stereo Powered Mixer Integrated Built-in Amplifier 889025106221 facing left side

Yamaha EMX5 12-Channel Stereo Powered Mixer Integrated Built-in Amplifier

Regular price
Sold out
Sale price
$ 599.99
Unit price
per

The Yamaha EMX 5 is a 12-input powered mixer with an integrated 1260W amplifier, eight mic/line inputs, four stereo line inputs, and two Aux sends. The mixer features a Hi-Z guitar input on channel four and each channel offers a 3-band EQ for custom tailoring your sound. Channels 1-4 offer XLR-1/4" combo jacks. Channels 5 through 12 provide mono XLR inputs, with channels 5-8 offering 1/4" inputs and 9-12 offering an additional set of stereo RCA inputs. Channels 11/12 also include an 1/8" stereo mini-jack for connecting portable music players.

The EMX 5 includes a single knob compressor on channels 1-4, an integrated feedback suppressor, and a built-in multi-effects processor with SPX series algorithms. Additionally, the mixer offers a Master EQ, which provides a single knob to control the level of low end. At the far left, the speech setting cuts low frequencies, while the middle position is neutral for music playback. The far right setting provides a Bass Boost to enhance music playback. Optional accessories available include a foot switch for effects bypass and a rack-mount kit. The EMX 5 ships with a standard IEC power cord.

1260-watt power amplifier for versatility in a wide variety of performance applications
Compatible with 4 Ohm and 8 Ohm speakers
12-channel mixer with four mono mic/line and four mono/stereo line input channels, supporting a wide range of inputs
Channels 1-4 offer a single knob compressor
Channels 1-3 offer an 80 Hz high-pass filter to reduce microphone rumble
Channel 4 offers a Hi-Z input for guitar
Two Aux sends via balanced 1/4" outputs. Aux 2 also sends to internal effects engine
Yamaha’s high-quality SPX multi-effects, providing optimum processing for instruments or vocals
Feedback Suppressor, which automatically cuts and prevents undesirable feedback noise
Independent three-band equalizer on each channel for tonal adjustment and sound control
Master EQ with setting for speech and music playback
Stereo Output: Two balanced 1/4" outputs for connecting to powered speakers or an additional amplifier
Recording Output: Stereo RCA for connecting to a recorder


Product Specifications

Analog Input Characteristics
Input Connectors Channels 1-4: 4x Combo XLR-1/4" / 6.35 mm
Channels 5/6: 1x XLR, 2x 1/4" / 6.35 mm
Channels 7/8: 1x XLR, 2x 1/4" / 6.35 mm
Channels 9/10: 1x XLR, 2x RCA
Channels 11/12: 1x XLR, 2x RCA, 1x 1/8" / 3.5 mm stereo mini-jack
Load Impedance Channels 1-4 (XLR Mic/Line): 3 kOhms actual, 50-600 Ohms nominal with mics
Channels 1-4 (1/4" Mic/Line): 8 kOhms, 600 Ohms line
Channel 4 (1/4", Hi-Z Engaged): 1 MOhms actual, 10 kOhms lines nominal
Channels 5-12 (XLR): 2 kOhms actual, 50 - 600 Ohms lines nominal
Channels 5-12 (1/4", RCA, 1/8"): 10 kOhms actual, 600 Ohms nominal
Input Level Sensitivity
Channel 1-4 (XLR, Mic): -60 dBu (0.775 mV)
Channel 1-4 (XLR, Line): -30 dBu (24.5 mV)
Channel 1-4 (1/4", Mic): -50 dBu (2.45 mV)
Channel 1-4 (1/4", Line): -20 dBu (77.5 mV)
Channel 4 (Hi-Z Engaged, Mic): -50 dBu (2.45 mV)
Channel 4 (Hi-Z Engaged, Line): -20 dBu (77.5 mV)
Channels 5-12 (XLR): -60 dBu (0.775 mV)
Channels 5-8 (1/4"): -20 dBu (77.5 mV)
Channels 9-12 (RCA, 1/8"): -8 dBu (316 mV)

Nominal
Channel 1-4 (XLR, Mic): -43 dBu (5.48 mV)
Channel 1-4 (XLR, Line): -13 dBu (173 mV)
Channel 1-4 (1/4", Mic): -33 dBu (17.3 mV)
Channel 1-4 (1/4", Line): -3 dBu (548 mV)
Channel 4 (Hi-Z Engaged, Mic): -33 dBu (17.3 mV)
Channel 4 (Hi-Z Engaged, Line): -3 dBu (548 mV)
Channels 5-12 (XLR): -43 dBu (5.48 mV)
Channels 5-12 (1/4", RCA, 1/8"): -3 dBu (548 mV)

Maximum Before Clip
Channel 1-4 (XLR, Mic): -15 dBu (138 mV)
Channel 1-4 (XLR, Line): +15 dBu (4.36 V)
Channel 1-4 (1/4", Mic): -5 dBu (436 mV)
Channel 1-4 (1/4", Line): +25 dBu (13.8 V)
Channel 4 (Hi-Z Engaged, Mic): -5 dBu (436 mV)
Channel 4 (Hi-Z Engaged, Line): +20 dBu (7.75 V)
Channels 5-12 (XLR): -15 dBu (138 mV)
Channels 5-12 (1/4", RCA, 1/8"): +25 dBu (13.8 V)

Analog Output Characteristic
Output Connectors Stereo Out (L/R): 2x 1/4" / 6.35 mm balanced
Aux Sends (1/2): 2x 1/4" / 6.35 mm balanced
Rec Out (L/R): 2x RCA unbalanced
Impedance Stereo Out (L/R): 600 Ohms actual, 10 kOhms Lines
Aux Sends (1/2): 600 Ohms actual, 10 kOhms Lines
Rec Out (L/R): 600 Ohms actual, 10 kOhms Lines
Output Level Stereo Out (L/R): +4 dBu (1.228 V) nominal, +20 dBu (7.75 V) max before clipping
Aux Sends (1/2): +4 dBu (1.228 V) nominal, +20 dBu (7.75 V) max before clipping
Rec Out (L/R): -10 dBV (0.308 V) nominal, +18 dBV (7.75 V) max before clipping

Loudspeaker Outputs
Connectors Speakers A/B: Neutrik speakON NL4, 1/4" / 6.35 mm phone jack
Impedance Actual Source Impedance: < 0.1 Ohms
For Use with Nominal: 4 Ohm speakers, 8 Ohm speakers
Output Level 4 Ohm Speakers: 500 W (1 Hz THD+N < 1%), 630 W (1 kHz THD+N < 10% [CEA2006])
8 Ohm Speakers: 370 W (1 Hz THD+N < 1%), 460 W (1 kHz THD+N < 10% [CEA2006])

General Specifications
Output Power 1 kHz THD+N < 10% (CEA2006): 630 W + 630 W (4 Ohms), 460 W + 460 W (8 Ohms)
1 kHz THD+N < 1%: 500 W + 500 W (4 Ohms), 370 W + 370 W (8 Ohms)
Frequency Response Frequency Response Refer to the nominal output level @ 1 kHz
Input to Speakers: +1/-3 dB (40 Hz to 20 kHz)
Input to Stereo Out, Aux 1/2 Send: +0.5/-1.0 dB (20 Hz to 20 kHz)
THD + N Input to Speakers: 0.1% @ 10 W (40 Hz to 20 kHz), 0.05% @ 50 W (1 kHz)
Input to Stereo Out, Aux 1/2 Send: 0.03% @ +14 dBu (20 Hz to 20 kHz), 0.007% @ +20 dBu (1 kHz)
Crosstalk (1 kHz): -85 dB
Input Channels Mono (Mic/Line): 8
Stereo: (Line): 4
Total: 12
Output Channels Speakers: A/B
Aux 1 Send
Aux 2 Send
Stereo Out: L/R
Rec Out: L/R
Bus Stereo: 1
Aux: 2 (including FX)
Pad Channels 1-4: 30 dB
Hi-Z Input Channel 4: Supported
HPF High Pass Filter (Channels 1-3): 80 Hz, -12 dB/octave
EQ Section High: 10 kHz +15/-15 dB
Mid: 2.5 kHz +15/-15 dB
Low: 100 Hz +15/-15 dB
Compressor Single knob compressor
Audio Level Meter 7 points (-20, -10, -6, 0, +6, +10, Peak)
Built-in Effects SPX Algorithm: 24 programs
Output Channel Function Master EQ (Speech to Music)

Monitor EQ
Feedback Suppressor
Phantom Power +48 V
Footswitch Input Effect mute on/off
Protection Load Protection: DC-fault
Amplifier Protection: Overheat protection, overcurrent protection, integral power protection
Power Supply Protection: Overheat protection, overcurrent protection
Power Requirements: 100-240 VAC, 50/60 Hz
Power Consumption: 42 W (Idle) / 210 W (1/8 power)
Operating Temperature 32 to 104°F / 0 to 40°C
Dimensions 18.3 x 12.1 x 12.8" / 464.8 x 307.3 x 325.1 mm
Weight 20.9 lb / 9.5 kg


Packaging Info

Package Weight 25.4 lb
Box Dimensions (LxWxH) 22 x 15 x 14"
